Specifications
PVC Flexible Cable
1.free sample
2.UL,ROHS certificates
3.high quality,low price
PVC Flexible Cable

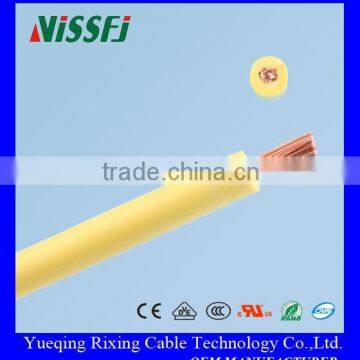

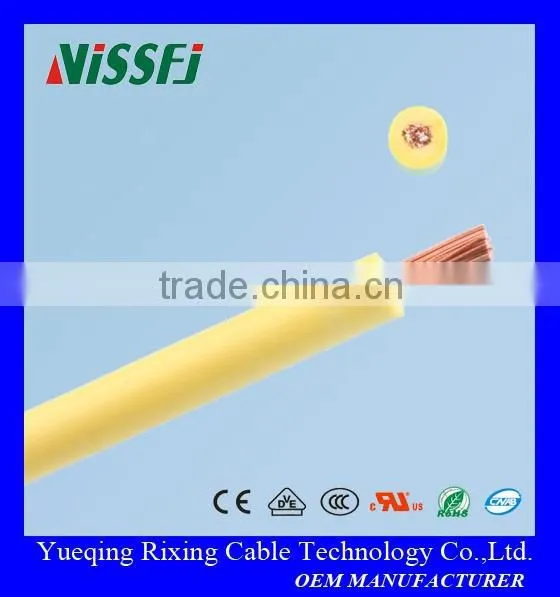

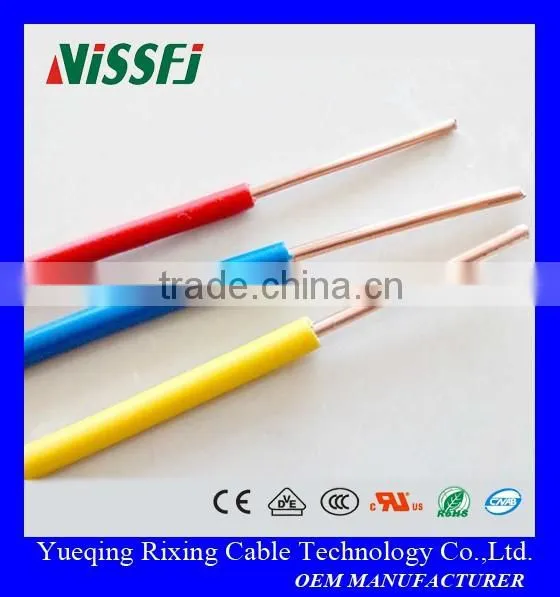

UL Series Certificate PVC/Silicone Rubber Insulate Tinned Copper Conductor Electronic PVC Flexible Cable
Features:
1)Temperature range: -20~80°C
2) Rated voltage: 300V
3) Reference standards: UL 758 UL1581&CSA C22.2 NO.210.2

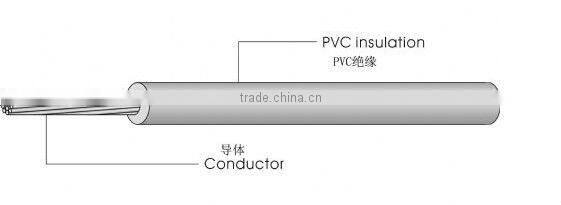

4) A single or stranded of bare or tinned copper conductor
5) PVC insulation
6)Uniform insulation thickness and easy cutting
7)Pass Ul VW-1&CSA FT1 Vertical flame test
8) Application: for internal wiring of appliances,such as electric or electronic equipment .

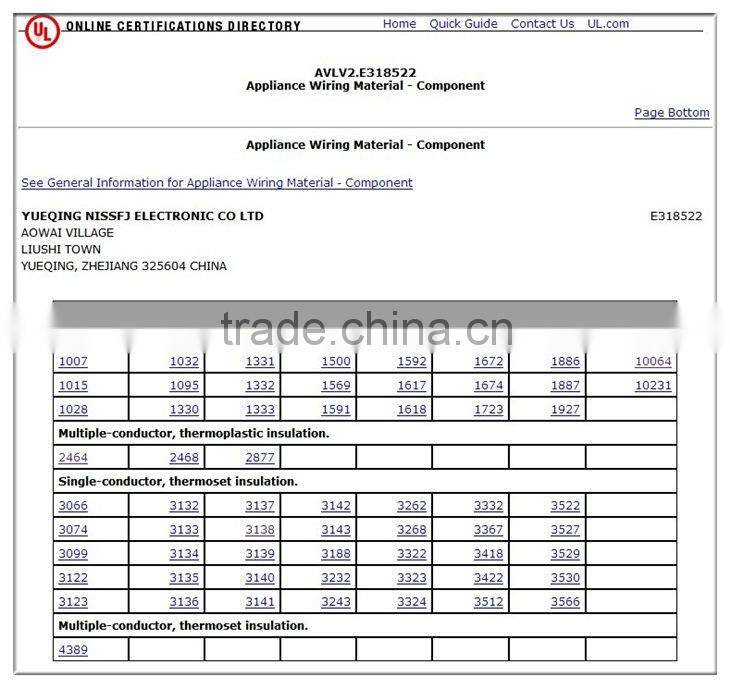

9)UL file NO.:E318522
| Conductor | Insulator | Electrical Characteristic | |||
| AWG | Conductor constructionN×mm | Diameter mm | Insularion Thickness mm | Over Diameter mm | Condutor Resistance 20°C ohm/km |
| 30 | 7/0.10 | 0.30 | 0.38 | 1.10±0.10 | 381.0 |
| 28 | 7/0.127 | 0.38 | 0.38 | 1.15±0.10 | 239.0 |
| 26 | 7/0.16 | 0.48 | 0.38 | 1.25±0.10 | 150.0 |
| 24 | 7/0.20 19/0.12 | 0.61 | 0.38 | 1.40±0.10 | 94.2 |
| 22 | 7/0.254 17/0.16 | 0.76 | 0.38 | 1.55±0.10 | 59.4 |
| 20 | 7/0.32 19/0.19 | 0.96 | 0.38 | 1.80±0.10 | 36.7 |
| 18 | 7/0.40 19/0.235 | 1.20 | 0.38 | 2.00±0.10 | 23.2 |
| 16 | 26/0.254 | 1.50 | 0.38 | 2.30±0.10 | 14.6 |
We can pack the cable as your need. We usually pack as following picture. It can be packed 100m/roll, 305m/roll, or more.
The port of shippment can be Shanghai and Ningbo, or we can deliver the goods to the port you confirm.

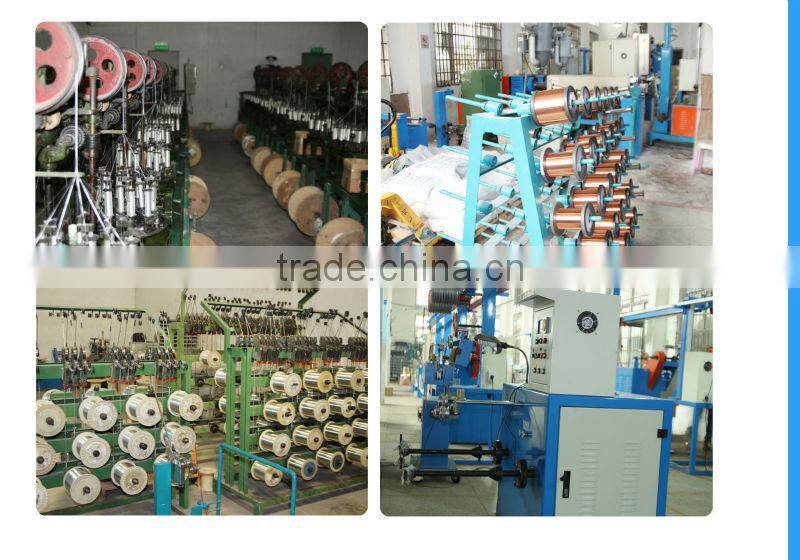

Continuous Innovation and R&D
Good Service and Quick Delivery
Competitive Price with Good quality

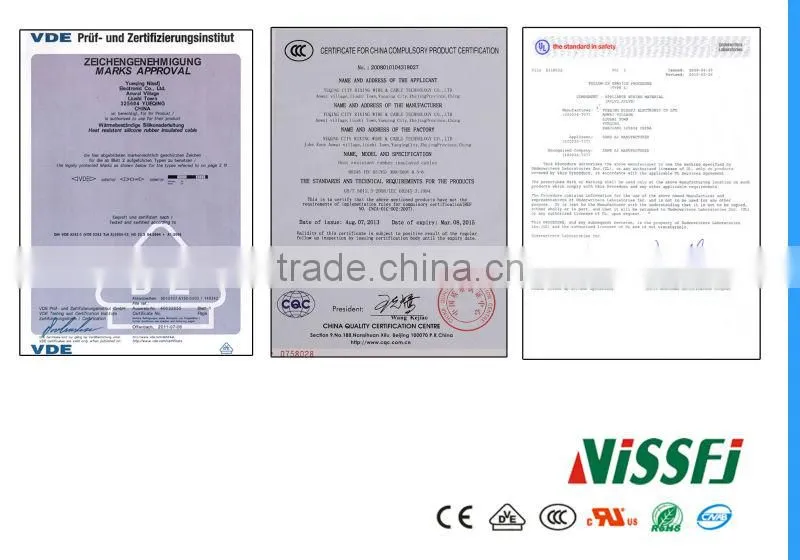

Quality Certification and OEM Accepted
