6mm2 Solar Cable Copper or CCA Core Cables and Wires

Yueqing Rixing Cable Technology Co., Ltd.

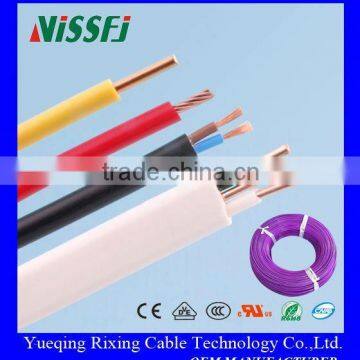

6mm2 Solar Cable Copper or CCA Core Cables and Wires thumbnail-1

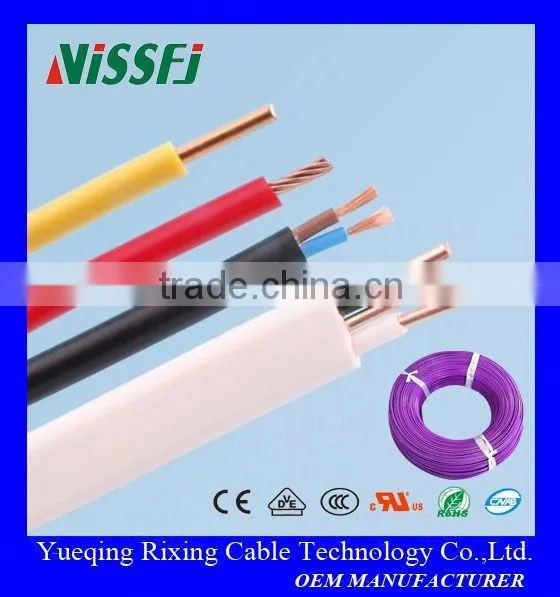

6mm2 Solar Cable Copper or CCA Core Cables and Wires photo-1
Negotiable MOQ: 5000 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
NISSFJ
Model Number:
RX-PC
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name NISSFJ
Model Number RX-PC
Insulation Material PVC
Type Low Voltage
Application Construction
Conductor Material Other, copper or CCA(copper clad aluminum)
Jacket PVC

Specifications

1 6mm2 solar cable
2 ISO,CCC,CB certification
3 Response within 12 hours
4 Free Sample
5 Factory direct sale

6mm2 solar cable Copper or CCA core cables and wires

6mm2 solar cable Copper or CCA core cables and wires Copper or CCA core cables and wires Copper or CCA core cables and wires Copper or CCA core cables and wires

1 Standard

GB 5023.11997 , JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997,  IEC227



2 Voltages U0/U:

450/750V300/500V300/300V.(600/1000V also available)

Max. permissible continuous operating temperature of the conductor: 70
The ambient temperature under installation should not below 0.

Impedance (ohms): 100±2ohm



3 Application

The products is suitable for use in power installations, fixed wiring or flexible

connections for electrical appliances like lighting, electronic equipment, instrument

and communication equipment with rated voltage 450/750V or less



4 Model and Name

Model

Name

BV

Copper Core PVC Insulation Wire

BLV

Aluminum Core PVC Insulation Wire

BVR

Copper Core PVC Insulation Flexible Wire

BVV

Copper Core PVC Insulation PVC Sheath Round Wire

BVVB

Copper Core PVC Insulation PVC Sheath Flat Wire

BLVVB

Aluminum Core PVC Insulation PVC Sheath Flat Wire

BV-90

Copper Core Heat-resistance 105oC PVC Insulation



5 Specification Size and Technical Data

Commen wire

Nominal
sectional area
mm2		Conductor
No/Dia.
mm		Nominal
Insulated thick
mm		Max overall
Dia.
mm		Condcutor
Resistance at
20		Min insulated
resistance at
70MΩ/km		Weight
Kg/km
CuAlCuAl
1.51/1.380.73.312.1-0.01119.2-
1.57/0.520.73.512.1-0.01020.6-
2.51/1.780.83.97.4111.80.01030.815.0
41/2.250.84.44.617.390.008545.521.0
61/2.760.84.93.084.910.007065.029.0
107/1.351.07.01.833.080.0065110.052.0
167/1.701.08.01.151.910.0050170.070.0
257/2.141.210.00.7271.200.0050270.0110.0
357/2.521.211.50.5240.8680.0040364.0150.0
5019/1.781.413.00.3870.6410.0045500.0200.0
7019/2.141.415.00.2680.4430.0035688.0269.0
9519/2.521.617.50.1930.3200.0035953.0360.0
12037/2.031.619.00.1530.2530.00321168.0449.0
15037/2.251.821.00.1240.2060.00321466.0551.0
18537/2.522.032.50.0990.1640.00321808.0668.0

 Flexible wire

Nominal
sectional area
mm2		Conductor
No/Dia.
mm		Nominal
Insulated thick
mm		Max overall
Dia.
mm		Condcutor
Resistance at
20		Min insulated
resistance at
70MΩ/km		Weight
Kg/km
2.59/0.410.84.27.410.01133.0
419/0.520.84.84.610.00948.0
619/0.640.85.63.080.008468.0
1049/0.521.07.61.830.0072115.0
1649/0.641.08.81.150.0062176.0
2598/0.581.211.00.7270.0058272.0
35133/0.581.212.50.5240.0052384.0
50133/0.681.416.50.3870.0051510.0
70189/0.681.416.50.2680.0045714.0
95259/0.681.19.50.1390.0035965.0
120259/0.761.822.00.1530.00321210.0
150259/0.851.825.00.1240.00321510.0



6mm2 solar cable Copper or CCA core cables and wires6mm2 solar cable Copper or CCA core cables and wires6mm2 solar cable Copper or CCA core cables and wires6mm2 solar cable Copper or CCA core cables and wires6mm2 solar cable Copper or CCA core cables and wires
