7 Core Coiled Cable Copper or CCA Core Cables and Wires

7 Core Coiled Cable Copper or CCA Core Cables and Wires thumbnail-1
7 Core Coiled Cable Copper or CCA Core Cables and Wires photo-1
Negotiable MOQ: 5000 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
NISSFJ
Model Number:
RX-PC
Contact Supplier Request Quote Chat Now
Yueqing Rixing Cable Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name NISSFJ
Model Number RX-PC
Insulation Material PVC
Type Low Voltage
Application Construction
Conductor Material Other, copper or CCA(copper clad aluminum)
Jacket PVC

Specifications

1 7 core coiled cable
2 ISO,CCC,CB certification
3 Response within 12 hours
4 Free Sample
5 Factory direct sale

7 core coiled cable Copper or CCA core cables and wires

7 core coiled cable Copper or CCA core cables and wires Copper or CCA core cables and wires Copper or CCA core cables and wires Copper or CCA core cables and wires

1 Standard

GB 5023.11997 , JB 8734.15-1998, Q/ZEL 02-2002, GB 5023.17-1997,  IEC227



2 Voltages U0/U:

450/750V300/500V300/300V.(600/1000V also available)

Max. permissible continuous operating temperature of the conductor: 70
The ambient temperature under installation should not below 0.

Impedance (ohms): 100±2ohm



3 Application

The products is suitable for use in power installations, fixed wiring or flexible

connections for electrical appliances like lighting, electronic equipment, instrument

and communication equipment with rated voltage 450/750V or less

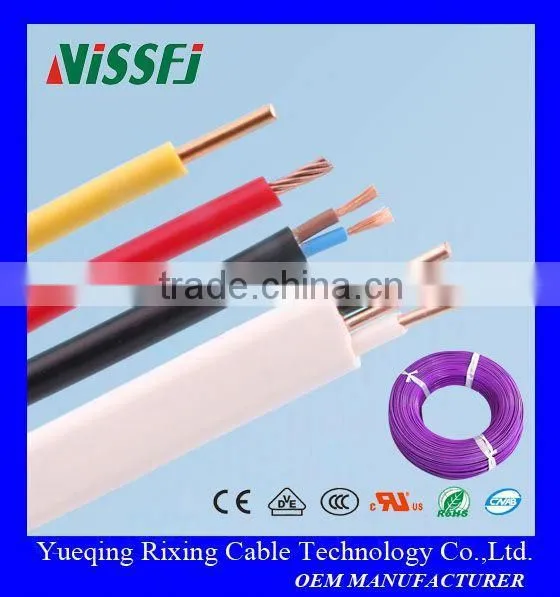

4 Model and Name

Model

Name

BV

Copper Core PVC Insulation Wire

BLV

Aluminum Core PVC Insulation Wire

BVR

Copper Core PVC Insulation Flexible Wire

BVV

Copper Core PVC Insulation PVC Sheath Round Wire

BVVB

Copper Core PVC Insulation PVC Sheath Flat Wire

BLVVB

Aluminum Core PVC Insulation PVC Sheath Flat Wire

BV-90

Copper Core Heat-resistance 105oC PVC Insulation



5 Specification Size and Technical Data

Commen wire

Nominal
sectional area
mm2 		Conductor
No/Dia.
mm		 Nominal
Insulated thick
mm		 Max overall
Dia.
mm		 Condcutor
Resistance at
20		 Min insulated
resistance at
70MΩ/km		 Weight
Kg/km
Cu Al Cu Al
1.5 1/1.38 0.7 3.3 12.1 - 0.011 19.2 -
1.5 7/0.52 0.7 3.5 12.1 - 0.010 20.6 -
2.5 1/1.78 0.8 3.9 7.41 11.8 0.010 30.8 15.0
4 1/2.25 0.8 4.4 4.61 7.39 0.0085 45.5 21.0
6 1/2.76 0.8 4.9 3.08 4.91 0.0070 65.0 29.0
10 7/1.35 1.0 7.0 1.83 3.08 0.0065 110.0 52.0
16 7/1.70 1.0 8.0 1.15 1.91 0.0050 170.0 70.0
25 7/2.14 1.2 10.0 0.727 1.20 0.0050 270.0 110.0
35 7/2.52 1.2 11.5 0.524 0.868 0.0040 364.0 150.0
50 19/1.78 1.4 13.0 0.387 0.641 0.0045 500.0 200.0
70 19/2.14 1.4 15.0 0.268 0.443 0.0035 688.0 269.0
95 19/2.52 1.6 17.5 0.193 0.320 0.0035 953.0 360.0
120 37/2.03 1.6 19.0 0.153 0.253 0.0032 1168.0 449.0
150 37/2.25 1.8 21.0 0.124 0.206 0.0032 1466.0 551.0
185 37/2.52 2.0 32.5 0.099 0.164 0.0032 1808.0 668.0

 Flexible wire

Nominal
sectional area
mm2 		Conductor
No/Dia.
mm		 Nominal
Insulated thick
mm		 Max overall
Dia.
mm		 Condcutor
Resistance at
20		 Min insulated
resistance at
70MΩ/km		 Weight
Kg/km
2.5 9/0.41 0.8 4.2 7.41 0.011 33.0
4 19/0.52 0.8 4.8 4.61 0.009 48.0
6 19/0.64 0.8 5.6 3.08 0.0084 68.0
10 49/0.52 1.0 7.6 1.83 0.0072 115.0
16 49/0.64 1.0 8.8 1.15 0.0062 176.0
25 98/0.58 1.2 11.0 0.727 0.0058 272.0
35 133/0.58 1.2 12.5 0.524 0.0052 384.0
50 133/0.68 1.4 16.5 0.387 0.0051 510.0
70 189/0.68 1.4 16.5 0.268 0.0045 714.0
95 259/0.68 1. 19.5 0.139 0.0035 965.0
120 259/0.76 1.8 22.0 0.153 0.0032 1210.0
150 259/0.85 1.8 25.0 0.124 0.0032 1510.0



7 core coiled cable Copper or CCA core cables and wires7 core coiled cable Copper or CCA core cables and wires7 core coiled cable Copper or CCA core cables and wires7 core coiled cable Copper or CCA core cables and wires7 core coiled cable Copper or CCA core cables and wires
