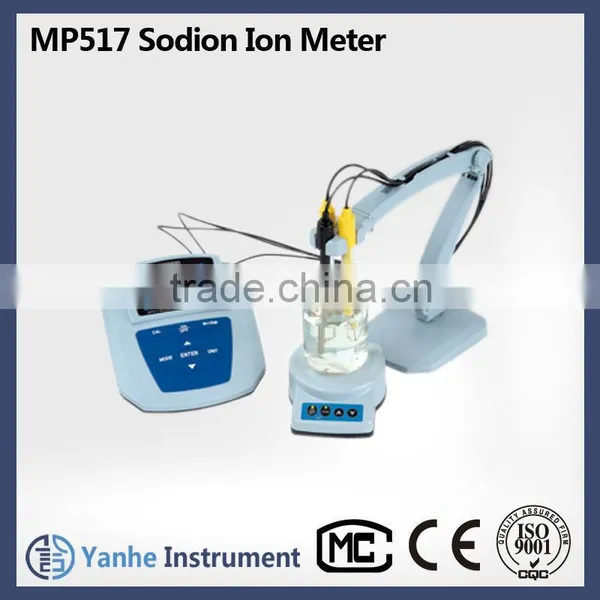

MP517 bench top ion concentration meter sodium meter negative ion tester ion analyzer Quality Choice

Name: MP517 bench top ion concentration meter sodium meter negative ion tester ion analyzer Quality Choice
Brand: YANHE
Price: USD $558 - 621 / Set

FOB Price

USD $558 - $621 / Set

1 Set(Min.Order)

Supply Ability 25 Set / Sets per Month
Port shanghai
Payment Terms:Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Shanghai, China

Brand Name:

YANHE

Model Number:

MP517

Product Description

Specifications

Sodium Ion:	Measuring range	Meter:(0.00 to 9.00) pNa,connect meter with electrode:(1.00 to 8.00) pNa
	Display unit	pNa, mol/L, mg/L, ppm
	Accuracy	±0.01 pNa
	Input current	≤2×10-12 A
	Input impedance	≥1×1012 Ω
	Stability	±0.01 pNa/3h
	Temp. compensation range	(0 to 50)℃ (automatic or manual)
mV:	Measuring range	-1999.9 mV to 0 to 1999.9mV
	Resolution	0.1mV
	Accuracy	±0.1% FS

Temperature:	Measuring range	-10℃to 110℃
	Resolution	0.1℃
	Accuracy	(5 to 60)℃range:±0.5℃ other range:±1.0℃
Other Technical Parameters:	Data storage	600 groups
	Storage content	Measuring value serial number, measuring value, temperature, ATC or MTC state,
	Storage content	measuring date and time
	Power	DC9V/300mA
	Communication connector	RS-232
	Size and weight	160 x 190 x 70mm/880g
	Quality and safety certification	ISO9001:2000, CE and CMC
Working Condition:	Environment temperature	(5 to 35) ℃
	Environmental humidity	≤85%
	IP rating	IP54 Dustproof and waterproof

Introduction

Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc.

There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode.

Sodium electrode range : 1~7 pNa (10-1~10-7 mol/L)

Equips sodion electrode, reference electrode and temperature electrode.

Can switch 4 kinds of concentration unit : pX, mol/L, mg/L and ppm

Meter has the only product serial number.

Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps.

Standard Kit Includes

1. Model MP517 sodium ion concentration meter	1set
2. Model 602 flexible electrode holder	1pc
3. Model 901 intelligent stirrer	1set
4. B628 stir bead	3pc
5. Model 6801 sodium ion electrode	1pc
6. Model 6212-M reference electrode	1pc
7. Model MP500 temperature electrode	1pc
8. pNa1.00 standard solution (100 mL)	2 btls
9. 10-1 mol/L CsCl reference solution (30mL)	1pc
10. 9V power adapter (meter use)	1 pc
11. 16V power adapter (stirrer use)	1 pc
12. AA battery	4 units
13. RS-232 communication cable	1pc
14. MP517 communication software CD	1 unit
15. Operation manual	1 unit
16. Brief operation instruction	1unit
17. Packing List	1pcs

Optional Accessories

Accessory Categry	Description	Specifications
Ion electrode
	7801 Sodium ion electrode	Used to test the concentration of sodium ion,BNC plug
	CA501 Calcium composite electrode	used for testing Calcium concentration,BNC plug
	Calcium electrode probe	Used with CA501 electrode
	F502 Fluoride electrode	Used to test Fluoride concentration,BNC plug
	CL502 Chloride electrode	Used to test the concentration of chloride ion,BNC plug
	BR502 Bromide electrode	Used to test the concentration of bromide ion,BNC plug
	I502 Iodide Electrode	Used to test the concentration of iodide ion,BNC plug
	CU502 Copper electrode	Used to test the copper concentration,BNC plug
	K502 Potassium electrode	Used to test the concentration of potassium ion,BNC plug
	NO502 Nitrate electrode	Used to test the concentration of nitrate ion,BNC plug
	NH501 Ammonia electrode	Used to test the ammonia concentration,BNC plug
Reference Electrode	6211 Reference electrode	Suitable for routine measurements, banana plugs.
	6212 Reference electrode	Equipped with the 7801 sodium ion electrode, banana plugs
	6213 Reference electrode	The first and second salt bridge solution can be chosen, for all measurement occasions, banana plugs.
	6215 Reference electrode	Most ion electrode for supporting the use, banana plugs
Temperature Electrode	MP500 Temperature electrode	Stainless steel housing, fast response, high accuracy, RCA plugs
Ion standard solution	10^-1mol/L Na+ Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L Ca2+ Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L F- Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L Cl- Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L Br- Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L I- Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L K+ Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L Cu2+ Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L Ammonium ion Standard Solution	500mL/250mL/100mL(bottle)
	10^-1mol/L NO3 Standard Solution	500mL/250mL/100mL(bottle)
Electrode soaking	pH(ORP)Combination Electrode Soaking Solution	500mL/250mL/100mL(bottle)
Electrode soaking	10^-5mol/L Sodium ion electrode soaking Solution	Equipped with 7801Sodium electrode . 500mL/250mL/100mL(bottle)
Electrode add liquid	3.5mol/L KCl(AgClSaturated) reference solution	250mL/50mL/30mL(bottle)
	1mol/LPotassium nitrate (KNO3) reference solution	For chlorine, bromine, iodine and copper ion test, and equipped with 6215 reference electrode, 250mL/100mL/30mL(bottle)
	1mol/L Sodium chloride (NaCl) reference solution	Test for potassium, and equipped with 6215 reference electrode,250mL/100mL/30mL(bottle)
	0.1mol/L Cesium chloride (CsCl) reference solution	Test for sodium,and equipped with 6212 reference electrode,250mL/100mL/30mL(bottle)
	Ammonia electrode inner solution	Test for ammonium ion, and equipped with NH501 ammonia electrode,250mL/100mL/30mL (bottle)
	Calciumelectrode inner solution	equipped with CA501 Calcium electrode, 250mL/100mL/30mL(bottle)
Electrode add liquid	3.5mol/L KCl(AgClSaturated) reference solution	500mL/250mL/100mL(bottle)
	1mol/LPotassium nitrate (KNO3) reference solution	For chlorine, bromine, iodine and copper ion test, and equipped with 6215 reference electrode, 250mL/100mL/30mL(bottle)
	1mol/L Sodium chloride (NaCl) reference solution	Test for potassium, and equipped with 6215 reference electrode,250mL/100mL/30mL(bottle)
	0.1mol/L Cesium chloride (CsCl) reference solution	Test for sodium,and equipped with 6212 reference electrode,250mL/100mL/30mL(bottle)
	Ammonia electrode inner solution	Test for ammonium ion, and equipped with NH501 ammonia electrode ,250mL/100mL/30mL(bottle)
	Calcium electrode inner solution	equipped with CA501 Calcium electrode, 250mL/100mL/30mL(bottle)
Electrode holder	Model 602 Flexible Electrode Holder	Nice appearance of the arc-type bracket, you can turn 360 degrees and vertical lift
	Model 601Stirring Type Electrode Holder	The electrode holder and magnetic stirrer combination of new products.
	Model 600 Electrode Holder	Cheap simple electrode holder

Contact Us

Shanghai Yanhe Instrument Equipment Co., Ltd.: Contact nameLisa Zhou; Phone86-021-69972057; Address4/F, No. 56, Lane 300, Shunda Road
