Home > Instruments & Meters > Analysis Instrument > pH Meter > MP518 Bench Top Calcium Ion Meter Water Quality Tester

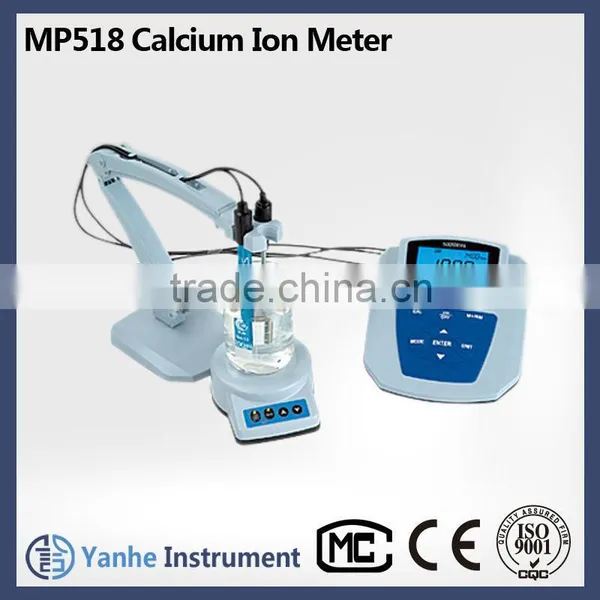

MP518 Bench Top Calcium Ion Meter Water Quality Tester
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
YANHE
Model Number:
MP518
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MP519 Bench Fluorine Ion Meter Water Quality Analysis Laboratory Meter Quality ChoiceUS$ 520 - 575MOQ: 1 Set -
MP521 Bench Lab PH/Conductivity Meter PH/mV/Conductivity/TempNegotiableMOQ: 1 Set
-
MP522 Bench Top Precision PH/Conductivity/mV/Temp Meter ph ec MeterUS$ 720 - 800MOQ: 1 Set
-
MP523 Bench Lab PH/ISE/Ion Meter Conventional Ion Tester PriceUS$ 630 - 740MOQ: 1 Set
-
MP525 Digital Benchtop PH/DO Meter Laboratory Precision Dissolved Oxygen MeasurementUS$ 645 - 695MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
YANHE
Model Number
MP518
Specifications:
| Calcium Ion | Measuring range | Meter:(0.00 to 9.00) pCa,connect meter with electrode:(1.00 to 7.00) pCa |
| Display unit | pCa, mol/L, mg/L, ppm | |
| Accuracy | ±0.01 pCa | |
| Input current | ≤2×10-12 A | |
| Input impedance | ≥1×1012 Ω | |
| Stability | ±0.01 pCa/3h | |
| Temp. compensation range | (0 to 50) ℃ ( automatic or manual ) | |
| mV | Measuring range | -1999.9 mV to 0 to 1999.9mV |
| Resolution | 0.1mV | |
| Accuracy | ±0.1% FS | |
| Temperature | Measuring range | -10℃to 110℃ |
| Resolution | 0.1℃ | |
| Accuracy | (5 to 60)℃ range:±0.5℃ other range:±1.0℃ | |
| Other Technical Parameters | Data storage | 600 groups |
| Storage content | Measuring value serial number, measuring value, temperature, ATC or MTC state, measuring date and time | |
| Power | DC9V/300mA | |
| Communication connector | RS-232 | |
| Size and weight | 160 × 190 × 70mm/880g | |
| Quality and safety certification | ISO9001:2000, CE and CMC | |
| Working Condition | Environment temperature | (5 to 35) ℃ |
| Environmental humidity | ≤85% | |
| IP rating | IP54 Dustproof and waterproof |
| Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc. |
| There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode. |
| Calcium electrode range : 1~5 pCa (10-1~10-5 mol/L) |
| Equips Calcium ion combination electrode, and temperature electrode. |
| Can switch 4 kinds of concentration unit : pX, mol/L, mg/L and ppm |
| Meter has the only product serial number. |
| Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps. |
| 1. Model MP518 calcium ion concentration meter | 1set |
| 2. Model 602 flexible electrode holder | 1unit |
| 3. Model 901 intelligent stirrer | 1unit |
| 4. B628 stir bead | 3 pcs |
| 5. Model CA501 calcium ion combination electrode | 1 pc |
| 6. CA502 calcium electrode inner solution (30mL) | 1 btl |
| 7. CA503 calcium electrode measuring head | 2pc |
| 8. Tool for filling calcium electrode inner solution | 2 units |
| 9. Model MP500 temperature electrode | 1pc |
| 10. pCa 1.00 standard solution (100mL) | 2 btls |
| 11. 9V power adapter (meter use) | 1 pc |
| 12. 6V power adapter (stirrer use) | 1 pc |
| 13. AA battery | 4 units |
| 14. RS-232 communication cable | 1pc |
| 15. MP518 communication software CD | 1 unit |
| 16. Operation manual | 1 unit |
| 17. Brief operation instruction | 1unit |
| 18. Packing List | 1pcs |
Accessory Categry |
Description |
Specifications |
Ion electrode | ||
7801 Sodium ion electrode |
Used to test the concentration of sodium ion,BNC plug |
|
CA501 Calcium composite electrode |
used for testing Calcium concentration,BNC plug |
|
Calcium electrode probe |
Used with CA501 electrode |
|
F502 Fluoride electrode |
Used to test Fluoride concentration,BNC plug |
|
CL502 Chloride electrode |
Used to test the concentration of chloride ion,BNC plug |
|
BR502 Bromide electrode |
Used to test the concentration of bromide ion,BNC plug |
|
I502 Iodide Electrode |
Used to test the concentration of iodide ion,BNC plug |
|
CU502 Copper electrode |
Used to test the copper concentration,BNC plug |
|
K502 Potassium electrode |
Used to test the concentration of potassium ion,BNC plug |
|
NO502 Nitrate electrode |
Used to test the concentration of nitrate ion,BNC plug |
|
NH501 Ammonia electrode |
Used to test the ammonia concentration,BNC plug |
|
Reference Electrode |
6211 Reference electrode |
Suitable for routine measurements, banana plugs. |
6212 Reference electrode |
Equipped with the 7801 sodium ion electrode, banana plugs |
|
6213 Reference electrode |
The first and second salt bridge solution can be chosen, for all measurement occasions, banana plugs. |
|
6215 Reference electrode |
Most ion electrode for supporting the use, banana plugs |
|
Temperature Electrode |
MP500 Temperature electrode |
Stainless steel housing, fast response, high accuracy, RCA plugs |
|
Ion standard solution
|
10-1 mol/L Na+ Standard Solution |
500mL/250mL/100mL(bottle) |
10-1 mol/L Ca2+ Standard Solution |
500mL/250mL/100mL(bottle) |
|
10-1 mol/L F- Standard Solution |
500mL/250mL/100mL(bottle) |
|
10-1 mol/L Cl- Standard Solution |
500mL/250mL/100mL(bottle) |
|
10-1 mol/L Br- Standard Solution |
500mL/250mL/100mL(bottle) |
|
10-1 mol/L I- Standard Solution |
500mL/250mL/100mL(bottle) |
|
10-1 mol/L K+ Standard Solution |
500mL/250mL/100mL(bottle) |
|
10-1 mol/L Cu2+ Standard Solution |
500mL/250mL/100mL(bottle) |
|
10-1 mol/L Ammonium ion Standard Solution |
500mL/250mL/100mL(bottle) |
|
10-1 mol/L NO3 Standard Solution |
500mL/250mL/100mL(bottle) |
|
Electrode soaking |
pH(ORP)Combination Electrode Soaking Solution |
500mL/250mL/100mL(bottle) |
10-5 mol/L Sodium ion electrode soaking Solution |
Equipped with 7801Sodium electrode . 500mL/250mL/100mL(bottle) |
|
Electrode add liquid |
3.5mol/L KCl(AgClSaturated) reference solution |
250mL/50mL/30mL(bottle) |
1mol/LPotassium nitrate (KNO3) reference solution |
For chlorine, bromine, iodine and copper ion test, and equipped with 6215 reference electrode, 250mL/100mL/30mL(bottle) |
|
1mol/L Sodium chloride (NaCl) reference solution |
Test for potassium, and equipped with 6215 reference electrode,250mL/100mL/30mL(bottle) |
|
0.1mol/L Cesium chloride (CsCl) reference solution |
Test for sodium,and equipped with 6212 reference electrode,250mL/100mL/30mL(bottle) |
|
Ammonia electrode inner solution |
Test for ammonium ion, and equipped with NH501 ammonia electrode,250mL/100mL/30mL (bottle) |
|
Calciumelectrode inner solution |
equipped with CA501 Calcium electrode, 250mL/100mL/30mL(bottle) |
|
Electrode add liquid |
3.5mol/L KCl(AgClSaturated) reference solution |
500mL/250mL/100mL(bottle) |
1mol/LPotassium nitrate (KNO3) reference solution |
For chlorine, bromine, iodine and copper ion test, and equipped with 6215 reference electrode, 250mL/100mL/30mL(bottle) |
|
1mol/L Sodium chloride (NaCl) reference solution |
Test for potassium, and equipped with 6215 reference electrode,250mL/100mL/30mL(bottle) |
|
0.1mol/L Cesium chloride (CsCl) reference solution |
Test for sodium,and equipped with 6212 reference electrode,250mL/100mL/30mL(bottle) |
|
Ammonia electrode inner solution |
Test for ammonium ion, and equipped with NH501 ammonia electrode ,250mL/100mL/30mL(bottle) |
|
Calcium electrode inner solution |
equipped with CA501 Calcium electrode, 250mL/100mL/30mL(bottle) |
|
Electrode holder |
Model 602 Flexible Electrode Holder |
Nice appearance of the arc-type bracket, you can turn 360 degrees and vertical lift |
Model 601Stirring Type Electrode Holder |
The electrode holder and magnetic stirrer combination of new products. |
|
Model 600 Electrode Holder |
Cheap simple electrode holder |
