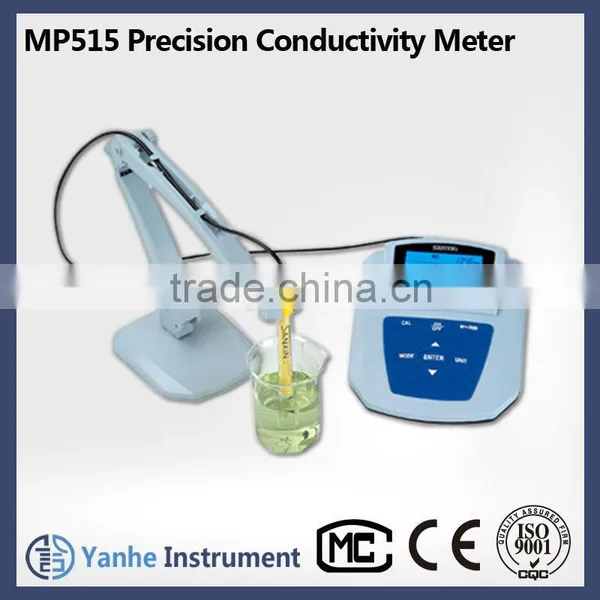

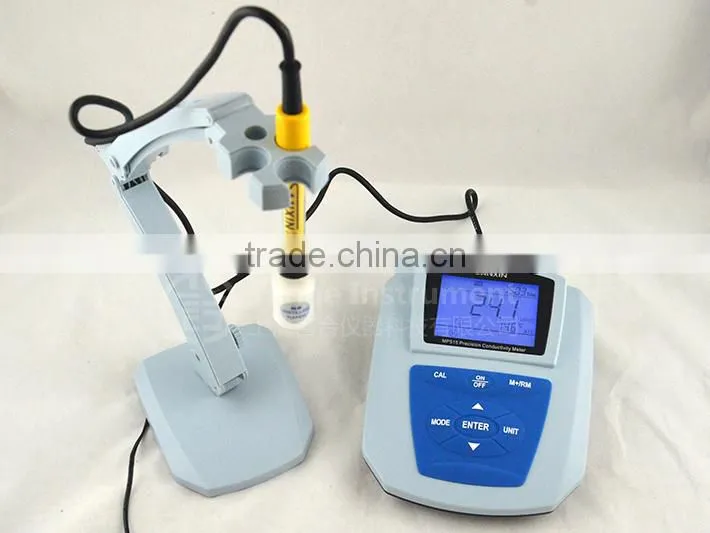

MP515 Bench Top Conductivity/TDS/Salinity/Resistivity Meter Electrical Resistivity Measuring Instruments
US$ 480 - 600
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
YANHE
Model Number:
MP515
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MP516 Bench Dissolved Oxygen Meter ( do Meter )US$ 515 - 583MOQ: 1 Set -
MP517 Bench Top Ion Concentration Meter Sodium Meter Negative Ion Tester Ion Analyzer Quality ChoiceUS$ 558 - 621MOQ: 1 Set
-
MP518 Bench Top Calcium Ion Meter Water Quality TesterNegotiableMOQ: 1 Set
-
MP519 Bench Fluorine Ion Meter Water Quality Analysis Laboratory Meter Quality ChoiceUS$ 520 - 575MOQ: 1 Set
-
MP521 Bench Lab PH/Conductivity Meter PH/mV/Conductivity/TempNegotiableMOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
YANHE
Model Number
MP515
Suitable for high precision conductivity measurement of science research,quality control, biotechnology and fine chemistry industry ,etc.
| 0.5 rating precision conductivity meter, suitable for high precision conductivity measurement of science research and quality control. |
| Equips Conductivity/ATC glass electrode. Its measurement result is fast and precise. Can choose 25℃, 20℃ and 18℃ three kinds of basis temperature. |
| Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc. |
| There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode. |
| Automatically recognize 8 kinds of conductivity standard solution. User can choose anyone from two series of solutions: Europe & USA series and China series |
| Equips Conductivity/ATC electrode. Its measurement result is fast and precise. |
| Adopt advanced and original conductivity measurement technology, use 1 pc of conductivity electrode (K=1), it can meet measuring accuracy requirement for range within 0.5μS/cm ~ 200mS/cm by using only one-point calibration. |
| Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale. |
| Conductivity measurement mode has the function of non-linear temperature compensation for high purity water. |
| Meter has the only product serial number. |
| Dustproof and waterproof meter meets IP54 standards. |
Conductivity |
Measuring range
Resolution
Accuracy
Temp. compensation range
Electrode constant
Reference temperature
|
Conductivity:(0.00~20.00)μS/cm (20.0~200.0)μS/cm
(200~2000)μS/cm (2.00~20.00)mS/cm
(20.0~200.0)mS/cm (200~2000)mS/cm(K=10)
Resistivity:(0 ~ 100)MΩ·cm
TDS: (0 ~ 100)g/L
Salinity: (0 ~ 100)ppt
0.01/0.1/1μS/cm 0.01/0.1/1 mS/cm
Meter:±0.5% FS,connect meter with electrode:±0.80% FS
(0 ~ 50)℃(automatic )
0.1 / 0.5 / 1 / 5 / 10 / 50 / 100 cm-1
25℃,20℃ and 18℃
|
Temperature |
Measuring range
Resolution
Accuracy
|
-10℃~ 110℃
0.1℃
5~ 60℃range:±0.4℃ other range:±0.8℃
|
Other Technical Parameters: |
Data storage
Storage content
Power
Communication connector
Size and weight
Quality and safety certification
|
300 groups
Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time
DC9V/300mA
RS232
160 × 190 × 70mm/880g
ISO9001:2008, CE and CMC
|
Working Condition |
Environment temperature
Environmental humidity
IP rating
|
5 ~ 35 ℃(0.01grade) 15 ~ 30 ℃(0.001grade)
≤75%
IP54 Dustproof and waterproof
|
| 1. Model MP515 lab conductivity meter | 1 unit |
| 2. Model 602 flexible electrode holder | 1pc |
| 3. 2401T-M plastic pH/ATC three-in-one combination electrode | 1 pc |
| 4. 1408μS/cm conductivity standard solution (50mL) | 2 bottles |
| 5. 9V power adapter | 1pc |
| 6. RS-232 communication cable | 1pc |
| 7. MP515 communication software CD | 1pc |
| 8. Operation manual | 1 unit |
| 9. Brief operation manual | 1 unit |
| 10. Packing List | 1 pc |
Accessory Categry |
Description |
Specifications |
Conductivity Electrode |
DJS-0.1-M Pure water conductivity electrode |
K=0.1 cm-1,Automatic temperature compensation, for testing the conductivity of high pure water, 4-pin plug |
2401-M Glass conductivity electrode |
K=1.0 cm-1,Automatic temperature compensation, precision laboratory test for conductivity, 4-pin plug. |
|
2301-M Plastic conductivity electrode |
K=1.0 cm-1,Automatic temperature compensation for laboratory and field testing, 4-pin plug. |
|
2310-M Plastic conductivity electrode |
K=10 cm-1,Automatic temperature compensation, used to test seawater and concentrated salt water, etc., 4-pin plug |
|
Glass flow cell |
Equipped with DJS-0.1-M electrode |
|
Temperature Electrode |
MP500 Temperature electrode |
Stainless steel housing, fast response, high accuracy, RCA plugs |
Conductivity Calibration Solution |
84 μS/cm Conductivity Calibration Solution |
500mL/250mL/50mL(bottle) |
1413 μS/cmConductivityCalibration Solution |
500mL/250mL/50mL(bottle) |
|
12.88 mS/cmConductivityCalibration Solution |
500mL/250mL/50mL(bottle) |
|
146.6 μS/cmConductivityCalibration Solution |
500mL/250mL/50mL(bottle) |
|
1408 μS/cmConductivityCalibration Solution |
500mL/250mL/50mL(bottle) |
|
12.85 mS/cmConductivityCalibration Solution |
500mL/250mL/50mL(bottle) |
|
Electrode soaking |
pH(ORP)Combination Electrode Soaking Solution |
500mL/250mL/100mL(bottle) |
10-5 mol/L Sodium ion electrode soaking Solution |
Equipped with 7801Sodium electrode . 500mL/250mL/100mL(bottle) |
|
Electrode holder |
Model 602 Flexible Electrode Holder |
Nice appearance of the arc-type bracket, you can turn 360 degrees and vertical lift |
Model 601Stirring Type Electrode Holder |
The electrode holder and magnetic stirrer combination of new products. |
|
Model 600 Electrode Holder |
Cheap simple electrode holder |
