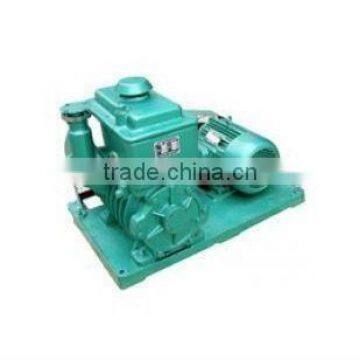

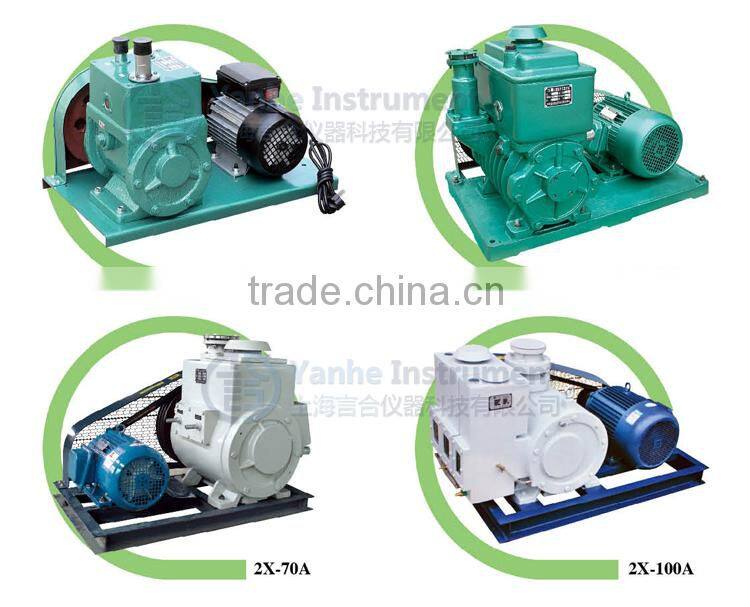

2X-A Series Rotary Vane Vacuum Pump
This series of pumps are elementary equipment for pumping air from sealed vassels. It can be used alone, also can be used as the forepump, process pump or titanium pump of booster pump, roots vacuum pump, gas circulation cooling roots pump, oil diffusion pump, and molecular pump.It is applicabe to vacuum coating, vacuum heat treatment, vacuum smelting, vacuum tube, bulb, refrigeration, chemicals, packing, forming, health and medical appliances, laboratory, vacuum drying machines and vacuum filtering.
1. Features
a. The pump can work continuously in the temperature between 5 to 40 centigrades and inlet pressure less than 1330Pa.
b. Equipped with gas ballast valve to pump a little water vapor. It can last service life of the oil except the 2X-4A type.
c. Dedicated vacuum pump for making neon lights.
d. Many suction holes in the vacuum pump to save electricity.
Parameters/Model |

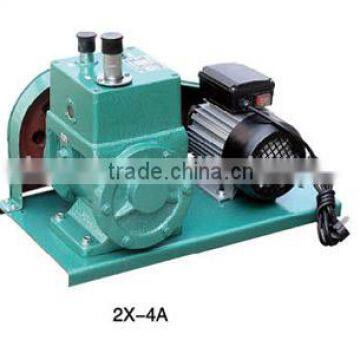

2X-4A |

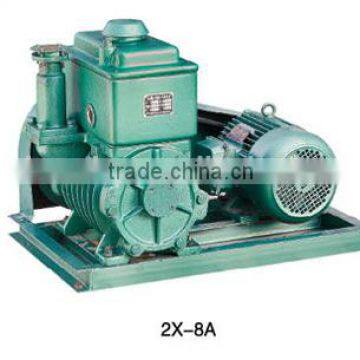

2X-8A |

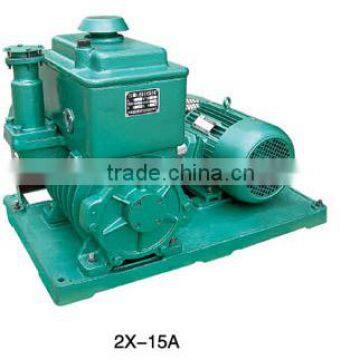

2X-15A |
2X-30A |

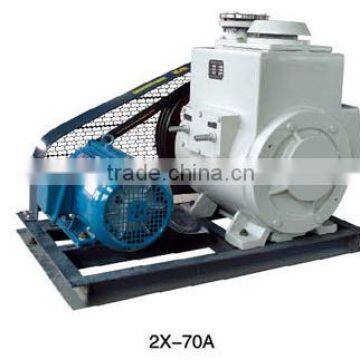

2X-70A |
2X-100A |
Remarks |
|
Pumping speed (L/s) |
4 |
8 |
15 |
30 |
70 |
100 |
|
|
Ultimate pressure(Pa) |
Partial pressure |
≤6×10-2 |
≤6×10-2 |
≤6×10-2 |
≤6×10-2 |
≤6×10-2 |
≤6×10-2 |
a |
|
Total pressure |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
b |
|
Moter power(kw) |
0.55 |
1.1 |
2.2 |
3 |
5.5 |
7.5 |
|
|
rotary speed(r/min) |
450 |
320 |
320 |
450 |
420 |
360 |
|
|
Temperature(ºC) |
≤40ºC |
|
||||||
Noise level(dBA) |
≤75 |
≤78 |
≤80 |
≤82 |
≤86 |
≤90 |
|
|
Inlet diameter(mm) |
25 |
40 |
40 |
65 |
80 |
90 |
|
|
Oil capacity(L) |
1 |
1.5 |
2 |
3 |
4.2 |
5 |
|
|
Dimendions(mm) |
540×335×380 |
790×430×540 |
790×530× 540 |
780×500×560 |
910×650× 700 |
113×740×690 |
|
|
Electro-vacuum differential pressure valve |
DYC-Q25 |
DYC-Q40 |
DYC-Q40 |
DYC-Q65 |
DYC-Q80 |
DYC-Q100 |
|
|
Cooling speed(L/mm) |
- |
- |
- |
71 |
72 |
72 |
C |
|
Weight(Kg) |
55/50 |
158/148 |
202/190 |
230/216 |
338/320 |
400/370 |
||
