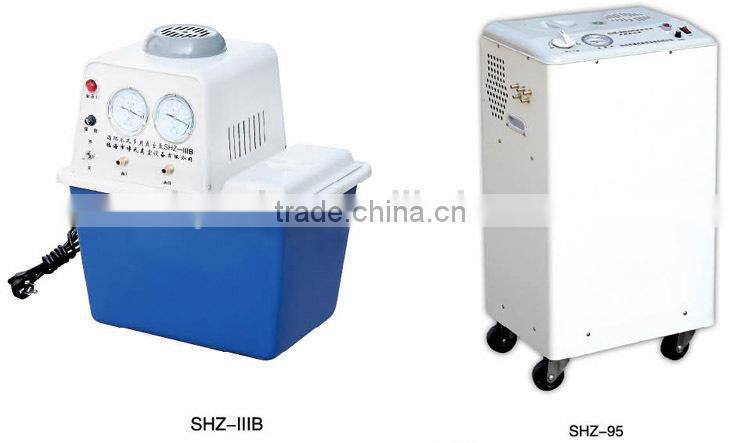

SHZ Type water circle vacuum pump
According to the feature of small area in laboratory The vacuum pump is an improved one which is based on the multi-use water circle vacuum pump and learn from the same type pump in foreign countries. It is very applicabe to assorted rotary evaporator. It has the characteristics of small size, low weight and beautiful appearance. Multi-gauge, pumping in many different directions, holes to add the ice blocks and shooting flow device
1. Features
a. many pumping holes, can be used alone or with two vacuum gauge
b. the material of centre of the body is stainless steel and special plastics. The material of the tank is special antisepsis plastics.
c. Equipped with special fluid muffle to reduce the friction noise of the gas and liguid in water. The vacuum will be higher and more stable.
d. Corrosion resisting, no pollution, low noise, convient to move and can add vacuum control valve if the customer needs.
e. The material of the water tank is special plastics, corrosion resisting to the things with acetone, aether, chloroform and some other chemiclas.
Parameters/Model |
SHZ-III |
SHZ-IIIB |
SHZ-2IIIB |
SHZ-95 |
SHZ-95A |
Power(w) |
0.18 |
0.18 |
0.18 |
0.37 |
0.37 |
Voltage(V/HZ) |
220/50 |
220/50 |
220/50 |
220/50 |
220/50 |
Flow rate(L/min) |
60 |
60 |
60 |
80 |
80 |
deliverylift(M) |
8 |
8 |
8 |
12 |
12 |
outer materials |
Special antisepsis plastics |
Special antisepsis plastics |
Special antisepsis plastics |
glass fibre reinforced plastic(FRP) |
stainless steel |
body materials |
PPS |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
stainless steel |
stainless steel |
Maxium vacuum(Mpa) |
0.098 |
0.098 |
0.098 |
0.098 |
0.098 |
Single pumpdown(L/min) |
10 |
10 |
10 |
10 |
10 |
Number of pumpdown |
2 |
2 |
4 |
5 |
5 |
water tank capacity(L) |
15 |
15 |
18 |
57 |
57 |
|
materials of water tank |
polrvinyl chloride (PVC) |
Special antisepsis plastics |
Special antisepsis plastics |
polrvinyl chloride(PVC) |
polrvinyl chloride(PVC) |
Dimensions(mm) |
385×280×420 |
385×280×420 |
470×260×516 |
450×350×950 |
450×350×950 |
Weight(kg) |
11 |
15 |
18 |
40 |
40 |
