SZ-93A Double Distillation Water Distiller Electric Water Distiller

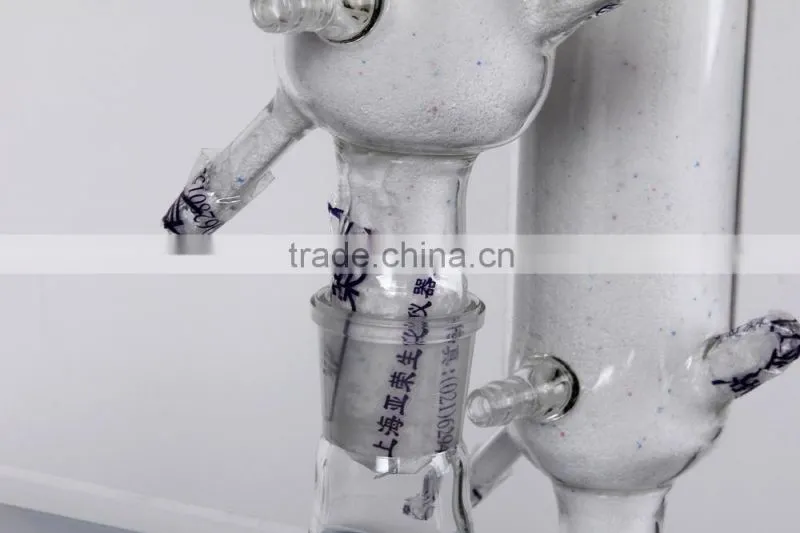

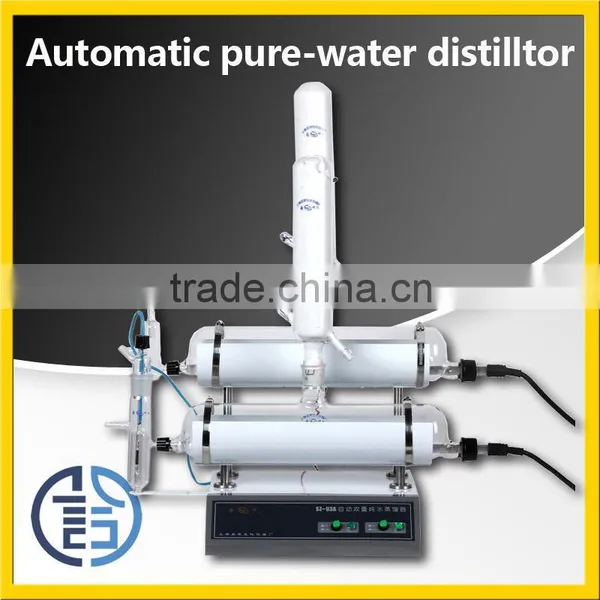

SZ-93A Double Distillation Water Distiller Electric Water Distiller photo-1

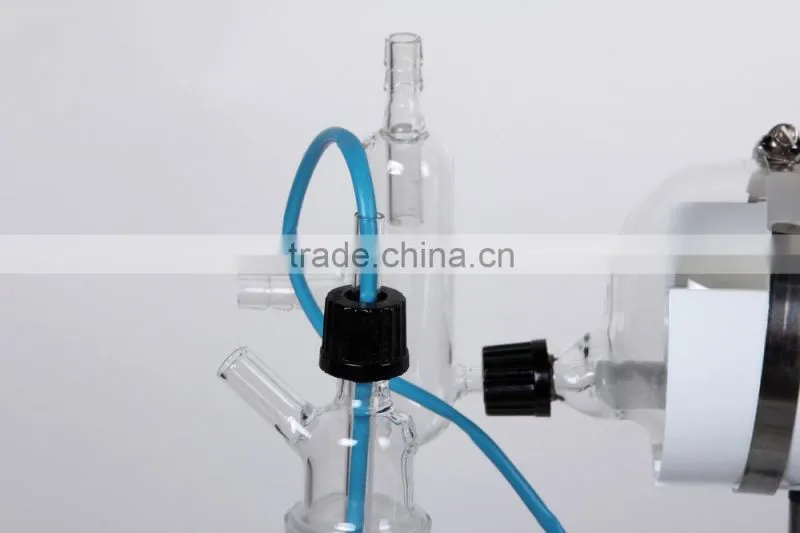

SZ-93A Double Distillation Water Distiller Electric Water Distiller photo-2

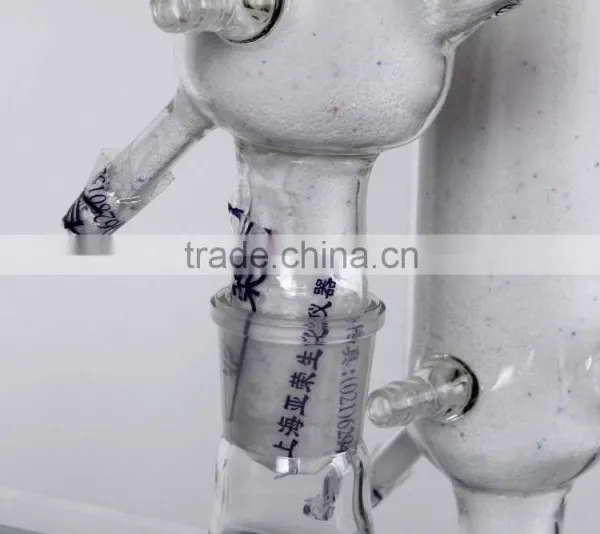

SZ-93A Double Distillation Water Distiller Electric Water Distiller photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Automatic pure-water distillator
Brand Name:
YanHe
Model Number:
SZ-93A
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or others
Delivery Detail:
Delivery time depends on order quantity.
Type Other, Automatic pure-water distillator
Brand Name YanHe
Model Number SZ-93A
Place of Origin Shanghai, China

SZ-93A double distillation water distiller electric water distiller

SZ-93A double distillation water distiller electric water distiller



SZ-93A double distillation water distiller electric water distiller



APPLICATION INTRODCTION:

  1. 1.      This apparatus is used for distilled water in laboralory.
  2. 2.      The water purity distilled by the apparatus is HEATING BY QUARTZ TUBE higher than the purity at qeneral distillatory.
  3. 3.      The first and second distillation by this apparatus are protected by relay. Safety and reliability.When at the first distillation,the first distillery starts.Then the distilled water flow into the second distillery,after the water reaches certain level. The wire spring relay connects power, and the second distillery starts to distill.
  4. 4.      The wire-spring relay controls the water level in the second distilling bottle.
  5. 5.      The Temperature relay controls the water temperature in the first distilling bottle.Cooling pipe temperature 60,Broken the power. 3-5 min spring the power automatically.
  6. 6.      These two relays control two quartz heating tubes respectively.



TECHNICAL DATA:

Quantity of pure-water: 1600ml/hour

Input voltage:220v/50Hz

Input power: 3kw



DIMENSIONS:

Dimension:70*34*80cm (Length*Width*Height)

Weighs:14kg
