Help Center6AP-SWP-LK801/901 Remote Display Turbine Flow Meter
Related Products
Specifications

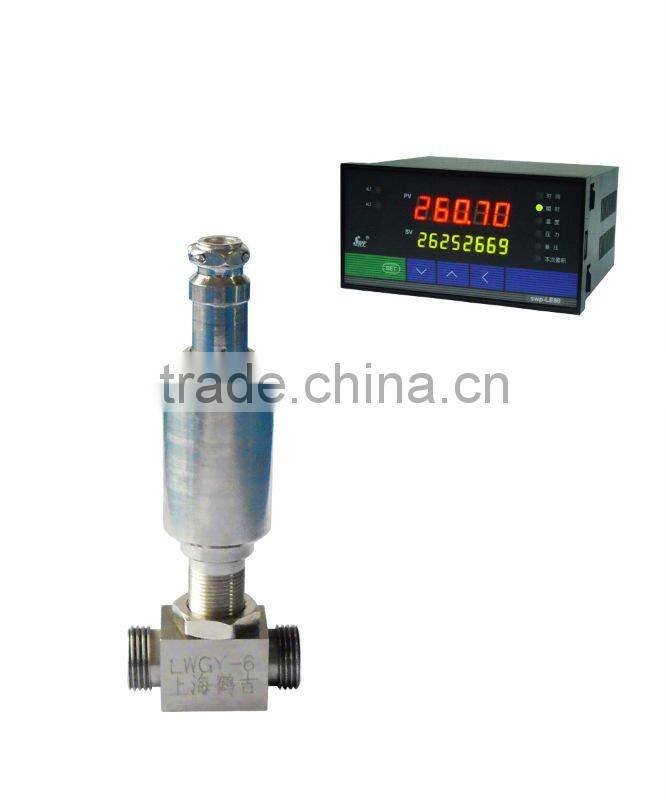

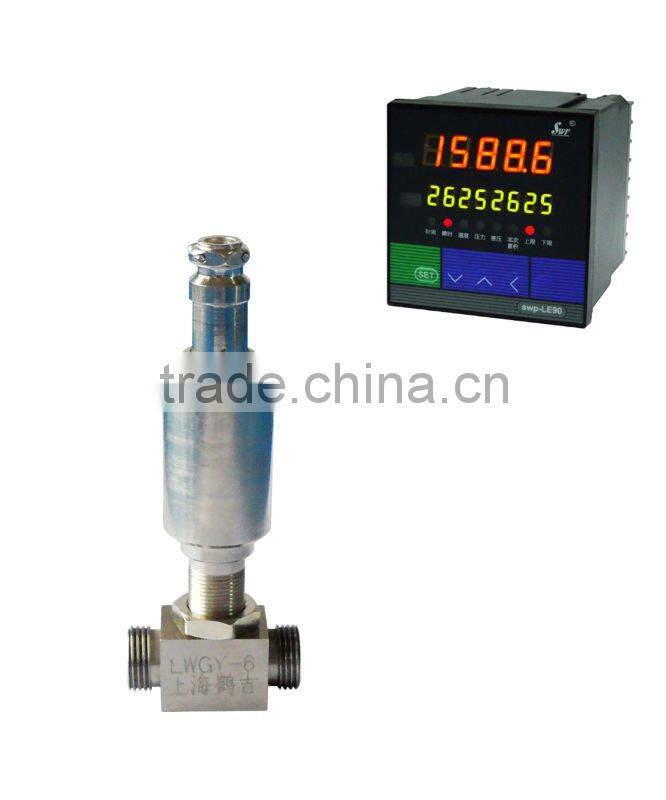

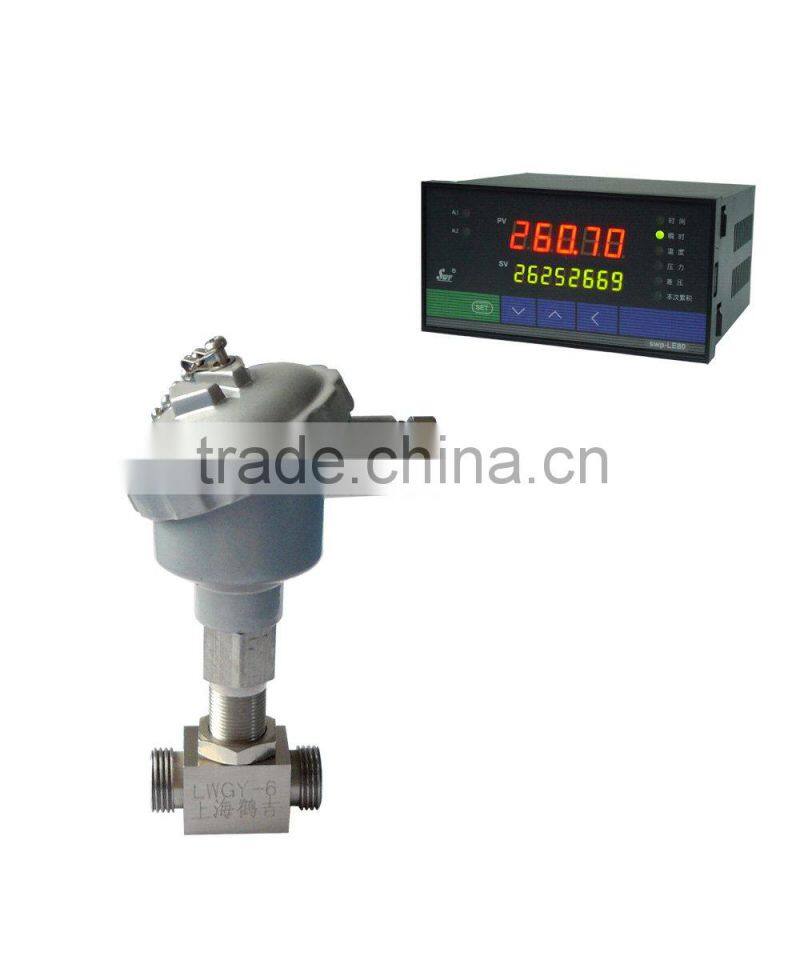

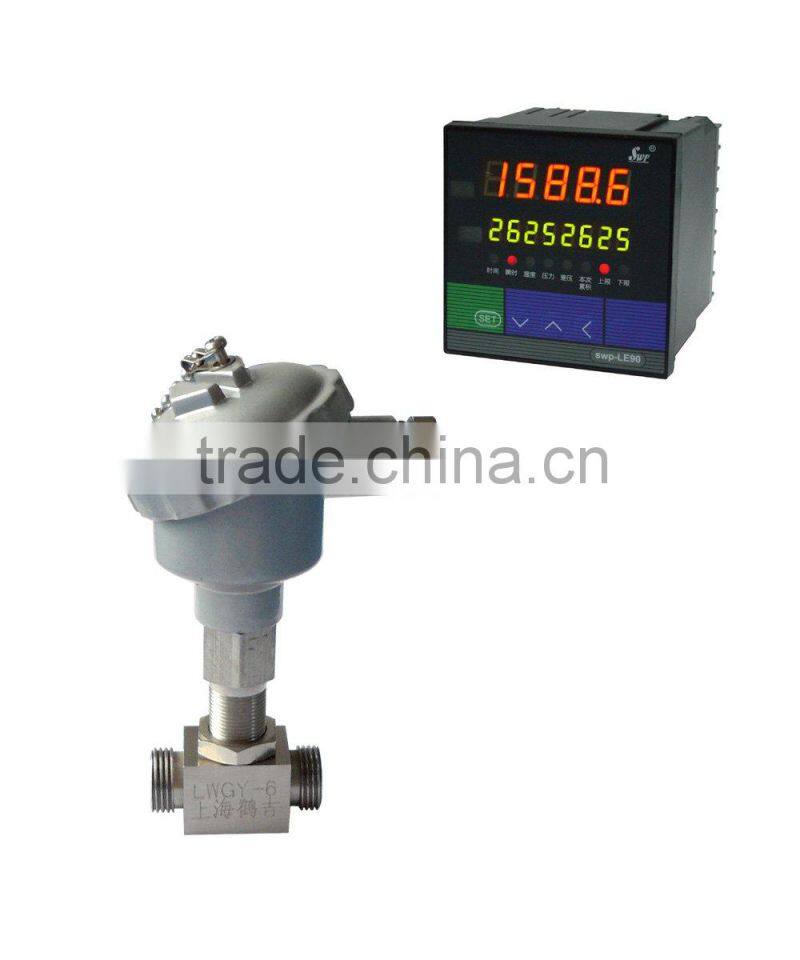

Model LWGY-6AP-SWP-LK801/901 Remote Display Turbine Flow meter1>Power supply:AC220V/DC24V
2>Display:LED
3>Output:4-20mADC..
The Model LWGY-6AP-SWP-LK801/901 Remote Display Turbine Flow meter can control the flow and alarm the flow.
Feature:
1>Accuracy:1.0%
2>Output:4-20mADC
3>Power Supply:AC220V/DC24V
4>Flow Control:Accumulated flow Control
5>Flow alarm:Cap flow,Lower flow
6>Communication protocol:RS-232,RS485
Specifocation:
DN(mm) | Flow range(m3/h) | Medium temp. | PN (mPa) | Env.Temp | Pressure loss (mPa) | |||||
Error (0.2%) | Error (0.5%) | Error (1.0%) | ||||||||
Min | Max | Min | Max | Min | Max | |||||
2A |
|
|
|
| 0.03 | 0.16 | -20~+120 (150*) (Degree Centigrade) | 6.3 | -25~+55 (Degree Centigrade) | 0.12 |
4A |
|
|
|
| 0.04 | 0.25 | ||||
6A |
|
|
|
| 0.1 | 0.6 | 6.3 16* 25* 40* | 0.08 | ||
10A |
|
|
|
| 0.2 | 1.2 | 0.05 | |||
15A |
|
| 0.6 | 4 | 0.6 | 6 | 0.035 | |||
25A |
|
| 1.6 | 10 | 1 | 10 | ||||
40A | 3 | 20 | 3 | 20 | 2 | 20 | 1.6or2.5 16* 25* | 0.025 | ||
50A | 6 | 40 | 6 | 40 | 4 | 40 | ||||
80A | 16 | 100 | 16 | 100 | 10 | 100 | ||||
100A | 25 | 160 | 25 | 160 | 20 | 200 | 1.6 2.5 | |||
150A | 60 | 400 | 50 | 300 | 40 | 400 | ||||
200A |
|
| 100 | 600 | 80 | 800 | ||||
250A |
|
| 160 | 1000 | 120 | 1200 | 1.6 | |||
300A |
|
| 260 | 1600 | 180 | 1800 | ||||
