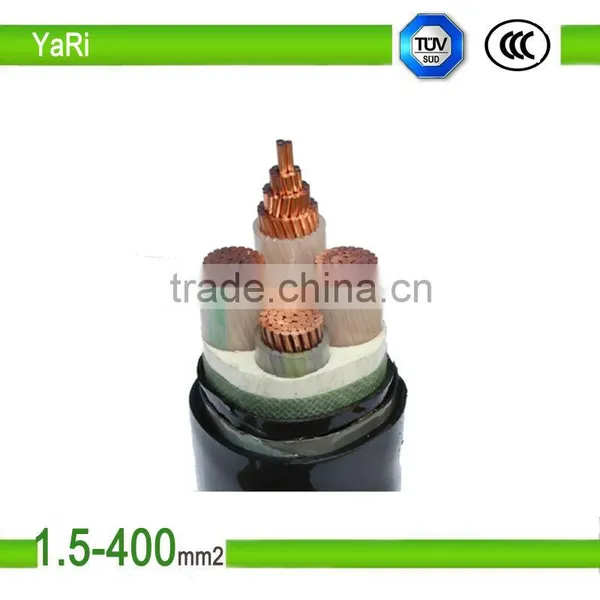

xlpe insulated high voltage power cable wire
- 100000 Meter / Meters per Month
- Qingdao/Shanghai/Tianjin/Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Henan, China | Brand Name: | Dayuan | Model Number: | xlpe insulated high voltage power cable wire |
Insulation Material: | PVC | Type: | Low Voltage | Application: | Overhead |
Conductor Material: | Copper | Jacket: | PVC |
Product Description
Specifications
1.xlpe insulated high voltage power cable wire2.electric power cable
3.Fast delivery
4.ASTM, BS, DIN, IEC, CSA standard
xlpe insulated high voltage power cable wire
1 Description of xlpe insulated high voltage power cable wire
For single core PVC or XLPE insulated or 11kv transmission line without messenger or neutral conductor, the phase conductor may be AAC or AAAC or ACSR or Copper.
For more than one core PVC or XLPE insulated aerial cable with or without messenger or neutral conductor and with or without street lighting conductor, the phase conductor and street lighting conductor are AAC with PVC insulation, and the messenger or neutral conductor 11kv transmission line is AAAC or ACSR with or without PVC(XLPE) insulation.
2 Operating Characteristics of xlpe insulated high voltage power cable wire
Rated voltage: Up to and including 0.6/1(1.2)kV;
Max. permissible continuous operating temperature of conductor: 90oC(XLPE insulated), 70 oC (PE insulated), 70 oC (PVC insulated);
Max. temperature of conductor 11kv transmission line during short-circuit ( 5s max. duration) shall not exceed: 250oC(XLPE insulated), 130 oC (PE insulated), 160 oC (PVC insulated);
The ambient temperature under installation should not be lower than: -20 oC.
The bending radius of cable is recommended as following:
When the diameter of cable is less than 25mm: not less than 4 times of the diameter of cable
When the diameter of cable is not less than 25mm: not less than 6 times of the diameter of cable
When the cable is used in alternative current system, the rated voltage of cable should be at least equal to the rated voltage of system; when the cable 11kv transmission line is used in direct current system, the rated voltage of system should not greater than 1.5 times of the rated voltage of the cable.
3 Application of xlpe insulated high voltage power cable wire
PVC or XLPE insulated aerial cable as a new-type aerial cable is used for overhead electric power transmission, extensively used in rebuilding of urban 11kv transmission line and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.
4 Manufacturing Standards of xlpe insulated high voltage power cable wire
GB/T 12527-2008, IEC 60502-1, BS 7870-5, ASTM, DIN, CSA
5 Packing & Shipping for xlpe insulated high voltage power cable wire
6 Our factory
7 Our service
1) Inquiries are typically answered within 12 hours and OEM is welcome.
2) We have experienced QC to control the quality of different kind of cables.
3) We're CCC certificated, and can provide CE, Rohs and SGS certificates before exporting.
4)We have grown from a small factory with an annual turnover of USD50,000 to over USD50,000,000 during these 10 years.
5) Huge Inventory Allows Us To Ship Your Order Immediately
6) Our employees are all capable and professinal. They can offer you the Prompt Courteous Service.
7) We ship worldwide.
Please feel free to contact me for more information.
