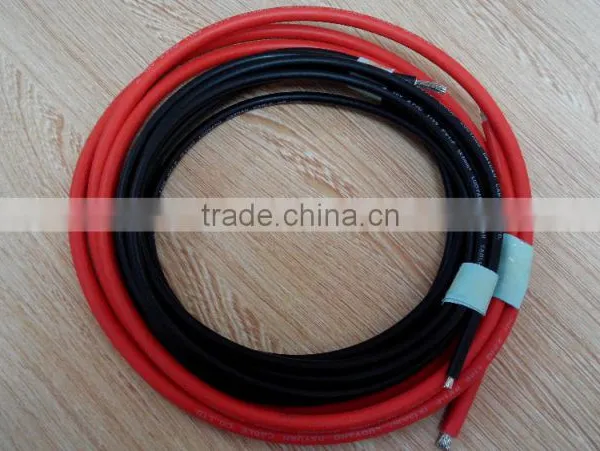

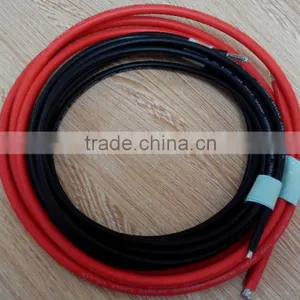

PV1-F 1*1.5mm2 XLPE Insulated XLPE Sheath 0.6/1kv Tinned Copper Cores Solar pv Cable
US$ 0.6 - 29.3
MOQ: 1 Kilometer
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Dayuan
Model Number:
PV1-F 1*1.5mm2/ 1*2.5mm2/1*4mm2/1*6mm2/1*10mm2
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PV1-F 1*4mm2 XLPE Insulated XLPE Sheath 0.6/1kv Tinned Copper Cores Solar CableUS$ 0.6 - 29.3MOQ: 1 Kilometer -
PV1-F 1*6mm2 XLPE Insulated XLPE Sheath 0.6/1kv Tinned Copper Cores Solar pv CableUS$ 0.6 - 29.3MOQ: 1 Kilometer
-
PV1-F 1*10mm2 XLPE Insulated 0.6/1kv Tinned Copper Cores dc Solar pv CableUS$ 0.6 - 29.3MOQ: 1 Kilometer
-
PV1-F 1*6mm2 XLPE Insulated Sheath for Solar Power System pv Solar CableUS$ 0.6 - 29.3MOQ: 1 Kilometer
-
0.6/1kv Rated Voltage AL/CU Conductor Multicore 4 Cores mm XLPE Insulated PVC Power Electric CableUS$ 0.48 - 99.8MOQ: 1 Kilometer
Place of Origin
Henan, China
Brand Name
Dayuan
Model Number
PV1-F 1*1.5mm2/ 1*2.5mm2/1*4mm2/1*6mm2/1*10mm2
Insulation Material
XLPE
Type
Low Voltage
Application
Construction
Conductor Material
Other, Tinned Copper
Jacket
Other, XLPE
Specifications
1, IEC, ASTM, DIN, BS VDE, UL, GOST,SAS standard.2, ISO, CCC, CQC certification approved. solar pv cable
PV1-F 1*1.5mm2 XLPE Insulated XLPE Sheath 0.6/1kv Tinned Copper cores solar pv cable
Product Description
DATA:
1,Specification Type:PV1-F 1*1.5mm2
Standard:2PfG 1169/08.07
2,Construction:
ITEM |
Unit |
Spec.Value |
|
|
Conductor
|
Material |
-- |
Tinned Copper |
Construction |
NO./mm |
30/0.25±0.004 |
|
Dia.(Approx) |
mm |
1.7 |
|
|
Insulation
|
Material |
-- |
XLPE |
Thickness |
mm |
0.6 |
|
Dia.(Approx) |
mm |
3.0 |
|
|
Sheath
|
Material |
-- |
XLPE |
Thickness |
mm |
0.7 |
|
Dia.(Approx) |
mm |
4.8 |
|
Color |
-- |
BK |
|
Reference weight |
kg/km |
40 |
|
3, Characteristics:
Rated Voltage |
AC 0.6/1kV;DC 1.8kV |
Ambient Temperature |
-40~90°C |
Max. Temperature at Conductor |
120°C |
Max. Conductor Resistance at 20°C |
13.7Ω/km |
The permitted short-circuit-temperature(5s) |
200°C |
Weathering/UV resistance |
PASS |
Flame Test |
IEC 60332-1 |
Rated Current |
30A |
