Home > Products > Power cable > PV1-F 1*10mm2 XLPE Insulated 0.6/1kv Tinned Copper cores dc solar pv cable

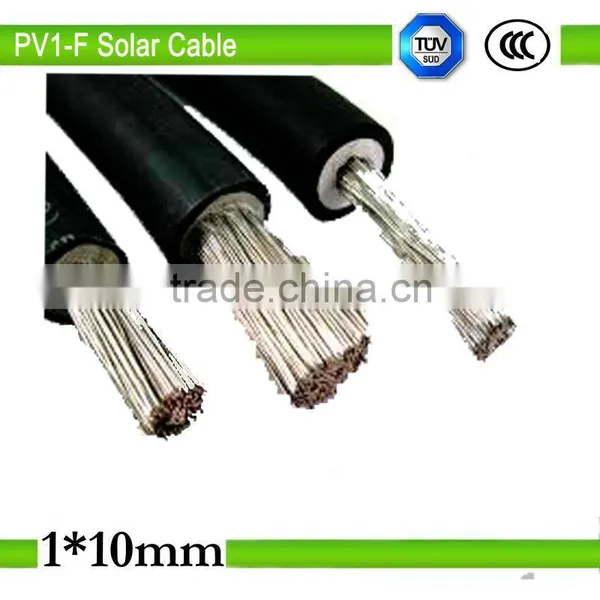

PV1-F 1*10mm2 XLPE Insulated 0.6/1kv Tinned Copper cores dc solar pv cable
- 8000 Kilometer / Kilometers per Month
- Qingdao
- T/T Credit Card
-
PV1-F 1*6mm2 XLPE Insulated Sheath for solar power system pv solar cable
-
0.6/1kv rated voltage AL/CU conductor multicore 4 cores mm XLPE insulated PVC power electric cable
-
0.6/1kv rated voltage AL/CU conductor multi core XLPE insulated PVC steel tape armoured cable
-
0.6/1kv rated voltage copper conductor 4 cores mm XLPE insulated PVC steel wire armored power cable electric
-
0.6/1kv rated voltage AL/CU conductor multicore 4 cores mm xlpe power cables
-
0.6/1kv rated voltage AL/CU conductor multicore 4 cores mm PVC insulated PVC steel tape armored power electric cable
Product Details
| Place of Origin: | Henan, China | Brand Name: | Dayuan | Model Number: | PV1-F 1*1.5mm2/ 1*2.5mm2/1*4mm2/1*6mm2/1*10mm2 |
| Insulation Material: | XLPE | Type: | Low Voltage | Application: | Construction |
| Conductor Material: | Other, Tinned Copper | Jacket: | Other, XLPE |
Product Description
Specifications
1, IEC, ASTM, DIN, BS VDE, UL, GOST,SAS standard.2, ISO, CCC, CQC certification approved. solar pv cable
PV1-F 1*10mm2 XLPE Insulated 0.6/1kv Tinned Copper cores dc solar pv cable
DATA:
1, Specification Type:PV1-F 1*10mm2
Standard:2PfG 1169/08.07
TUV Certificate No.:50263641
2,Construction:
ITEM | Unit | Spec.Value | |
Conductor
| Material | -- | Tinned Copper |
Construction | NO./mm | 84/0.40±0.004 | |
Dia.(Approx) | mm | 4.7 | |
Insulation
| Material | -- | XLPE |
Thickness | mm | 0.9 | |
Dia.(Approx) | mm | 6.7 | |
Sheath
| Material | -- | XLPE |
Thickness | mm | 1.0 | |
Dia.(Approx) | mm | 9.1 | |
Color | -- | BK | |
Reference weight | kg/km | 180 | |
3,Characteristics:
Rated Voltage | AC 0.6/1kV;DC 1.8kV |
Ambient Temperature | -40~90°C |
Max. Temperature at Conductor | 120°C |
Max. Conductor Resistance at 20°C | 1.95Ω/km |
The permitted short-circuit-temperature(5s) | 200°C |
Weathering/UV resistance | PASS |
Flame Test | IEC 60332-1 |
Rated Current | 98A |
PV1-F 1*10mm2 XLPE Insulated 0.6/1kv Tinned Copper cores dc solar pv cable
PRODUCING PROCESS
WHY US
PV1-F 1*10mm2 XLPE Insulated 0.6/1kv Tinned Copper cores dc solar pv cable
FAQ
CONTACT US
PV1-F 1*10mm2 XLPE Insulated 0.6/1kv Tinned Copper cores dc solar pv cable
Contact Us
- Luoyang Asian Sun Industrial Group Co., Ltd.
- Contact nameAlice Tang Chat Now
- Phone86-379-69991589
- Address12th Floor, Entrepreneurship Park, Hundsun Science & Technology Park, East Taikang Road, Economic Development Zone, Luolong Area
