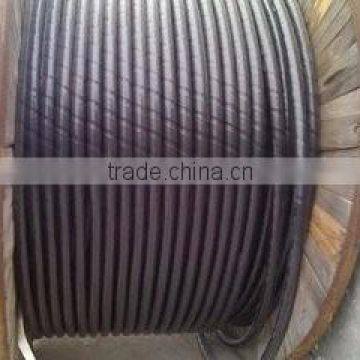

Help CenterZR-VLV Flame Retardant PVC Insulated and Sheathed Control Cable
Related Products
-
PVC Insulated Mechanical Control CableUS$ 0.31 - 5.89MOQ: 1000 Meters -
UL758 Standard 600V TW18 AWG PVC Insulation Electric CableUS$ 0.76 - 0.76MOQ: 10000 Meters
-
UL758 Standard 600V TW8 AWG PVC Insulation Electric CableUS$ 0.76 - 0.76MOQ: 10000 Meters
-
UL758 Standard 600V TW 8 AWG PVC Insulated Electrical CableUS$ 0.76 - 0.76MOQ: 10000 Meters
-
UL758 Standard 600V TW10 AWG PVC Insulation Electric CableUS$ 0.76 - 0.76MOQ: 10000 Meters
Specifications
1, IEC, ASTM, DIN, BS VDE, UL, GOST,SAS standard.
2, ISO, CCC, CQC certification approved. 8 Years Experience of OEM service
Application
XLPE insulated control cables with the characteristic of low-smoke and flame-retardant are suitable for the electrical apparatus and instruments, signal transmission of distribution devices and control and measure system with A.C rated voltage of 450/750V and below, used by metallurgical, power and petrochemical industries etc.
Operating Characteristics
1,Rated voltage : 450/750V
2,The rated temperature of conductor
The maximum temperature of the cable conductor is70°C.
During having a short circuit, (lasting less than 5s), the maximum temperature of the cable conductor must be below 160°C.
3,Ambient temperature for laying
The ambient temperature for laying shall be above 0°C, if not the cable need be preheated.
4, The bend radius
a) For unarmored cable, it shall not be less than 6 times of the external diameter of cable
b) For armored cable or copper tape screened cable, it shall not be less than 12 times of the external diameter of cable
c) For the flexible cable with screen layers, it shall not be less than 6 times of the external diameter of cable.
Type of Product
Type |
Name of product |
Copper | |
KYJV |
XLPE insulated polyvinyl chloride sheath copper core control cable |
KYJVP |
XLPE insulated polyvinyl chloride sheath copper braid shielding copper core control cable |
KYJVP2 |
XLPE insulated polyvinyl chloride sheath copper tape screened copper core control cable |
KYJV22 |
XLPE insulated steel tape armoured polyvinyl chloride sheath copper core control cable |
KYJVP22 |
XLPE insulated copper braid shielding steel tape armoured polyvinyl chloride sheath copper core control cable |
KYJVP2-22 |
XLPE insulated copper tape screened steel tape armoured polyvinyl chloride sheath copper core control cable |
KYJV32 |
XLPE insulated thin steel-wire armoured polyvinyl chloride sheath copper core control cable |
KYJVR |
XLPE insulated polyvinyl chloride sheath copper core flexible control cable |
KYJVRP |
XLPE insulated polyvinyl chloride sheath woven screened copper core flexible control cable |
Expressed Method of Product
Series Code
control power cable..................................................................................................... ... K
Conductor code
copper conduct..............................................................................................................T/(omitted)
Insulation code
cross-linking polyethylene (xlpe) insulated......................................................................YJ
Sheath code
polyvinyl chloride and sheath............................................................................................V
Polyethylene sheath..........................................................................................................Y
Armour code
steel tape armoured...........................................................................................................2
thin steel-wire armoured.....................................................................................................3
Outer sheath code
polyvinyl chloride outer sheath...........................................................................................2
polyethlene outer sheath....................................................................................................3
Structure code
flexible conductor................................................................................................................R
copper braid shielding.........................................................................................................P
copper tape screen.............................................................................................................P2
Flame-retardant Series Code
Low-smoke halogen-free flame-retardant fire-safe series
Low-smoke halogen-free flame-retardant class A fire-safe……………………………WDZAN
Low-smoke halogen-free flame-retardant class B fire-safe……………………………WDZBN
Low-smoke halogen-free flame-retardant class C fire-safe……………………………WDZCN
Low-smoke halogen-free flame-retardant class D fire-safe……………...........………WDZDN
Type of Product
Type |
Name of product |
copper | |
KYJV |
XLPE insulated pvc sheath copper core control cable |
KYJVP |
XLPE insulated pvc sheath copper braid shielding copper core control cable |
KYJVP2 |
XLPE insulated pvc sheath copper tape screened copper core control cable |
KYJV22 |
XLPE insulated steel tape armoured pvc sheath copper control cable |
KYJVP22 |
XLPE insulated copper braid shielding steel tape armoured pvc sheath copper core control cable |
KYJVP2-22 |
XLPE insulated copper tape screened steel tape armoured pvc sheath copper core control cable |
KYJV32 |
XLPE insulated thin steel-wire armoured pvc sheath copper core control cable |
KYJVR |
XLPE insulated pvc sheath copper core flexible control cable |
KYJVRP |
XLPE insulated pvc sheath woven screened copper core flexible control cable |
Company Information
Luoyang Asian Sun Industrial Group Co., Ltd, a professional wires and cables manufacturer for 6 years in China. Asian Sun attends International Exhibitions every year, we support to offer many kinds of wires and cables, such as xlpe/pvc electrical cable, control cable, aerial cable, ABC, AAC, AAAC, ASCR cables, and XLPO/PVC Solar PV Cable etc.

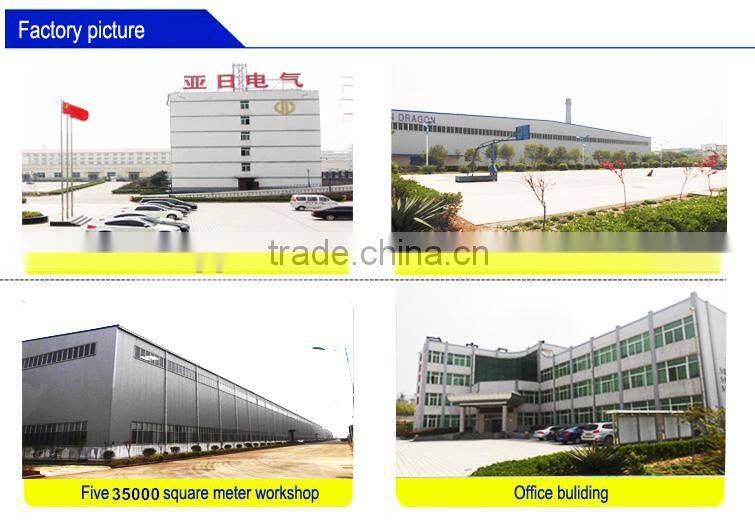

1. Factory: 200,081 square meters, available for OEM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: TUV, ;
4. Payment terms: T/T, L/C;
5. Guarantee: 17 years;
6. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
Specifications
solar cable 1, IEC, ASTM, DIN, BS VDE, UL, GOST,SAS standard.
2,TUV, ISO, CCC, CQC certification approved. 8 Years Experience of OEM
