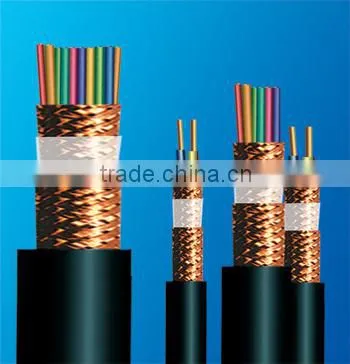

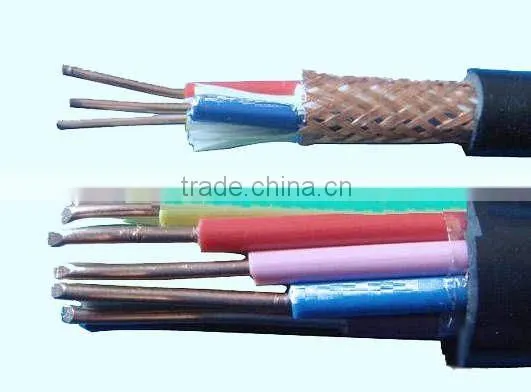

450/750V XLPE Insulated PVC Sheath Copper Braid Screened Flexible Control Power Cable
Application:
The Plastic insulated ( PVC and XLPE) control cable is applicable for control and monitoring loops and protective wires with
AC rated voltage of 0.6/1kV and 450/750V. I can be used for the power distribution and control and the power and dynamo-electric controls of the power plants substations.
Technical details:
Amor: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Outer sheath: PVC, MDPE, HDPE, LDPE
Filler: Polypropylene filament with lapped binding tape
Standard:
1. Standard applied:IEC60502, BS7870,GB/T12707
2. Max. operating temp.: 70°C,can be 90°C and 110°C as per requirement
3. Conductor:Class 1/2 annealed bare copper solid or strands
4. Sheath:PVC or PE or Low smoking and halogen free compound,etc.
5. Color: black or others on request
6. Flame retardant or fire resistance or Low Smoking and Halogen free or other property can be available
7.OEM can be available
Type of Product
Type |
Name of product |
Applicability and surroundings |
Copper | ||
KYJV |
XLPE insulated polyvinyl chloride sheath copper core control cable |
To be laid in a fixed place, for example, in a building, trench or pipe |
KYJVP |
XLPE insulated polyvinyl chloride sheath copper braid shielding copper core control cable |
To be laid in a fixed place required screening, for example, in a building, trench, pipe and so on |
KYJVP2 |
XLPE insulated polyvinyl chloride sheath copper tape screened copper core control cable |
|
KYJV22 |
XLPE insulated steel tape armored polyvinyl chloride sheath copper core control cable |
To be laid in a fixed place which can bear greater mechanical pulling force and so on, for example, in a building, trench, pipe or underground |
KYJVP22 |
XLPE insulated copper braid shielding steel tape armored polyvinyl chloride sheath copper core control cable |
To be laid in a fixed place which can bear greater mechanical pulling force and so on, for example, in a building, trench, pipe or underground
|
KYJVP2-22 |
XLPE insulated copper tape screened steel tape armored polyvinyl chloride sheath copper core control cable |
|

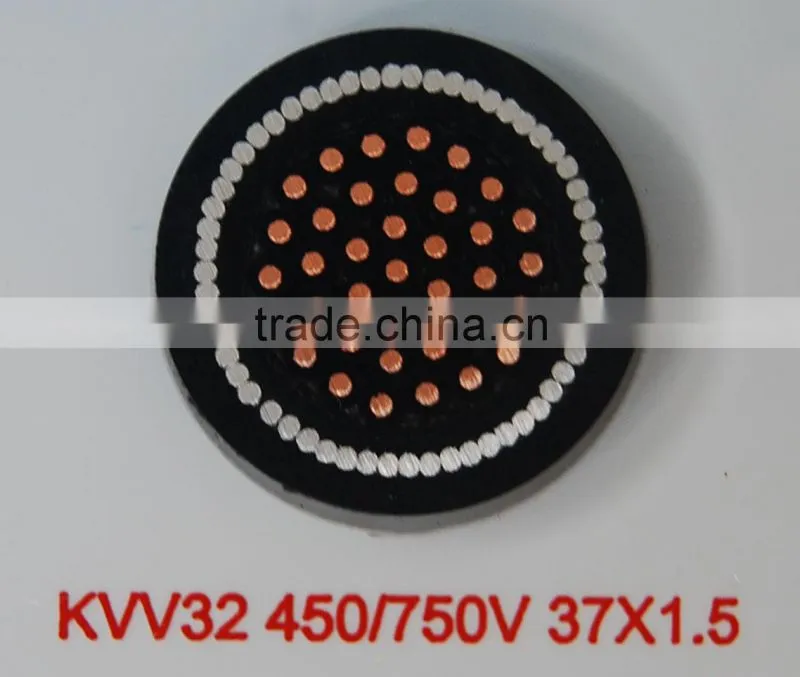

KYJV32 |
XLPE insulated thin steel-wire armored polyvinyl chloride sheath copper core control cable |
For laying indoors , in tunnel, cable french, well or direct in ground, able to bear external mechanical forces, and certain force . |
KYJVR |
XLPE insulated polyvinyl chloride sheath copper core flexible control cable |
To be laid in a building, and the movement of the cable requires pliability, screen and so on |
KYJVRP |
XLPE insulated polyvinyl chloride sheath woven screened copper core flexible control cable |
