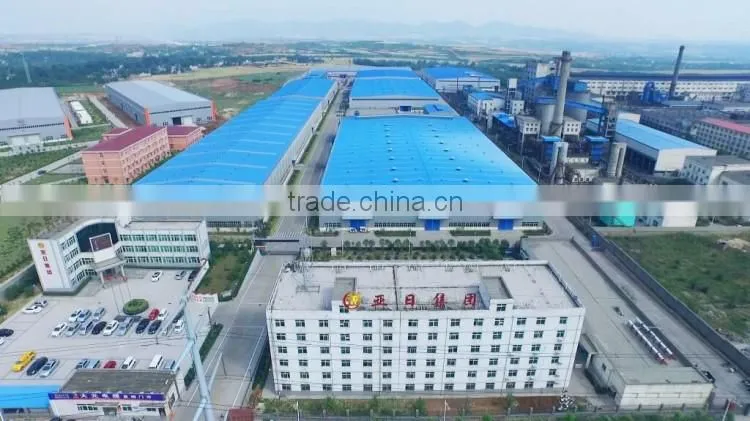

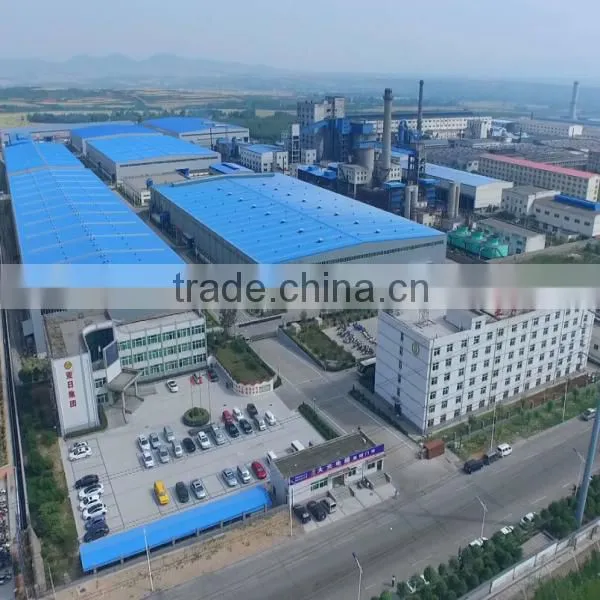

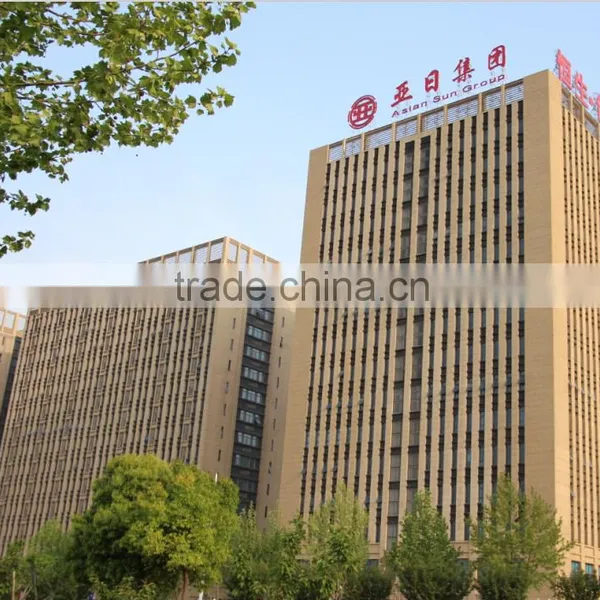

Luoyang Asian Sun Group has developed into a integrated group company since established in 2006.covering more than10 production workshops with about 210,000 square meters. At present, Asian Sun Group possesses over 900 employeesand 1080 million fixed assets

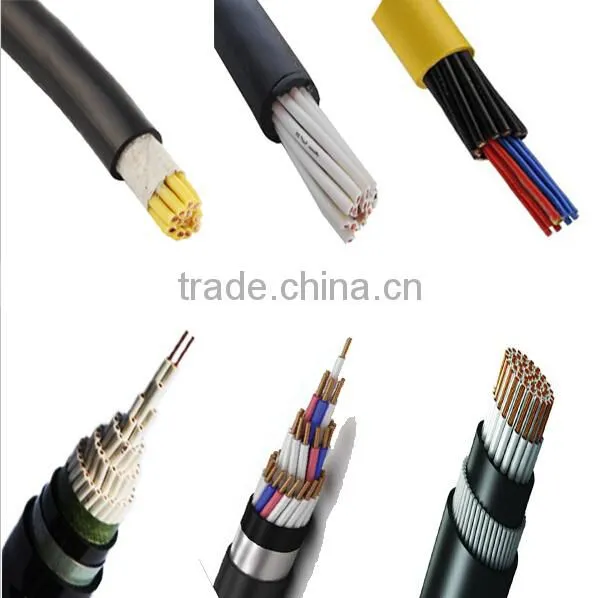

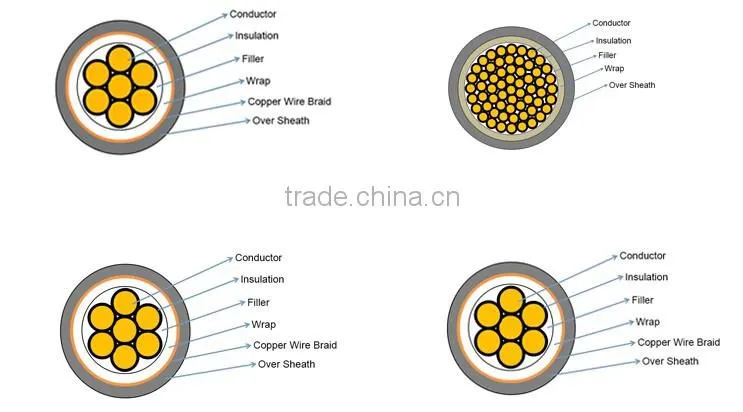

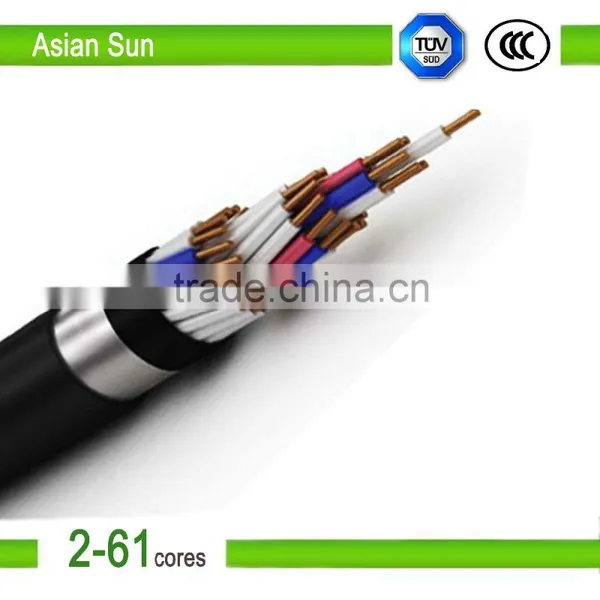

Low voltage Copper PVC control cable
Description
The Plastic insulated ( PVC and XLPE) control cable is applicable for control and monitoring loops and protective wires with AC rated voltage of 0.6/1kV and 450/750V. I can be used for the power distribution and control and the power and dynamo-electric controls of the power plants substations.
Application characteristic
(1) Rated AC Voltage: U0/U 450/750V, 600/1000V.
(2) The Maximum allowed temperature for long-term operation of conductor:
PVC insulated cable: 70°C
XLPE insulated cable: 90°C
(3) When laying, the ambient temperature shall not below 0°C
(4) Permitted minimum bending radius:
Non-armored cables: ≥ 6 times value of the outer diameter
Armored or copper tape shielded cable: ≥ 12 times value of the outer diameter
Shielded flexible cables: ≥ 6 times value of the outer diameter
|
Conductor Nominal Section mm2 |
Conductor Categories |
||
|
Species No.1 |
Species No.2 |
Species No.5 |
|
Max DC resistance at 20°C Ω/km |
||
0.5 |
36.0 |
36.0 |
39.0 |
0.75 |
24.50 |
24.5 |
26.0 |
1.0 |
18.10 |
18.1 |
19.5 |
1.5 |
12.10 |
12.1 |
13.3 |
2.5 |
7.41 |
7.4 |
7.98 |
4.0 |
4.61 |
4.61 |
4.95 |
6.0 |
3.08 |
3.08 |
3.3 |
10.0 |
1.83 |
1.83 |
1.91 |
Relation Products

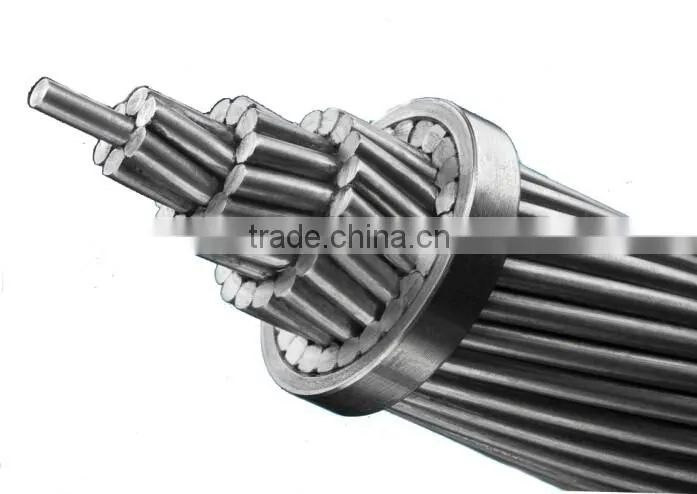

AAC CONDUCTOR ACSR CONDCUTOR

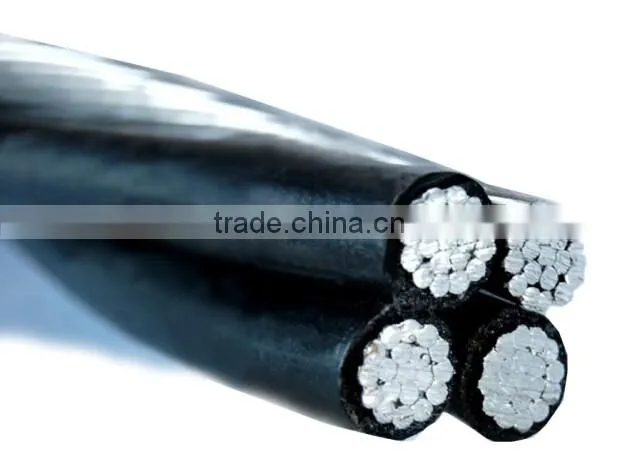

ABC CBALE SOLAR CABLE

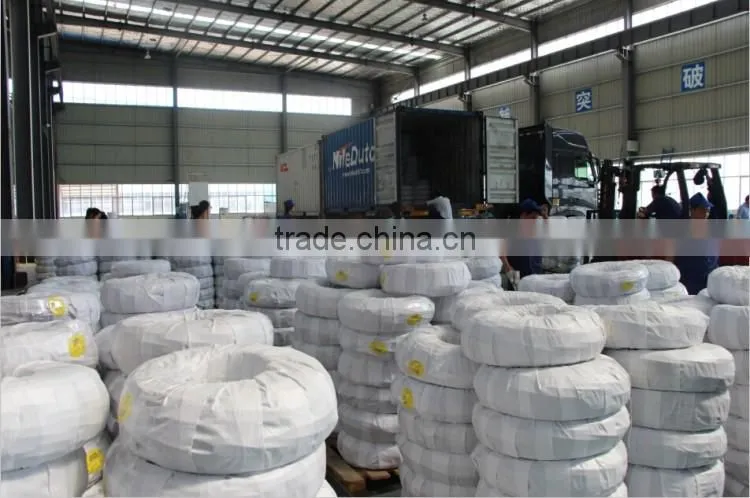

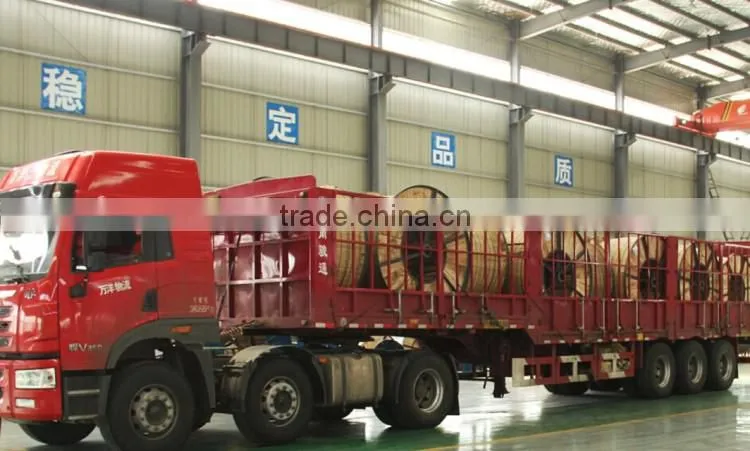

1) Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2) Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.

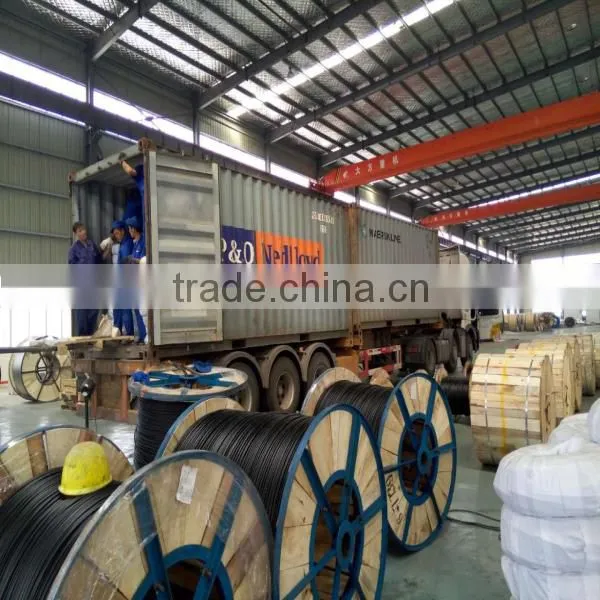

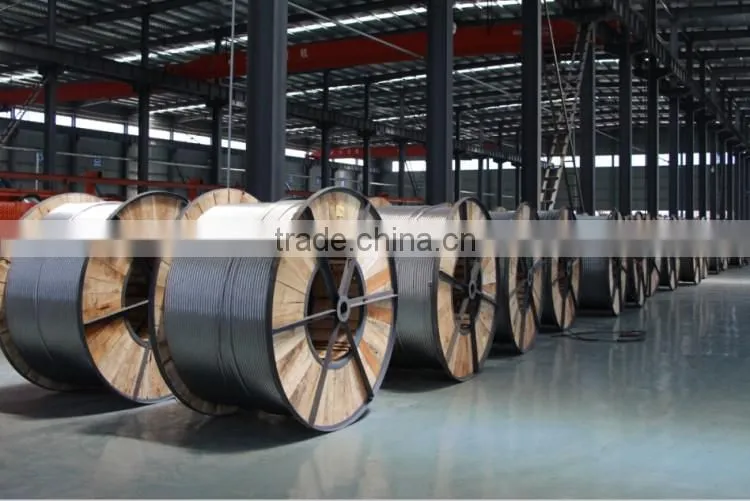

3)Treated wooden/steel-wooden drums for big diameter cables.
Welcome come our factory at any time! we trust you will like it!

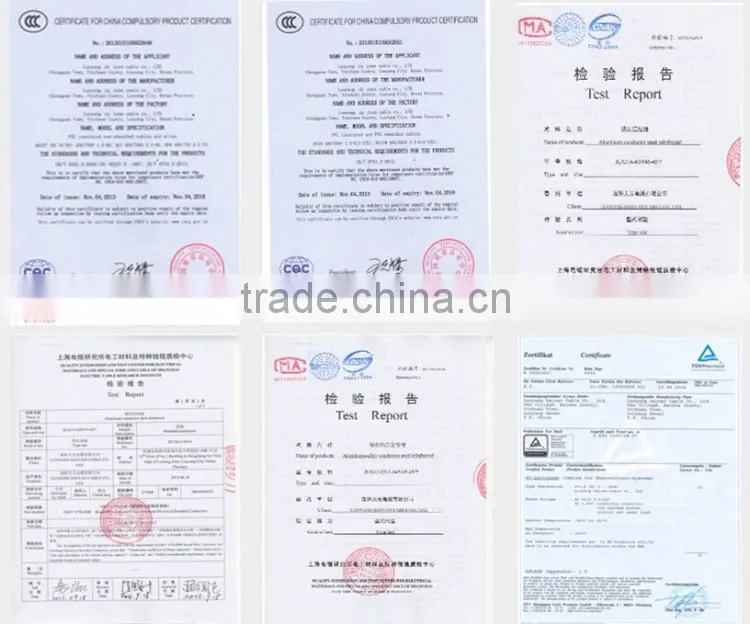

Certificate: SECRI, ISO 9001, ISO 14001, OHSAS 18001,TUV,CE,CB,CCC etc

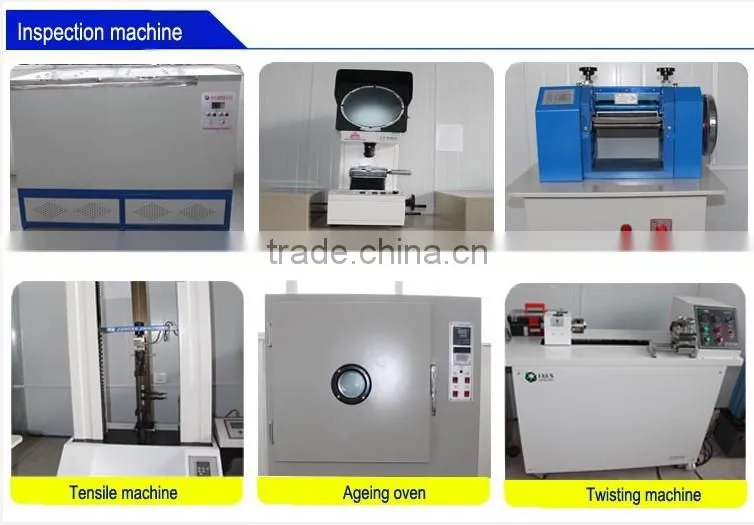

We test your goods before delivery to ensure the quality!
