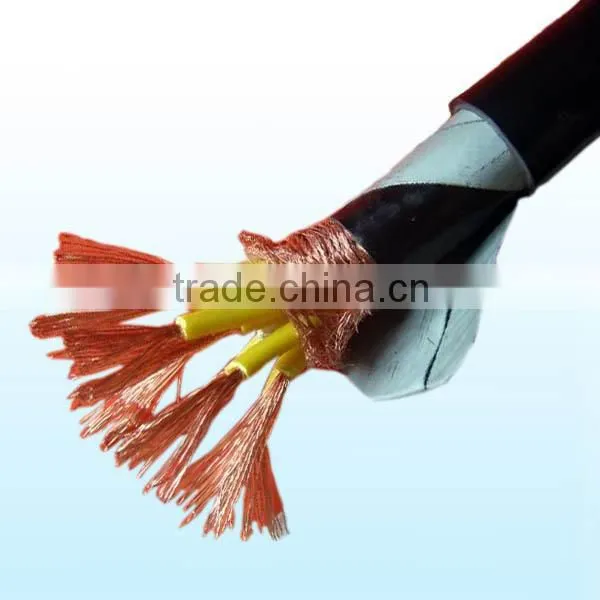

Help Center450/750v Rated Voltage XLPE Insulated PVC Sheath Copper Braid Shielding Steel Tape Armored Cu Core Conductor Control Power Cable
Related Products
-
450/750v Rated Voltage PVC Insulated PVC Sheath Copper Core Conductor Copper Flexible Control Power CableUS$ 0.48 - 99.8MOQ: 1 Kilometer -
PVC Insulated PVC Sheath Cu Conductor Multi Core Control Power Cable Copper Braid Shielding Fire Proof Low HalogenUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
PVC Insulated PVC Sheath Cu Conductor Multi Core Control Power Cable Copper Tape Screened Fire Proof Low HalogenUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
PVC Insulated Sheath Cu Conductor Multicore Control Power Cable Copper Braid Shielding Steel Tape Armored Fire Proof Low HalogenUS$ 0.48 - 99.8MOQ: 1 Kilometer
-
PVC Insulated Sheath Cu Conductor Multicore Control Power Cable Copper Tape Screened Steel Tape Armored Fire Proof Low HalogenUS$ 0.48 - 99.8MOQ: 1 Kilometer
Application
XLPE insulated control cables are suitable for the electrical apparatus and instruments, signal transmission of distribution devices and control and measure system with A.C rated voltage of 450/750V and below, used by metallurgical, power and petrochemical industries etc.
XLPE insulated control cables with the characteristic of low-smoke and flame-retardant are suitable for the electrical apparatus and instruments, signal transmission of distribution devices and control and measure system with A.C rated voltage of 450/750V and below, used by metallurgical, power and petrochemical industries etc.
Operating Characteristics
1,Rated voltage
Rated Voltage of cable U0/U(Um) is 450/750V
2,The rated temperature of conductor
The maximum temperature of the cable conductor is70°C.
During having a short circuit, (lasting less than 5s), the maximum temperature of th cable conductor must be below 160°C.
3,Ambient temperature for laying
The ambient temperature for laying shall be above 0°C, if not the cable need be preheated.
4, The bend radius
a) For unarmored cable, it shall not be less than 6 times of the external diameter of cable
b) For armored cable or copper tape screened cable, it shall not be less than 12 times of the external diameter of cable
c) For the flexible cable with screen layers, it shall not be less than 6 times of the external diameter of cable.
Type of Product
|
||||||||||||||||||
KYJVRP |
XLPE insulated polyvinyl chloride sheath woven screened copper core flexible control cable |
Flame-retardant Series Code
Low-smoke halogen-free flame-retardant fire-safe series
Low-smoke halogen-free flame-retardant class A fire-safe……………………………WDZAN
Low-smoke halogen-free flame-retardant class B fire-safe……………………………WDZBN
Low-smoke halogen-free flame-retardant class C fire-safe……………………………WDZCN
Low-smoke halogen-free flame-retardant class D fire-safe……………………WDZDN
