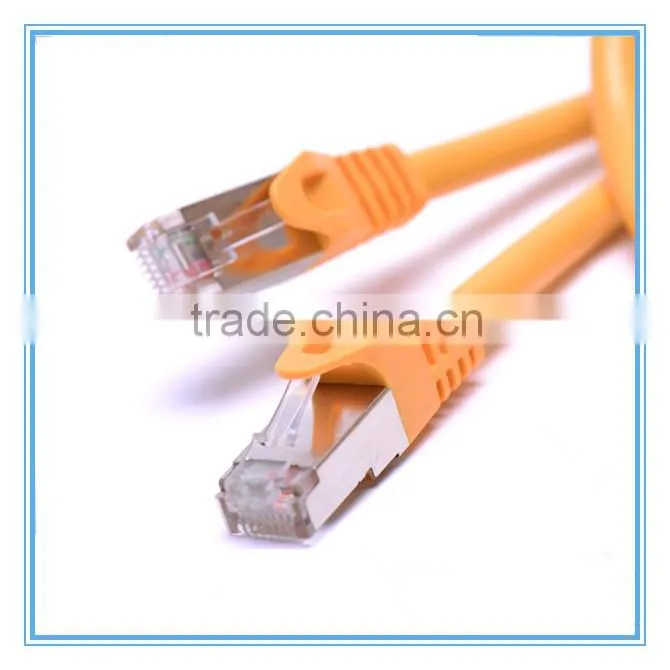

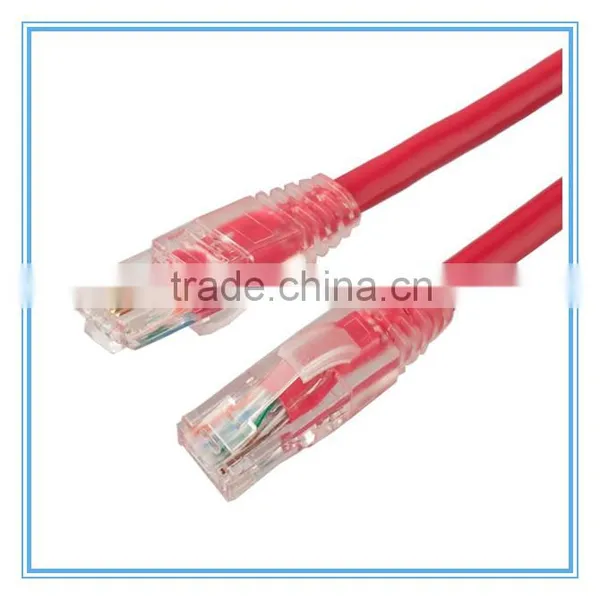

Help CenterCat5e 24wg Cat 5 Utp Network Cable 305m
Related Products
-
Cat5e Ftp Lan Cable/ftp Cat5e Lan Cable 4pr 24awg/cat 5 Wire 8 ConductorsUS$ 0.15 - 0.5MOQ: 1000 Pieces -
High Quality UTP/FTP/STP/SFTP BC/CCA Cat 5 Ethernet Cable / Lan Cable Made in ChinaUS$ 0.15 - 0.5MOQ: 1000 Pieces
-
High Quality Cat 5 Cable/Reticle CableUS$ 0.3 - 0.5MOQ: 1000 Pieces
-
Factory Wholesale UTP Cat 5 Cat 5e Ethernet Cable/lan CableUS$ 0.3 - 0.5MOQ: 1000 Pieces
-
Cat 5 FTP Networking Cable/Lan CableUS$ 0.15 - 0.8MOQ: 1000 Pieces

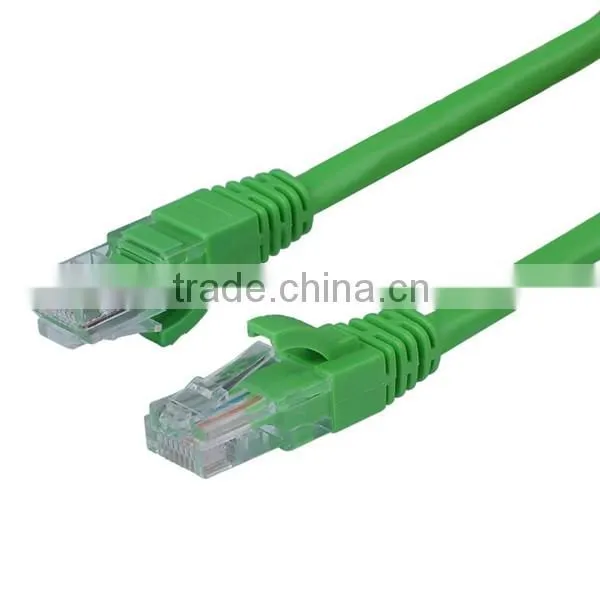

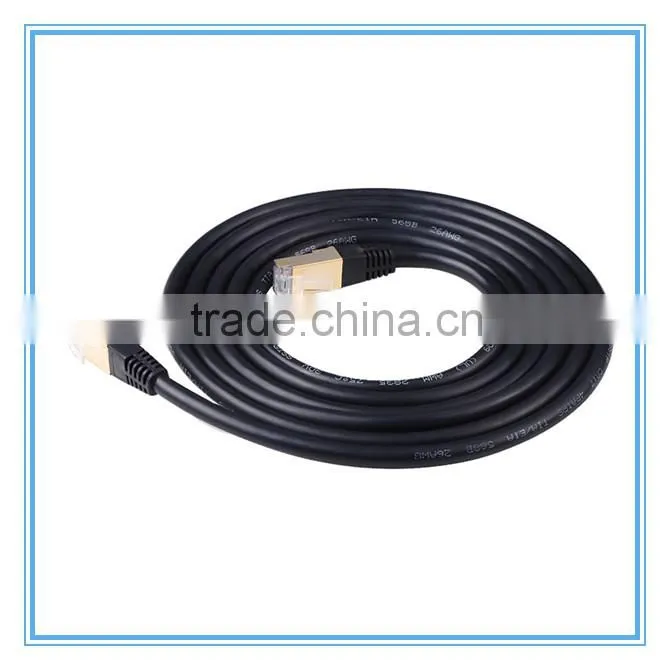

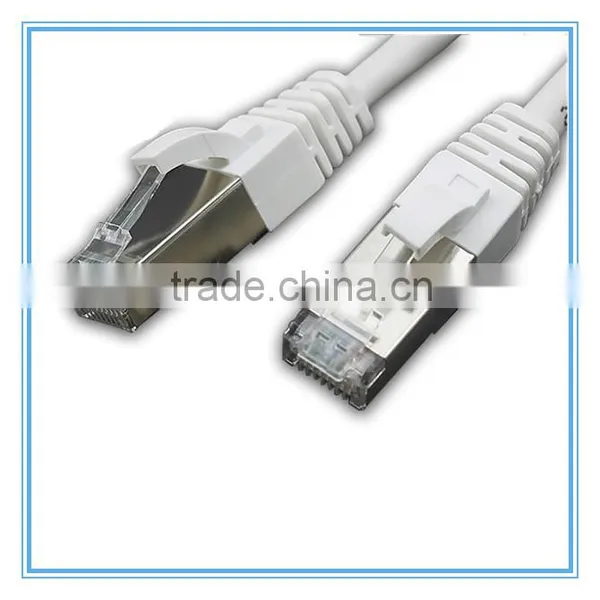

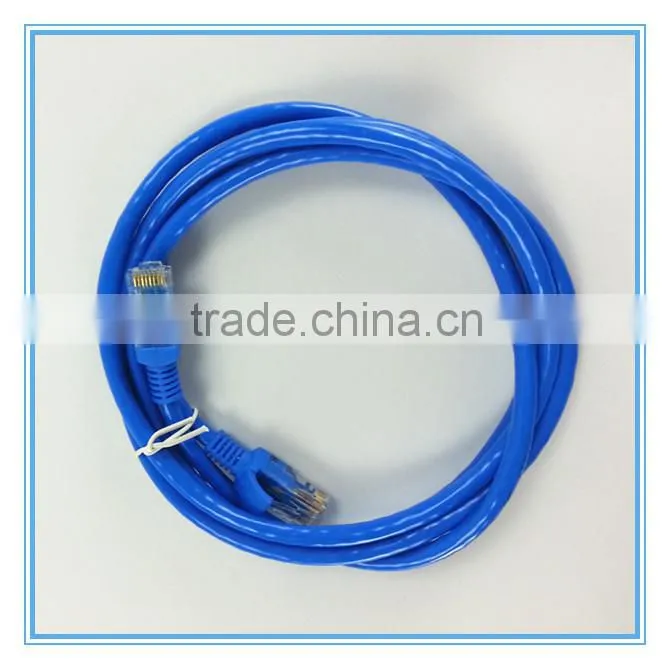

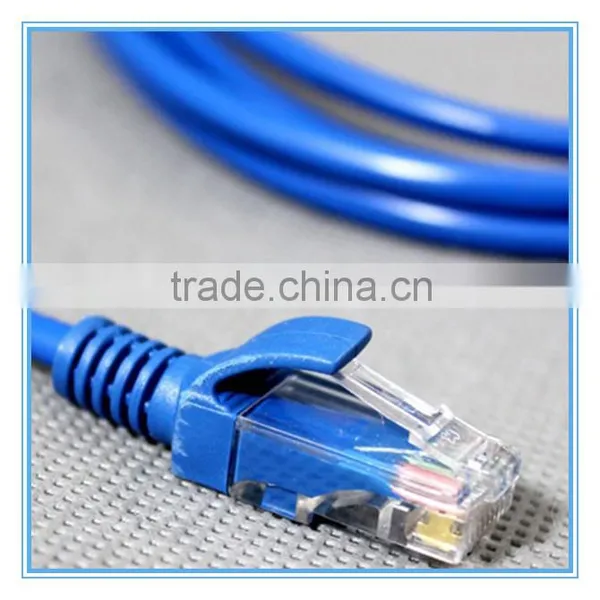

utp cat 5 cable
Electrical Performance
1 Low Frequency
2 Dielectric Strength:2.5kVdc-2 second
3 DC Loop Resistance:Max 19ohm/100m
4 Resistance Unbalance:Max 2%
5 Insulation Resistance:Min 500 Mohm-km@100-500Vt
6 Capacitance Unbalance(pair to ground):Max1600pF/100m
Electrical Characteristic:
1.0-100.0MHz Impedance (ohms): 100 ohm+/- 15 ohm
1.0-350.0MHz Delay Skew (ns/100m): <=45
Pair-to-Ground Capacitance Unbalance (pF/100m): <=330
Max. Conductor DC Resistance 20oc(ohms/km): 6.58
Application:
100Base-T4; 100Bsdr-TX; 100VG-Anylan; 155Mbps ATM; 622Mbps ATM;
Products Description:
ISDN, 10BASE-T (IEEE802.3), 100BASE-T (IEEE802.3),
155 Mbps ATM, 100Vg-AnyLAN (IEEE802.12), TP-PMD
(ANSI X3T9.5), 16Mbps Token Ring (IEEE802.5)
Industry Standards: ANSITIA/EIA 568-B.2, EN50173,
EN50288-3-1, ISO/IEC11801
Standard Compliances:
1 All Category 6 Requirements as Per ANSI/TIA/EIA, ISO/
IEC, and CENELEC EN Standards:
2 ANSI/TIA/EIA 568-B.2 CAT.5e
3 2nd Edition ISO/IEC 11801 Class D
4 CENELEC EN 50173-1
5 IEC 61156-5, CENELEC EN 50288-2-1 Horizontal Cable
6 Flame Retardancy is Verified According to IEC 60332-1
About US

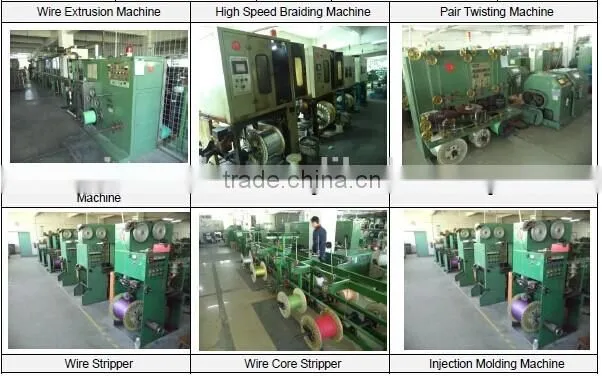

Shenzhen Yiwanda Electronics Co. Ltd. mainly focuses on the Development, Production and Sale of computer peripherals and all kinds of connectors. Our main products include MFI Accessories,HDMI cables, svga cable, cat5e cat6 cable,USB cable and HDMI splitters and adapters. Until now we have passed ISO 9001:2008,we are HDMI org members, with ATC certificate, aslo we have CE.ROHS certificate.
Paryment Terms
Shipment
Send by UPS,DHL,FedEx,TNT,EMS,it is up to customer
