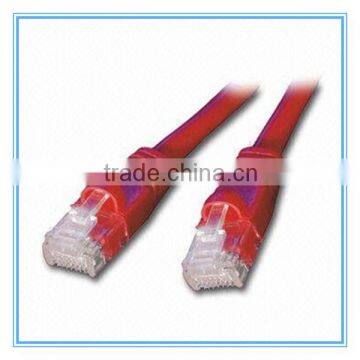

Factory Price 23AWG 305M Bulk UTP Cat6 Network Cable With Pullbox PVC Jacket utp cat6 cable price For The World Cheapest Price
- 500000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Yiwanda | Model Number: | YWD-3 |
Type: | Cat 5e | Number of Conductors: | 8 |
Product Description
4 pair cat5/5e/6 network cables
Product Name | network cables | |
Coductor | Copper / Aluminum, based on client's requirements | |
Construction | Bare copper wire/Optional | |
Insulation jacket | ||
PVC /PE/LOZH | ||
Colors | Optional | |
Voltage | 75/150V | |
Application | 1.Computer network cabling project | |
Specifications | CCC ISO certificated | |
Strict QC | ||
Prompt delivery | ||
OEM/ODM | Available | |
Sample | Free, freight charge prepaid or negotiation | |
Payment Term | T/T, L/C, D/A, D/P, Western Union | |
MOQ | 1000 pieces | |
Port Of Loading | Shenzhen | |
Delivery Detail | 15days after confirming the order/Depend your order |
Description:
•Conductor:OFC/BC/CCC/CCA/CCS
•Conductor Diameter: 0.35~0.75 ±0.02mm
•Wire Guage: 22awg/23awg/24awg/26awg
•Number of Conductors: 4Pairs x 2 ( Twisted Cable )
•Jacket: PVC/ PE / LZOH
•Model: Cat5/Cat5e/Cat6
•Shielding: UTP(Unshielded Twisted Pair), FTP(Shielded Foil Twisted Pair), SFTP(Shielded Foil Twisted Pair)
•Color: Optional
•Length:Optional
Electrical Characteristics: | |||
Property | Value | Units | |
DC Conductor Resistance Max. | 9.38 | Ω/100m | |
Resistance Unbalance Max. | 2% | ||
Mutual Capacitance Nom. | @1kHz | 5.6 | nF/100m |
Capacitance Unbalance pair/ground Max. | @1kHz | 160 | pF/100m |
Characteristic Impedance | 0.772 -100 MHz | 100+15 | Ω |
Maximum Delay Skew | 1.0-100 MHz | 45 | ns/100m |
Velocity of Propagation | 68% | Speed of Light | |
Maximum Propagation Delay | 10 MHz | 545 | ns/100m |
