Cu/XLPE/PVC/STA/PVC dc power cable
- 5000 Kilometer / Kilometers per Month
- Qingdao Port
- T/T Credit Card
- Mooring rope cable
- Manufacturer of waterproof gas electric composite cable for air ducts, specialized cable for underwater divers
- The difference between different types of automotive cables and selection advice
- China manufacturer Communicate cable RVVP 4*0.3mm2 for power generation
- IEC62196-2 mode 3 16A single-phase electric vehicle charging process
- Automotive high-voltage cables with protection class IP67 characteristics
Product Details
Place of Origin: | Shandong, China | Brand Name: | BIN AO | Model Number: | VV 0.6/1KV 1*400 |
Insulation Material: | PVC | Type: | Low Voltage | Application: | Underground |
Conductor Material: | Copper | Jacket: | PVC |
Product Description

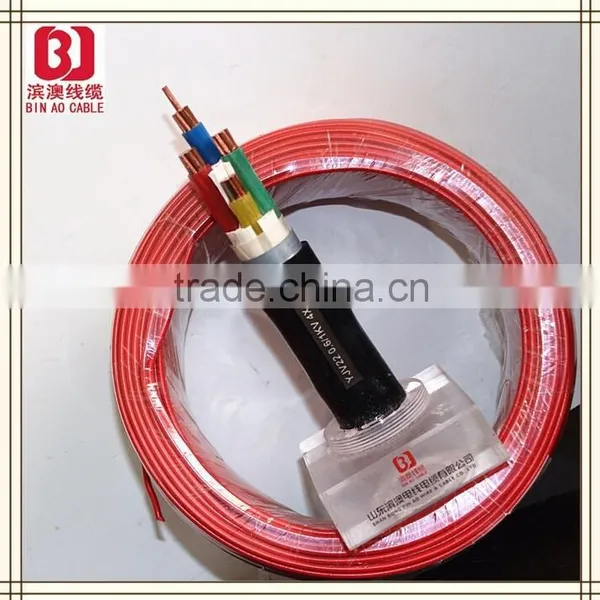

Cu/XLPE/PVC/STA/PVC dc power cable
Construction:
Conductor: Solid or stranded copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)
Nominal Section:
Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
Using Attributes:
dc power cable
1. Rated Voltage 1kV
2.The highest temperature of cable conductor: PVC insulation 70℃,XLPE insulation 90℃
3.In short circuit (the longest duration is no more than 5S)
Cable conductor | Cross Section(mm2) | The Highest Temperature(℃) |
PVC insulation Conductor | ≤300mm2 | ≤160 |
>300mm2 | ≤140 | |
crosslinked polyethylene insulation conductor | 250℃ | ≤250 |
4. laying temperature of cable
As to PVC insulation or sheathed cable,ambient temperature under installation should not be below 0℃
5.The minimum bending radius of cable when installed
Cable | Unarmored | Armored | Memo |
Single-core | R=20D | R=15D | R:minimum bending radius D:cable diameter |
Multi-core | R=15D | R=12D |
6.Properties of PVC Power Cable
1)The long-time permissible working temperature of cable conductive core is not more than 70 degrees.
2)During short circuit (max permanent time is not more than 5 seconds), the max temperature of cable conductor is not more than 165°C.
3)The difference level of laying cable is not restricted.When laying the cable,ambient temperature is not lower than 0°C.
4)They have good chemical stability,and properties of acid resistance,alkali resistance,salt resistance,oil resistance,solvent resistance and flame resistance.
7.Properties of XLPE Power Cable
1)The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2)In short circuit (Max long term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degrees.
3)The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.
4)Excellent electrical performance, resistance to chemical corrosion.
5)Can stand advisable traction when laid.Can stand traction from Outside.Left low smoke halogen-free after burned.Retard the burning of the cable.
More products for you to choose:
Specification Drawing :
Product Packaging:
Wooden or iron drum or as customer's requirement
Our Company:
Shandong Binao Wire& Cable Co.,Ltd.,founded in 2009 with a registered capital of 102 million CNY, covering an area of 96000 square meters, structure area 15000 square meters, is a large modern domestic enterprise integrating development, production and sales together.It owns the most advanced cable production and test equipment at home and abroad. The company has successively acquired the National Industrial Production License of PRC, and passed the China National Compulsory CCC Certification, the ISO9001:2008 Quality Management System Certification, and the ISO14001:2004 Environment Manament System Certification. And the company was awarded the title of National High-tech Enterprise, for it stays ahead in the technical aspect of the cable industry with more than 20 R&D technicians and several technical and untility patents.
Production Line:
As one of top rank cables manufacturers in China, our factory is mainly specialized in PVC Insulated Building Wire, PVC and XLPE Insulated Power Cable ,hook-up wires for electric appliance, controlling cables, power cables, instrument signal cables, high temperature-resistant cables, low temperature-resistant cables,fire ratardant cables,aerial cables, marine cables, rubber sleeve cables for mining, locomotive cables, branch cables and special cables.These various types cables could be widely used in electricity, petroleum, chemical industry, railway, construction etc.
Our Certification:
Our products meet standards of GB, IEC DIN ASTM, JIS, NF, AS/NZS CSA GOST,CCC and so on.
As first rank of the supplier in China, we have obtained ISO9001, ISO14001 and CCC certificates.
Our market:
With the perfect quality and after sales service,our products are very popular in domestic market,whatever in civil using and the government projects.For oversea market,till now we have expanded our market to South America like Chile,Colombia,Bolivia,Brazil and so on,Euro-American market like U.S.A.Germany,Spain,U.K. And so on.Middle East,Africa,Southeast Asia,Mongolia and some other areas.
