Home > Electrical & Electronics > Telecommunication & Broadcasting > WiFi Products > Kasda Bonding 300Mbps Wireless Network VDSL Modem Router
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Kasda
Model Number:
KW5225_B
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Kasda KW5819 Wireless Adsl/adsl2/adsl2+ Moderm Router 150mbps 1T1R Wifi External Antenna Home Automation GatewayNegotiableMOQ: 10 Units -
Kasda KW5829 Wireless Adsl/adsl2/adsl2+ Moderm Router 300mbps 1T1R Wifi External Antenna Home Automation GatewayNegotiableMOQ: 10 Units
-
Kasda KD318MI Wired Adsl/adsl2/adsl2+ 4 Ethernet Port Network Moderm Router Home Automation GatewayNegotiableMOQ: 10 Units
-
Kasda KD318RI Single Ethernet Port Wired ADSL2+ Modem Router Support TR-069 IPv6NegotiableMOQ: 10 Pieces
-
Kasda KD318EUI One Ethernet Port ADSL Modem Router ADSL2+ RJ45 Phone Line ConnectionNegotiableMOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
Kasda
Model Number
KW5225_B
Specifications
1. Bonding wireless network VDSL modem router2. 1USB for printer, fallback to ADSL2+
3. 2GE and 3FE fast ethernet ports
Product Description

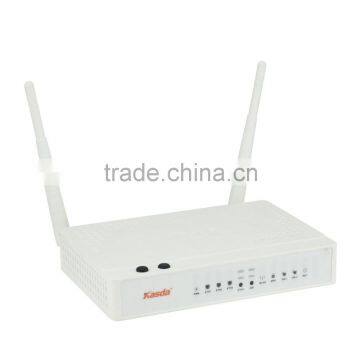

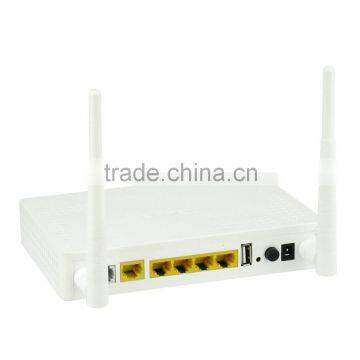

Kasda bonding 300Mbps wireless network VDSL modem router
| Product Number | KW5225(Wireless Bonding ADSL/VDSL Modem Router) | |
| Product Picture | | |
| WiFi Technology | Wireless 802.11b/ g / n AP integrated | |
| WiFi Performance | 300Mbps | |
| WiFi Range | Large homes | |
| WiFi Band | 2.4 GHz | |
| Number of Ethernet Ports | Three (3) 10/100 Mbps Ethernet ports & One (2) 10/100/1000 Mbps Ethernet ports | |
| Number of USB Ports | one | |
| Key Features | Support Fall back to ADSL/ADSL2+ | |
| 1 USB Port for printer | ||
| Easy Installation Wizard | ||
| Integrated With TR-069 Client | ||
| Transparent Bridge working mode | ||
| ITU-T:992.3(ADSL2),992.5(ADSL2+),993.2(VDSL2), 993.1 (VDSL) | ||
| Enable multimode operability with VDSL2 and ADSL2/ADSL2+ | ||
| 802.1p Qos,4 Queues support | ||
| PPPOE,PPPOA,IPOE,IPOA,Bridge service type | ||
| Multiple PVC up to 8 groups | ||
| DHCP server,relay and client | ||
| On/off LED lights option | ||
| Integrated With TR-069 Client | ||
| Security | PAP/CHAP Authentication for PPP mode | |
| NAT for basic Firewall support | ||
| Security IEEE 802.11x Supports 64/128 bits WEP, WPA, WPA2, WPA/WPA2-PSK | ||
| Support Date & Time parent control | ||
| State Packet Inspection (SPI) for Firewall with denial-of-service (DoS) protection | ||
| ALG (Application-level gateway) for NAT/PAT support | ||
| 2 Level (User/Admin) Password Authentication to Router | ||
| IP Filtering | ||
| MAC Filtering | ||
| Parental control | ||
| Processor | BCM63168 | |
| Memory | 8 MB flash and 64 MB RAM | |
| Physical Specifications | Dimensions: 6.89*4.72*1.38 in(175*120*35 mm) | |
| Weight: 0.88 lbs(400 g) | ||

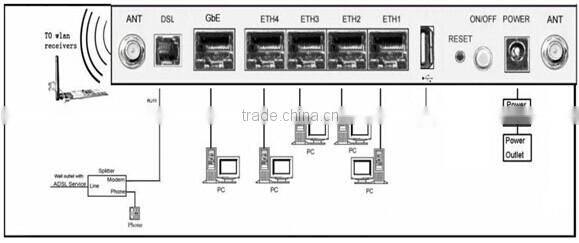

| Product Diagram |
| |
| Package Contents | DSL Router | |
| Telephone Line | ||
| Antennas | ||
| Ethernet cable | ||
| External Splitter | ||
| Power adapter | ||
| Standards | IEEE® 802.11 b/g/n 2.4GHz | |
| Three (3) 10/100 Mbps Ethernet ports & One (2) 10/100/1000 Mbps Ethernet ports | ||
| System Requirements | Microsoft® Windows 7, 8, 8.1, Vista®, XP®, 2000, Mac OS®, UNIX®, or Linux® | |
| Microsoft® Internet Explorer® 5.0, Firefox® 2.0, Safari® 1.4, or Google Chrome™ 11.0 browsers or higher | ||
| Warranty | 1 year warranty |
