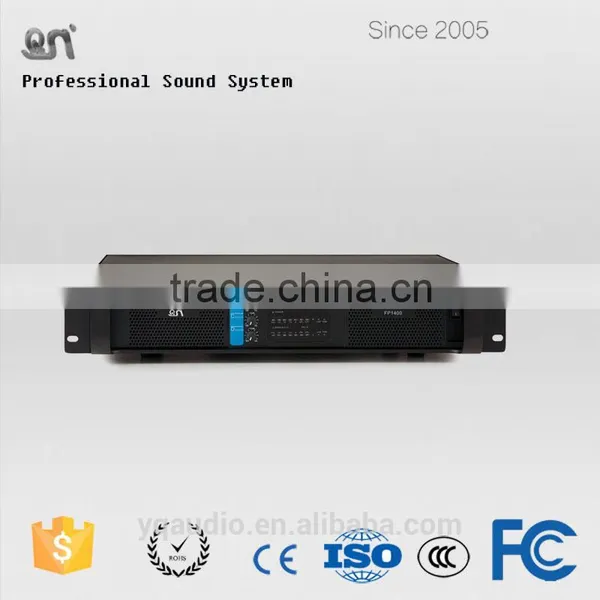

Factory direct sound audio power amplifier 10000w

FOB Price

USD $250 - $450 / Piece

1 Piece(Min.Order)

Product Details

Brand Name:

QSN

Model Number:

FP10000Q

Place of Origin:

Guangdong, China

Factory direct sound audio power amplifier 10000w

FP Series	FP7000	FP9000	FP14000	FP8000Q	FP10000Q
8ΩStereo Power(RMS)	1500WX2	1800WX2	2350WX2	800WX4	1350WX4
4ΩStereo Power(RMS)	2800WX2	3000WX2	4400WX2	1400WX4	2700WX4
2ΩStereo Power(RMS)	3500WX2	4500WX2	7000WX2	1600WX4	2500WX4
8ΩBridged Power(RMS)	5600W	6000W	8800W	2800WX2	4200WX2
4ΩBridged Power(RMS)	7000W	9000W	14000W	3200WX2	5000WX2
Frequency Response(+o/-0.3dB,1W/8Ω)	20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W	<0.1%
Signal-to-Noise Ratio	>112 dBA
Channel separation (Crosstalk) at 1 kHz	>70 dB
Input Connectors (per channel)	3-pin XLR, electronically balanced
Output Connectors (per channel)	Binding Posts 2-pole
Class	TD
TourClass Protection	ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 230 V / 115 V nominal	130-265 V / 65-135 V selectable
Voltage Gain(dB)	23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance	20 kOhm
Level adjustment (per ch.)	Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D)	483×88×396mm
Packing dimension	580×180×560mm
Net weight(kg)	12
Gross weight(kg)	15
