Professional Extreme Fp10000q 4 Channel Class td Power Amplifier

FOB Price

US$ 250 - 450 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	QSN		Model Number	FP10000Q
Place of Origin	Guangdong, China

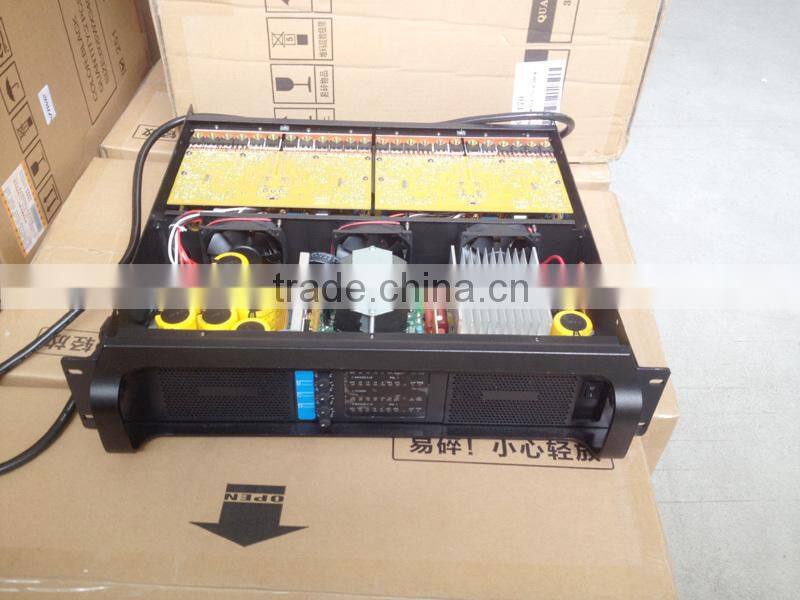

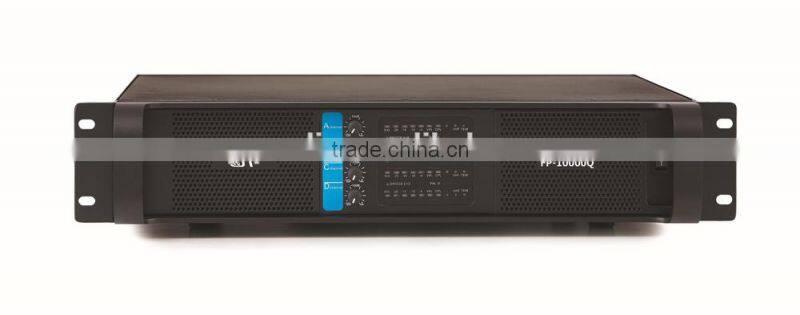

Professional extreme fp10000q 4 channel class td power amplifier

FP Series	FP7000	FP9000	FP14000	FP8000Q	FP10000Q
8ΩStereo Power(RMS)	1500WX2	1800WX2	2350WX2	800WX4	1350WX4
4ΩStereo Power(RMS)	2800WX2	3000WX2	4400WX2	1400WX4	2700WX4
2ΩStereo Power(RMS)	3500WX2	4500WX2	7000WX2	1600WX4	2500WX4
8ΩBridged Power(RMS)	5600W	6000W	8800W	2800WX2	4200WX2
4ΩBridged Power(RMS)	7000W	9000W	14000W	3200WX2	5000WX2
Frequency Response(+o/-0.3dB,1W/8Ω)	20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W	<0.1%
Signal-to-Noise Ratio	>112 dBA
Channel separation (Crosstalk) at 1 kHz	>70 dB

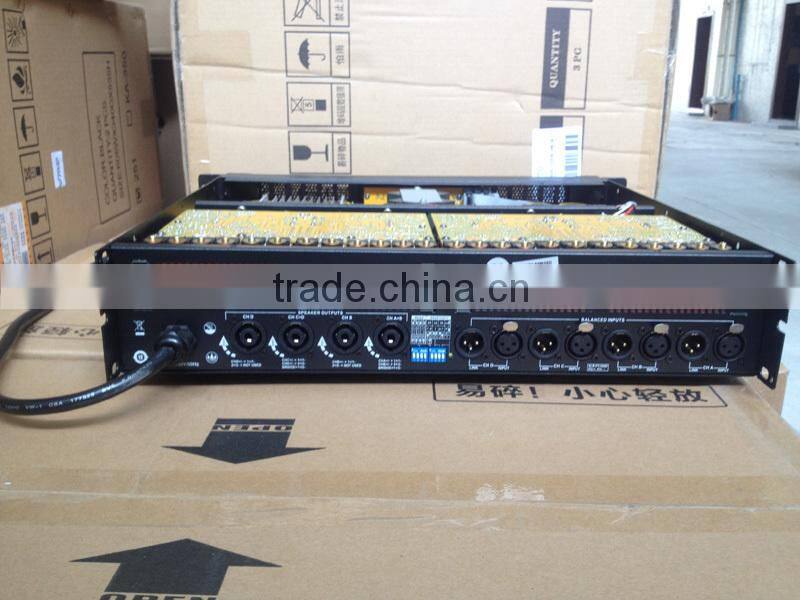

Input Connectors (per channel)	3-pin XLR, electronically balanced
Output Connectors (per channel)	Binding Posts 2-pole
Class	TD
TourClass Protection	ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 230 V / 115 V nominal	130-265 V / 65-135 V selectable
Voltage Gain(dB)	23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance	20 kOhm
Level adjustment (per ch.)	Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D)	483×88×396mm
Packing dimension	580×180×560mm
Net weight(kg)	12
Gross weight(kg)	15

Company introduction

Founded in 2005 with the register capital of RMB 2,000,000 Yuan,Guangzhou Yunqiang Electronics Co.Ltd

is a manufacturer specialized in the research,development and production of professional speaker and

power amplifier.We are located in NO.8,Longhu industrial park,Longhu Village,Shijing Town,Baiyun district

Guangzhou,China(Mainland).Our main product include: power amplifier,pro speaker,line array,subwoofer,

pro karaoke equipment,conference system,professional peripheral,microphone and mixers etc.

We are one of creators in china professional audio industry.Covering an area of 5000 square meters,we

now have over 80 employees and boast an annual sales figure that exceed RMB22,000,000 Yuan,and we

have a 30 percent increase in sales every year.We have both power amplifier engineers and pro speaker

engineers with over 10 years rich experience.Since establishment,we devote our-self to professional

audio industry.Now we have earned many honors and awards.
