Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Collector > MGV Heat Pipe Tube Pressure Solar Collector

MGV Heat Pipe Tube Pressure Solar Collector

Name: MGV Heat Pipe Tube Pressure Solar Collector
Brand: Jiadele
SKU: 113333467
Availability: InStock

MGV Heat Pipe Tube Pressure Solar Collector thumbnail-1

MGV Heat Pipe Tube Pressure Solar Collector photo-1

US$ 250 - 800 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Jiadele

Model Number:

JDL-MGV

Contact Supplier Request Quote Chat Now

Zhejiang Jiadele Solar Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Jiadele

Model Number JDL-MGV

Type Pressurized

Application Solar Thermal

Pipe Material Glass

Specifications

MGV heat pipe tube pressure solar collector
1. Perfect reliability
2. Long services-life, over 20 years
3. Low spe

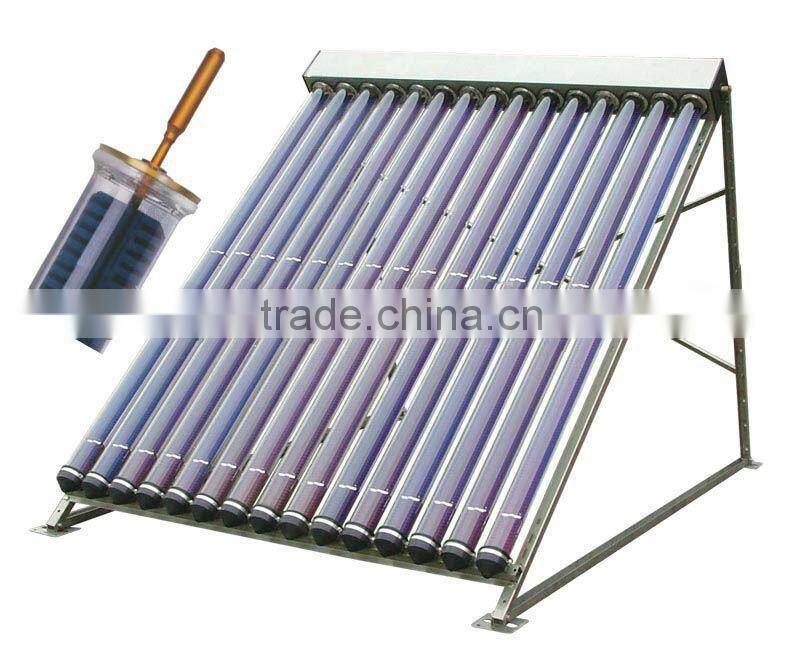

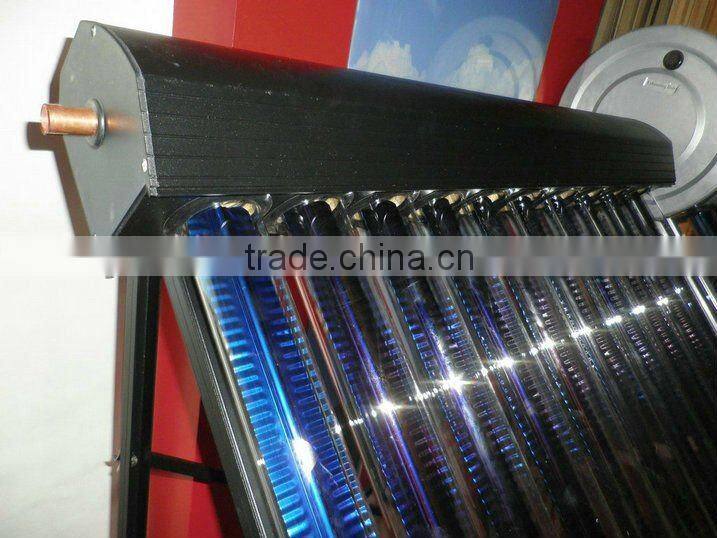

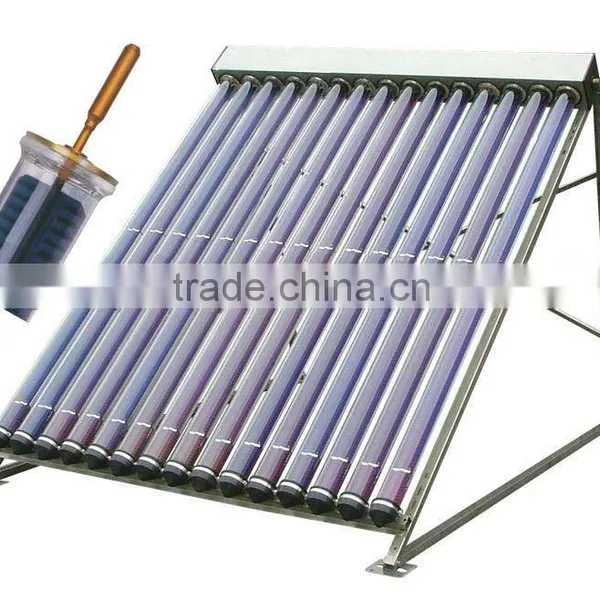

MGV heat pipe tube pressure solar collector

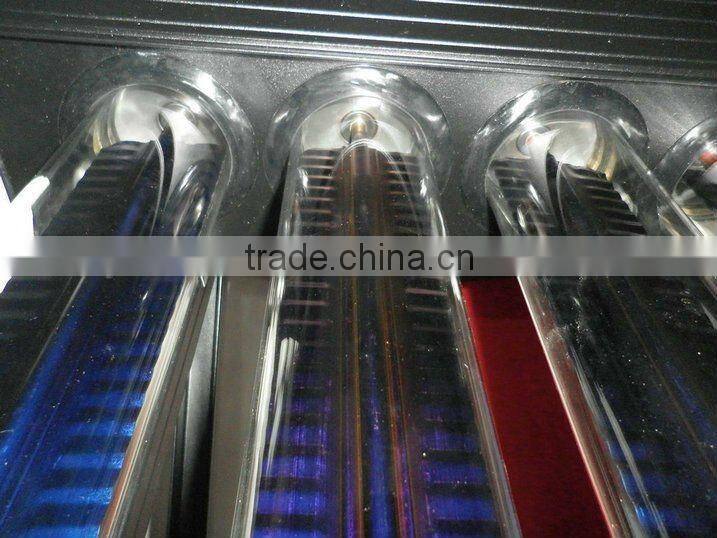

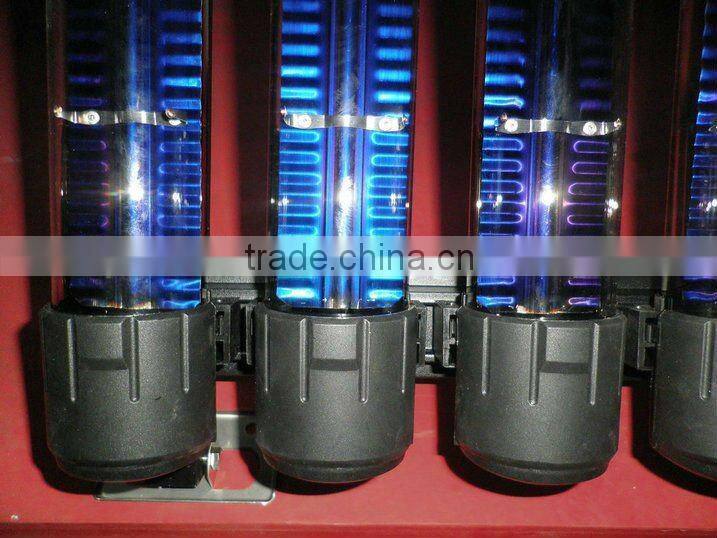

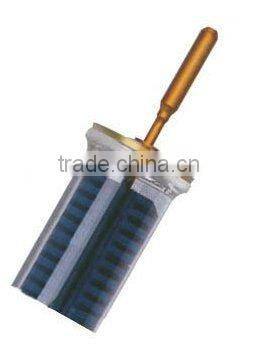

φ70mm MGV Heat Pipe Tube is one of the core technologies of JIADELE , it’s more suitable for middle temperature applications. It has a bigger absorber area with characteristics of strong resistance of very low temperature, better thermal performance, higher operating temperature and wide range of applications.

Features

1. Perfect reliability

2. Long services-life, over 20 years

3. Low specific heat capacity, fast start up

4. Easy installation, convenient maintenance

5. High heat efficiency, higher than that of normal vacuum tube

6. No water flows inside the tube, anti-scaling, preventing tube from frozen to crack in extreme cold environment (-50°C)

7. High vacuum grade (10-8 bar) guarantees high efficiency even in cloudy day, cold environment and high-temperature application

Technical Data:

Model	JDL-MGV10-70	JDL-MGV15-70	JDL-MGV20-70
Number of Tubes	10	15	20
Gross Area	2.27 m²	3.27 m²	4.26 m²
Absorber Area	1.04 m²	1.56 m²	2.08 m²
Weight	45 kg	60 kg	80 kg
Dimensions	1990×1140mm	1990×1640mm	1990×2140mm
Max Working Pressure	6 bar
Max Stagnation Temperature	250°C
Absorber Coating	SS-ALN-CU (σ>0.95 ε<0.05 )
Long-term Vacuum	10^-8 bar
Frost resisting	-50°C
Max. Working Temp.	300°C
Hail Resistance	Ø35mm

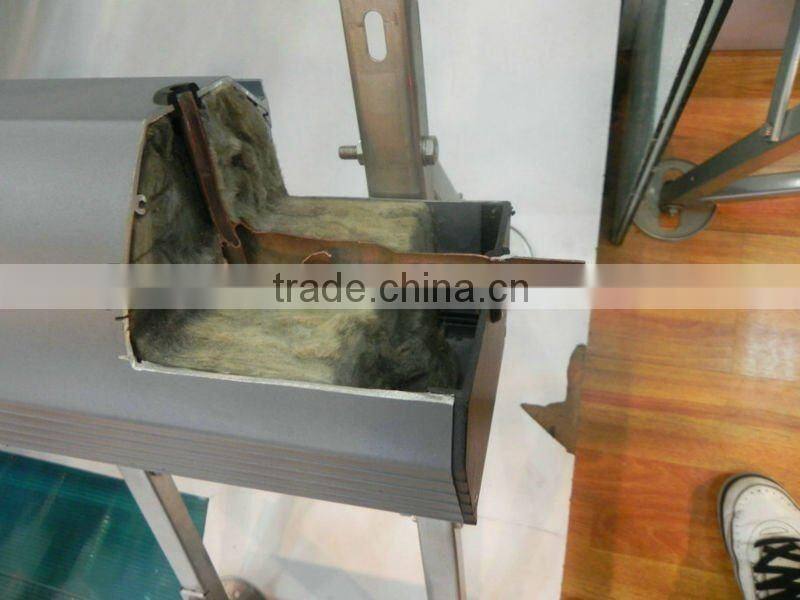

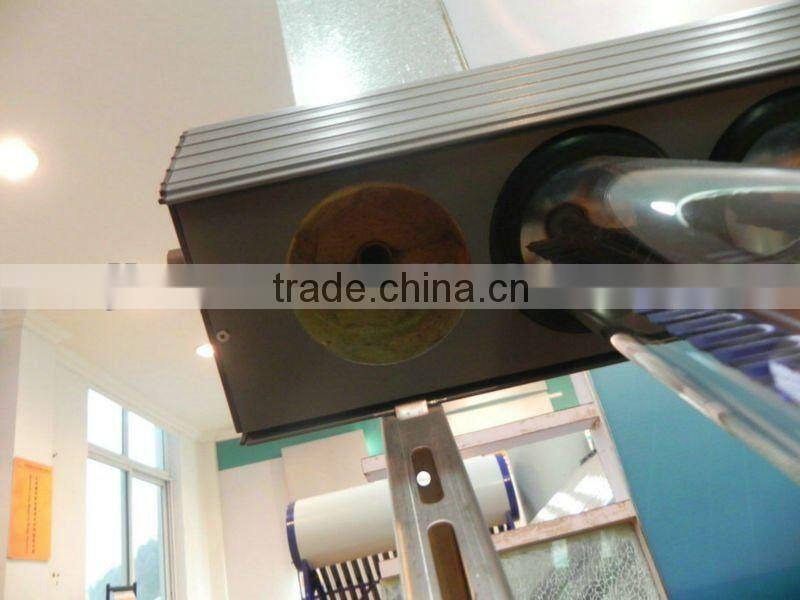

Manifold Shell	Frosted Aluminum Alloy (Grey or Black painting)
Insulation	Rock Wool, 50mm thickness, 180kg/m³
Frame	Stainless Steel or Aluminium Alloy
Recommended Installation Angle	15°~ 90°

High anti-frozen ability,Applied in hotel, school, hospital, bathroom, natatorium and housing centralized hot water projects; also applied in the swimming pool heating,the solar air-conditioning and the seawater desalination and other emerging area of technology fields.
