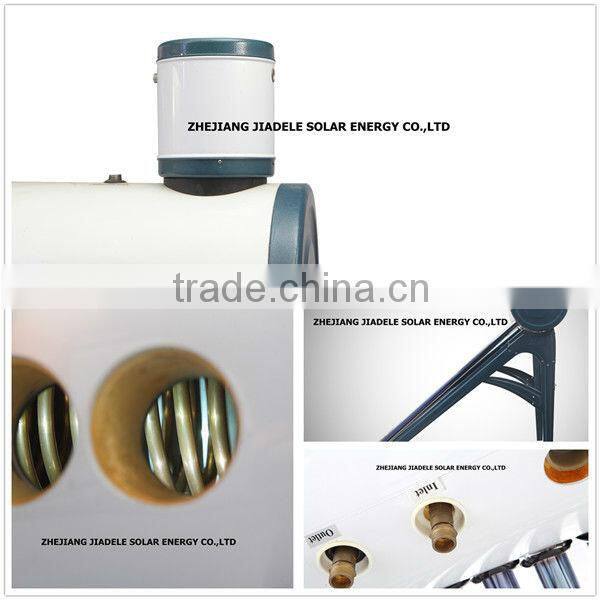

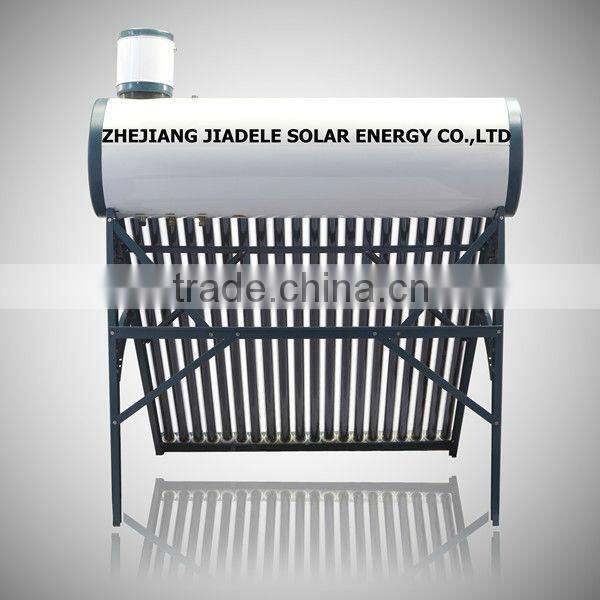

Pre-heated Solar Water Heater

CHARACTERISTICS

Key Specification:

Instant heat exchange; plentiful warm water for use

Fresh water quality

Works with pressure

Output water temperature is stable, so it is very comfortable and safe to use

Hot and cold water flow is separated

Copper coil is tested and does not break; high grade materials are used

MATERIAL

1)  Inner tank: stainless steel SUS304--0.50mm

2)  Vacuum tube: QB-AL-SS/CU-58-1800

3)  Outer tank: galvanized steel

4)  Frame: coated galvanized steel-1.5mm

5)  The material of insulation: polyurethane

6)  The reflector: aluminum

7)  Copper coil: Φ12mm, thickness 1.0mm

PARAMETER TABLE-1

REMARK

*Solar heat storage tank diameter(mm):360/480

*Thickness,insulated(mm):50

*Max.Fluid pressure(Pa):1MPa

*Operation fluid pressure(Pa):0.4MPa

*Coil connection(inch):1/2

*Hot-outlet(inch):1/2

*Cold-inlet(inch):1/2

*Small tank connection(inch):1/2

*Electric heater connection(inch):1.25
