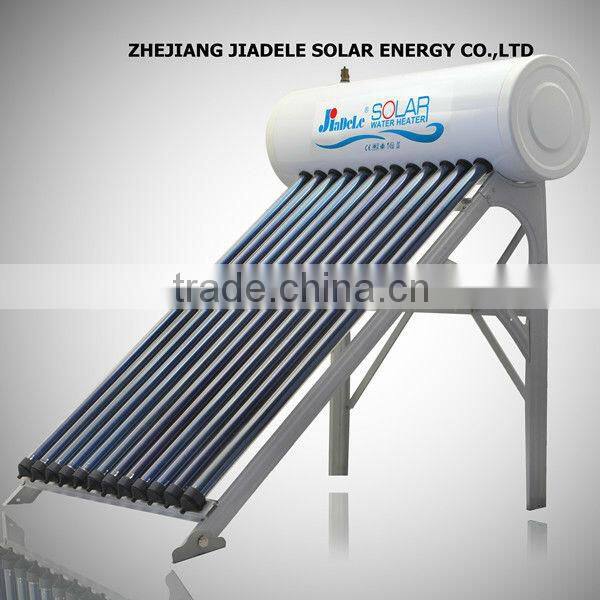

Compact Pressurized Solar Water Heater

CHARACTERISTICS

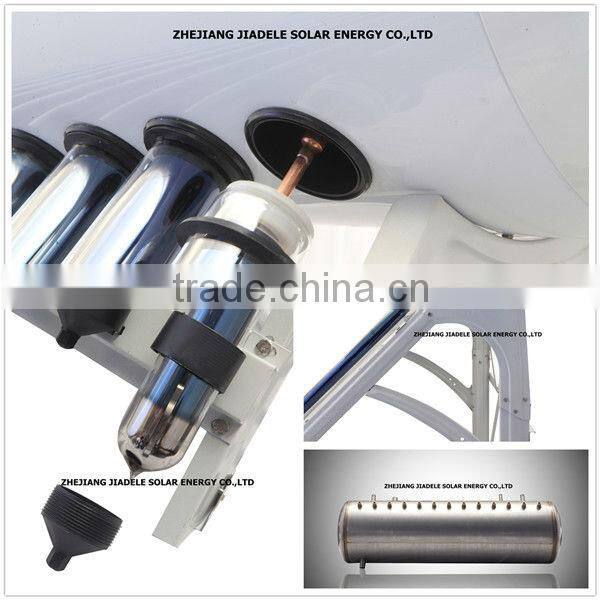

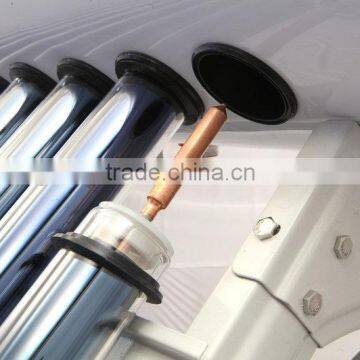

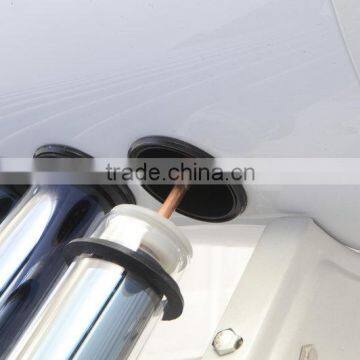

Work with high pressure. Therefore, the warm water comes out with pressure too. It uses the heat pipe to deliver heat energy, water is heated rapidly. Each tube can work alone, so it can work even if one tube is broken.

Key Specification:

1)  inner tank: SUS 304-2B food grade stainless steel sheet, thickness:1.2mm

2)  outer tank: galvanized steel, thickness:0.40mm

3)  frame: galvanized sheet with electrostatic plastic coating, thickness: 1.5mm

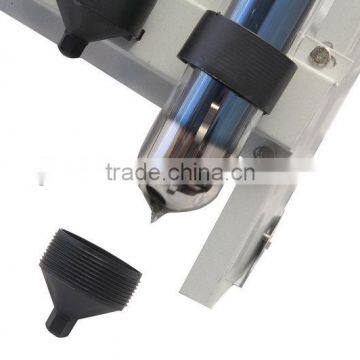

4)   vacuum tube: high boron silicon glass with aluminum/red copper/ stainless steel bloomed, ST=300;

5)  insulation layer: Polyurethane, thickness: 55mm

PARAMETER TABLE-1

REMARK

Solar heat storage tank diameter(mm):365/480

Thickness, insulated(mm):55

Vent connection(inch):3/4

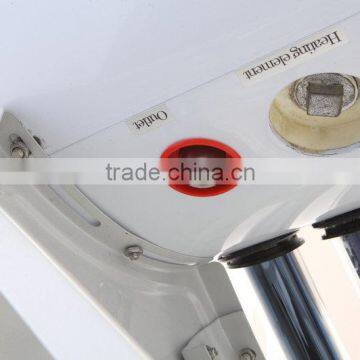

Electric heater connection(inch):1.25

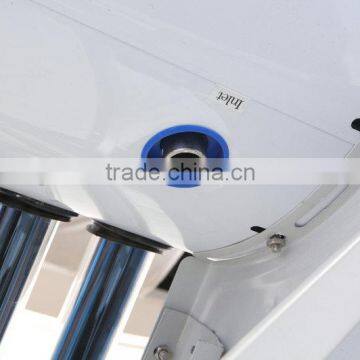

Water connection(inch):3/4

Collector angle(degree):20/45

Test pressure(pa):0.9MPa

Operating fluid ppressure(pa):0.6MPa

Distance from tube to tube:80
