pressure solar water heater with copper coil

FOB Price

USD $100 - $300 / Set

1 Set(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Evacuated Tube	Pressure	Pressurized
Circulation Type	Indirect / Closed Loop (Active)	Heating System	Thermosyphon (Passive)
Connection Type	Direct-Plug	Installation	Freestanding
Housing Material	Stainless Steel	Certification	CE, Other, CE, ISO9001:2008,KC,SOLAR KEYMARK,SRCC
Capacity	260	Place of Origin	Zhejiang, China
Brand Name	Jiadele	Model Number	JDL-CC solar water heater

Product Description

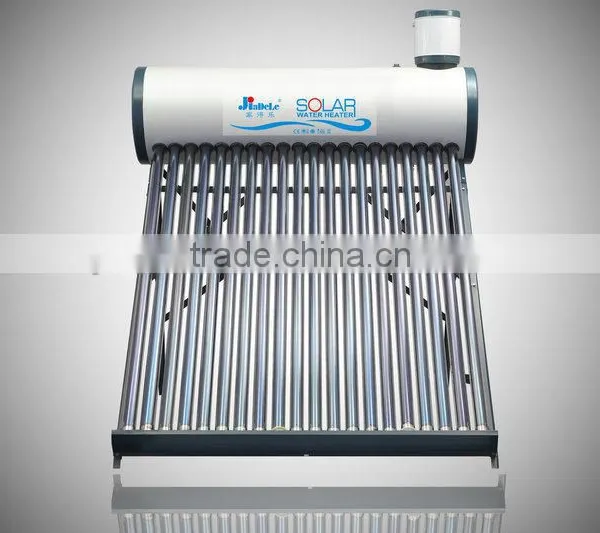

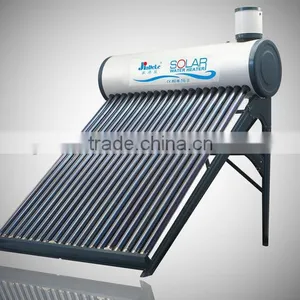

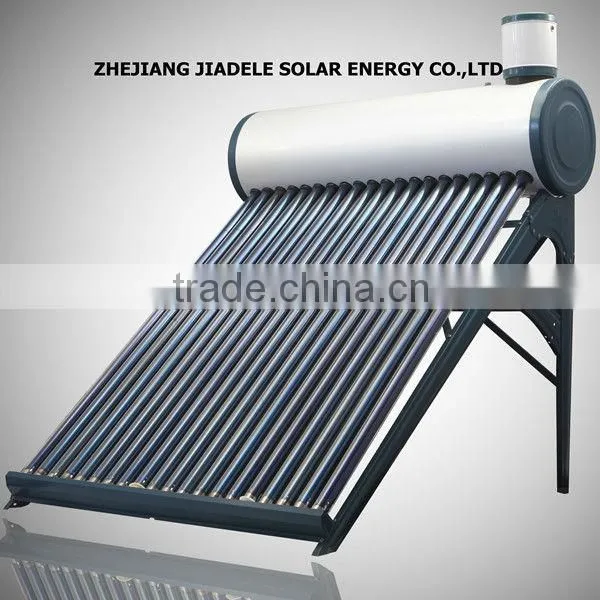

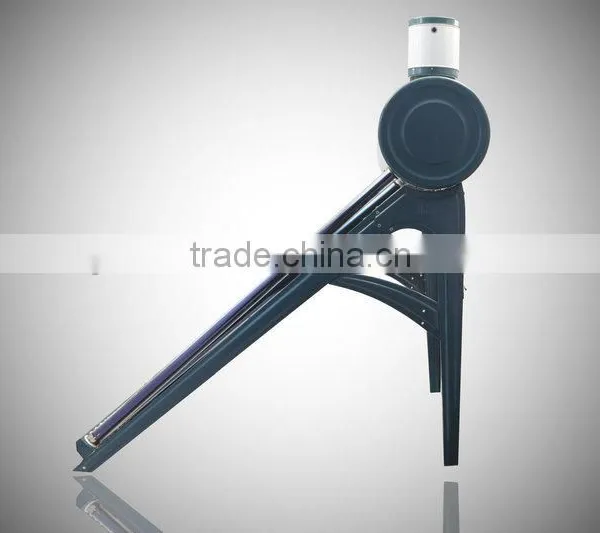

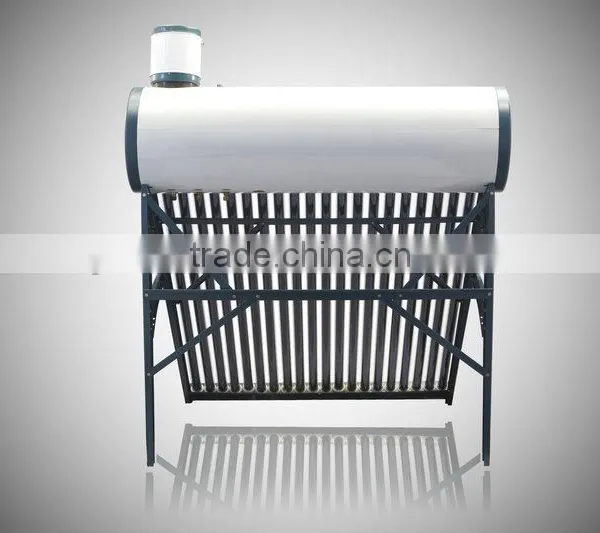

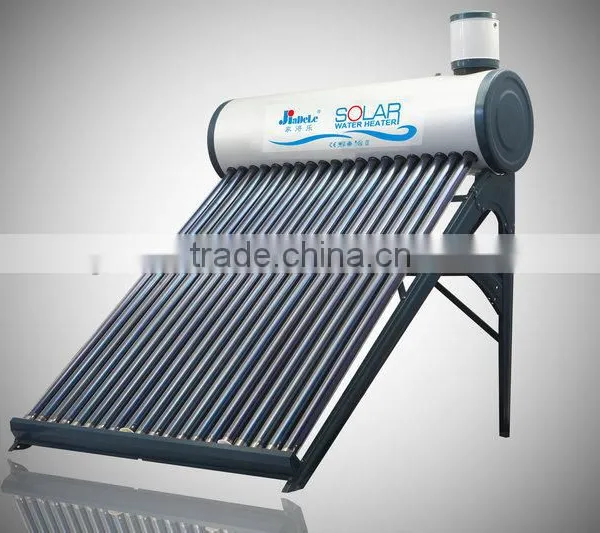

pressure solar water heater with copper coil

CHARACTERISTICS

*Instant heat exchange;plentiful warm water for use

*Fresh water quality

*Works with pressure

*Output water temperature is stable,so it is very comfortable and safe to use

*Hot&cold water flow is separated

*Copper coil is tested and does not break;high grade materials are used

*Works intelligently and easy and is very reliable

*Perfect operation

MATERIAL

*Inner tank:stainless steel SUS304-0.50mm

*Vacuum tube:QB-AL-SS/CU-58-1800(AL-SS/CU)Dia 58x1800mm

*Outer tank:Galvanized steel/color steel/stainless steel

*Frame:coated galvanized steel-1.5mm;stainless steel 201

*The material of insulation:polyurethane

*The reflector:aluminum

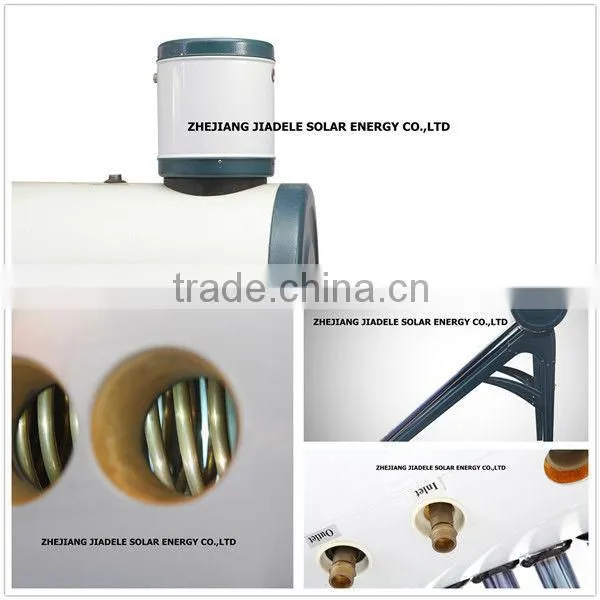

*Copper coil:Dia 12mm,thickness 1.0mm

PARAMETER TABLE-1

Type (One)	Area(m²)	Vacuum tube			Energy exchange area(m²)	Volume (liters)	Gross wet(kg)	Volume/set (Cubic meter)
Type (One)	Area(m²)	Length(mm)	Dia(mm)	Qty(pcs)	Energy exchange area(m²)	Volume (liters)	Gross wet(kg)	Volume/set (Cubic meter)
JDL-CC20-58/1.9	2.8	1900	58	20	1.041	172	120	0.75
JDL-CC24-59/1.9	3.3	1900	58	24	1.106	206	138	0.9
JDL-CC30-58/1.9	4.1	1900	58	30	1.171	260	164	1.15

REMARK

*Solar heat storage tank diameter(mm):360/480

*Thickness,insulated(mm):50

*Max.Fluid pressure(Pa):1MPa

*Operation fluid pressure(Pa):0.4MPa

*Coil connection(inch):1/2

*Hot-outlet(inch):1/2

*Cold-inlet(inch):1/2

*Small tank connection(inch):1/2

*Electric heater connection(inch):1.25
