Home > Products > heat pipe solar collector > Pressurized Solar Collector with heat pipe

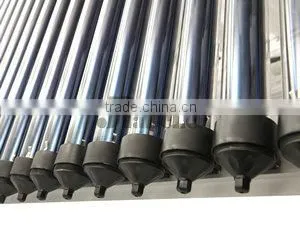

Pressurized Solar Collector with heat pipe
- 2000 Set / Sets per Month
- Shanghai/ Ningbo/ Hangzhou
- High Efficiency Full Black Solar Cells Panel factory Prices For Sale PV Module 400W Solar Panels
- 500w Solar Panel,Pv Module 500w,Solar Panels High Efficiency Full Black500w Solar Panel,Pv Module 500w,Solar Panels High Efficiency Full Black
- 500W High Power Monocrystalline 72 Solar Cells Solar Module Photovoltaic Panel
- high efficiency 550w 600w Customized solar panels half cell photovoltaic module manufacturer
- Shunyang warehouse in stock 540W 550W 560W photovoltaic solar panels made in China
- Shunyang solar 640W Hot selling photovoltaic solar panels with good quality and wholesale price
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | JIADELE | Model Number: | JDL-PM30-58/1.8 |
Type: | Vacuum Solar Collector | Application: | Solar Thermal | Pipe Material: | Other, solar vacuum tube with heat pipe |
Product Description

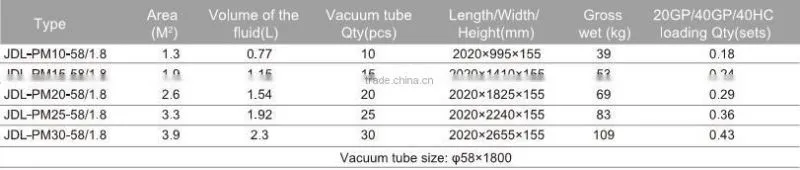

Specifications
Pressurized Solar Collector with heat pipe2) SK SRCC CE ISO9001approved
3) highest efficiency
4) best quality
5) special

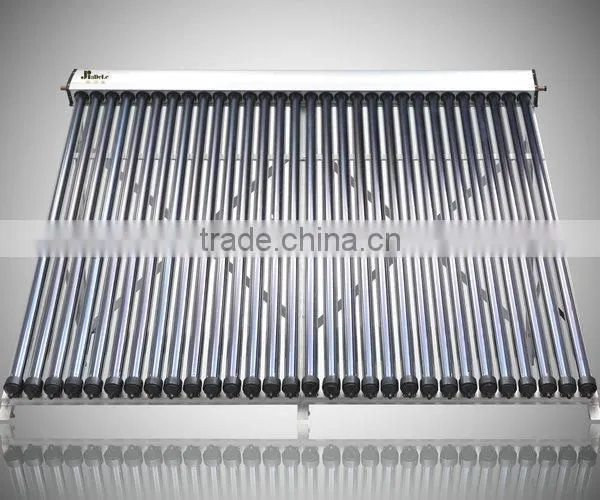

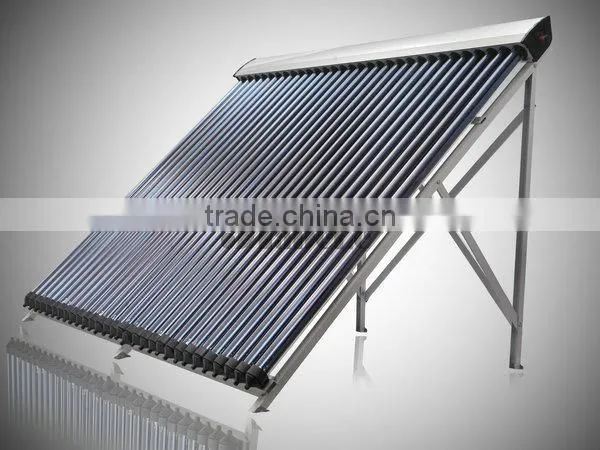

Pressurized Solar Collector with heat pipe
Key Specification:
Water is rapidly heated by the heat pipe
There is no water in the vacuum tube, so the tube will not break in winter
The small size of the collector allows for versatile architectonic integration
Collector can be combines with existing pipeline
The collector can operate even in case of a broken tube. A single tube can if necessary be exchanged without interruption of the heating cycle.
Material:
Outer tank: aluminum alloy 2.0mm
Frame is made of aluminum alloy.
Color: silver/black
Remark:
Manifold connection(inch):1/2 3/4
Test pressure(pa):1MPa
Operating fluid ppressure(pa):0.6MPa
Max. service temperature:95
Max. stagnation temperature:242
Distance from tube to tube:75
Flow range recommendation:50-150l/m2h
Insulation thickness(mm):40
Min. collector angle(degree):15
Max. collector angle(degree):75
Payment:T/T
Delivery time:10 days
Minimum order:1 set
Shipping port:Shanghai or Ningbo
