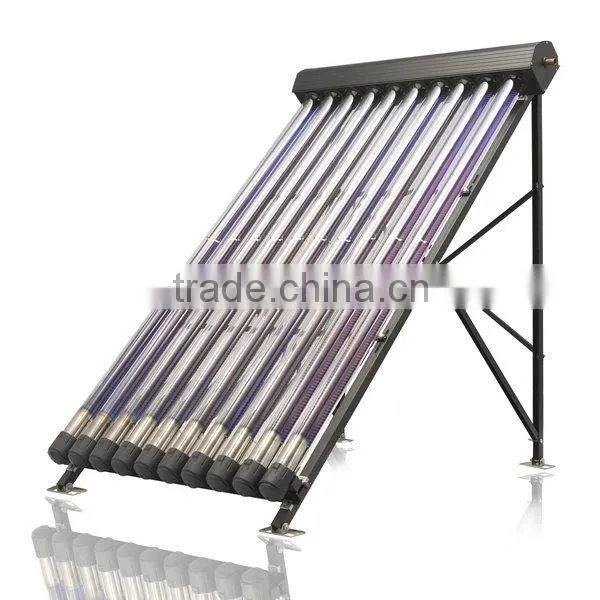

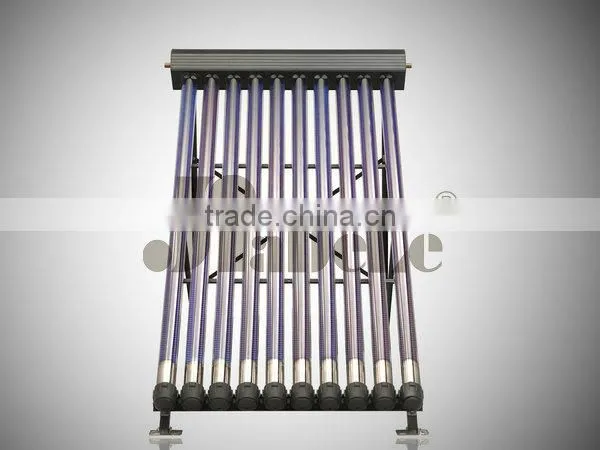

Pressurized solar collector with 70mm metal glass vacuum heat pipe tube

Specifications

1.Pressurized solar collector with 70mm metal glass vacuum heat 2.pipe tube
3.With characteristic of 30 second heat output

Pressurized solar collector with 70mm metal glass vacuum heat pipe tube



Brief Introduction:

The 70mm metal glass vacuum heat pipe tube is fully evacuated. The solar energy passes though the glass and is absorbed by the selective coating on the aluminum absorber, thus it becomes hot. The heat is transferred directly to the heat pipe, making the heat-transport liquid inside evaporated very fast. The evaporation steam goes up to the condenser on the top and the heat is transferred to the heat transfer fluid inside the pipe, and therefore the heat is kept inside the water tank.

Features:

With characteristic of 30 second heat output and 300 °C condenser stagnation temperature, it can provide more water of higher temperature and have wider applications. “Dry” connection design makes the system workable even though one tube breaks. Excellent insulation enables the collector suitable for any environment all over the world. Recommended installation angle: 15°~90°.



Technical Data:



Model	JDL-MGV10-70	JDL-MGV15-70	JDL-MGV20-70
Number of Tubes	10	15	20
Gross Area	2.27 m2	3.27 m2	4.26 m2
Absorber Area	1.04 m2	1.56 m2	2.08 m2
Weight	45 kg	60 kg	80 kg
Dimensions	1990×1140mm	1990×1640mm	1990×2140mm
Max Working Pressure	6 bar
Max Stagnation Temperature	250°C
Absorber Coating	SS-ALN-CU (σ>0.95  ε<0.05 )
Long-term Vacuum	10-8 bar
Frost resisting	-50°C
Max. Working Temp.	300°C
Hail Resistance	Ø35mm
Manifold Shell	Frosted Aluminum Alloy (Grey or Black painting)
Insulation	Rock Wool, 50mm thickness, 180kg/m3
Frame	Stainless Steel  or Aluminium Alloy
Recommended Installation Angle	15°~ 90°



High anti-frozen ability,Applied in hotel, school, hospital, bathroom, natatorium and housing centralized hot water projects; also applied in the swimming pool heating,the solar air-conditioning and the seawater desalination and other emerging area of technology fields.
