ac 12v/24v 300w vertical wind generator features
1,VAWTs are better able to harvest turbulent air flow found around buildings and other structures
2,VAWTs are ideal for both rural and urban applications, including roof top installations. Depending
on the shape of the roof, the wind flow over the roof can be concentrated, leading to an increased
energy output
3,Simple to install and maintain
ac 12v/24v 300w vertical wind generator technical data
Rated power | 300w |
Maximum power | 330w |
Rated voltage | 12/24v |
Start-up wind speed | 1.3m/s |
Rated wind speed | 11.5m/s |
Survival wind speed | 45m/s |
Top net weight | 15kg |
Packaging size | 64x43x32cm |
Wheel diameter | 0.8m |
wheel height | 0.6m |
Number of blades | 5 |
Blades material
| nylon fiber |
Generator
| three phase ac permanent magnet generator
|
Magnet
| NdFeB |
Generator case
| aluminum alloy
|
Control system
| electronic magnet
|
Speed regulation
| auto windward
|
Working temperature | -40-80°C
|

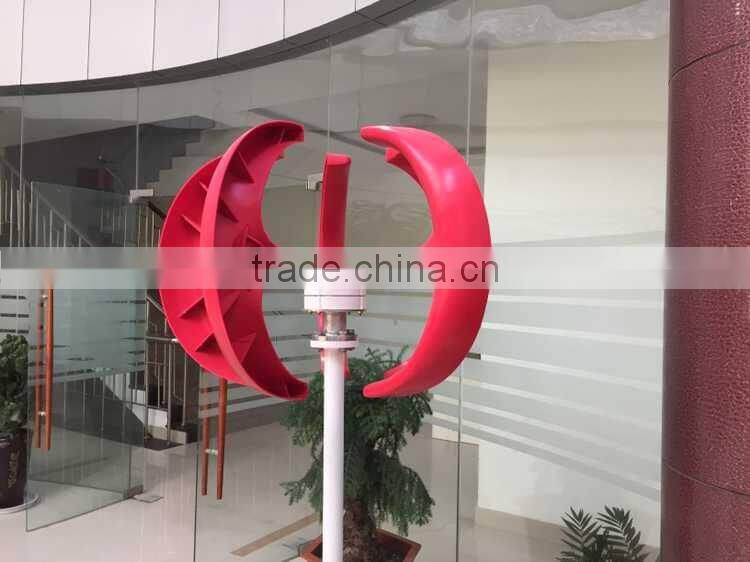

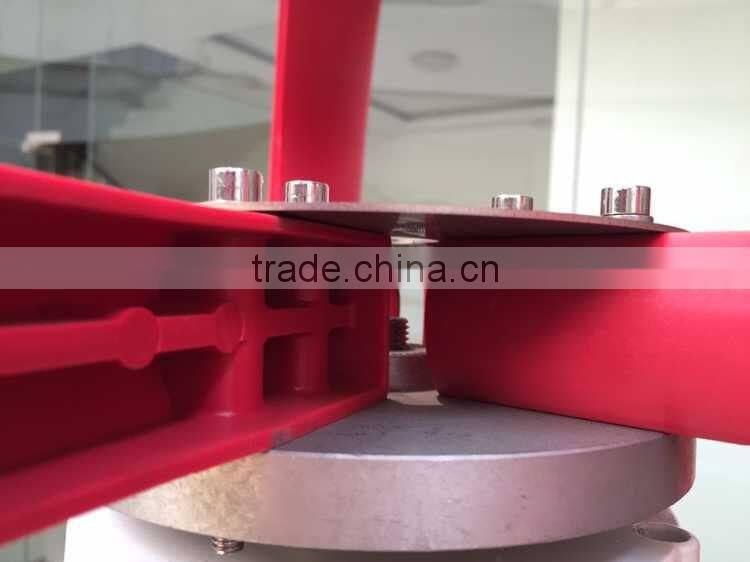

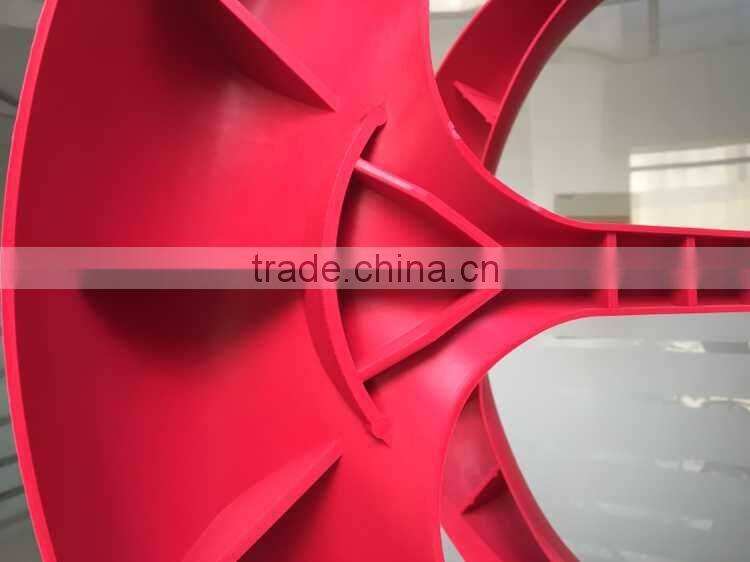

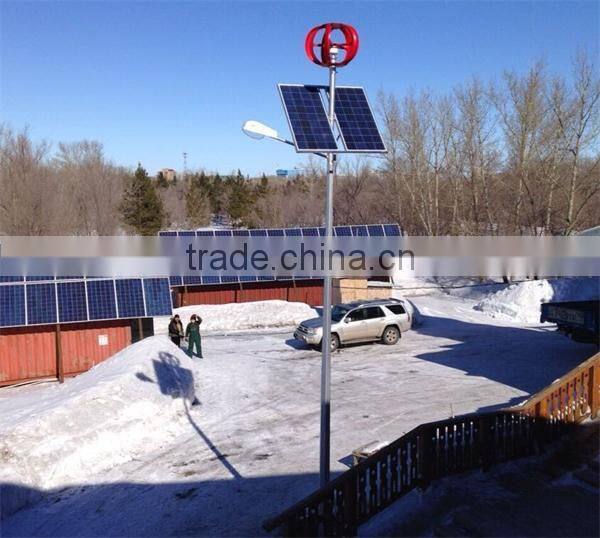

ac 12v/24v 300w vertical wind generator pictures
