200w 12/24v windmill generator hybrid solar

Specifications

1,Security, stability.easy to start up
2,Anti-corrosion treatment.
3,Running low vibration.
4,ISO EU certification.

200w 12/24v windmill generator hybrid solar features:

1,VAWTs are better able to harvest turbulent air flow found around buildings and other structures

2,VAWTs are ideal for both rural and urban applications, including roof top installations. Depending on the shape of the roof, the wind flow over the roof can be concentrated, leading to an increased energy output

3,Simple to install and maintain



200w 12/24v windmill generator hybrid solar techical parameters:



Model	H-200w
power	200w
Wheel  diameter	1m
Blade  height	1.2m
Blades  material	Reinforced glass fiber
Number  of  blades	5
Rated  rotate s peed	200r/min
Rated  wind  speed	8-10m/s
Start-up  wind  turbine	1.6m/s
Rated  wind  speed	1.5-25m/s
Survival  wind  turbine	50m/s
Output  voltage	12v
tower	Guyed cable tower
Tower  height	6m

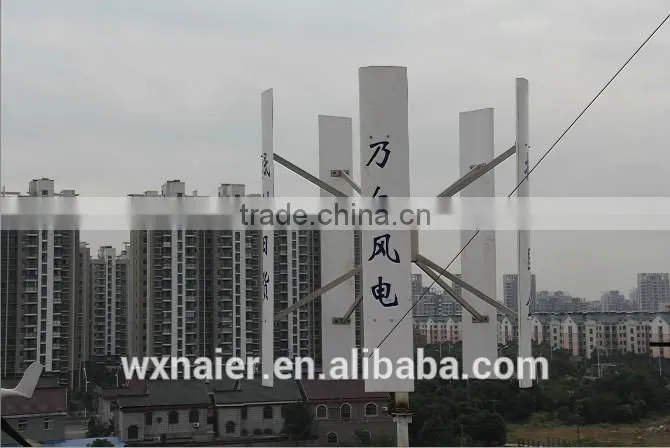

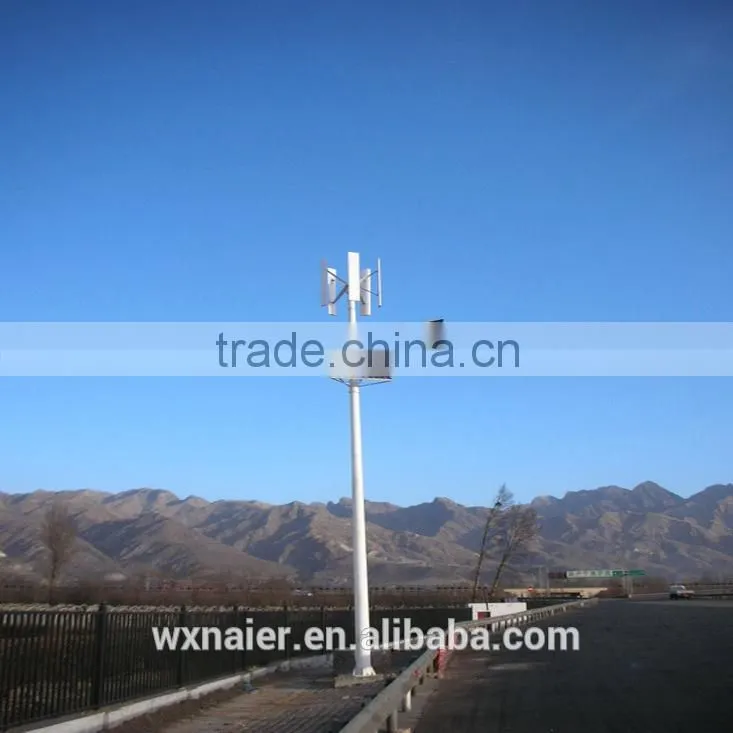

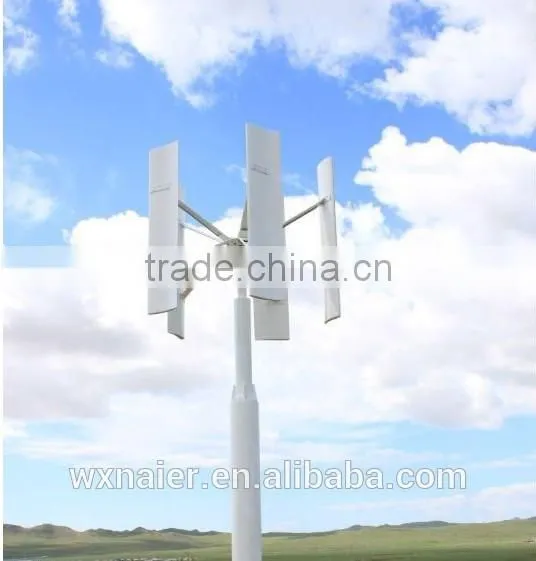

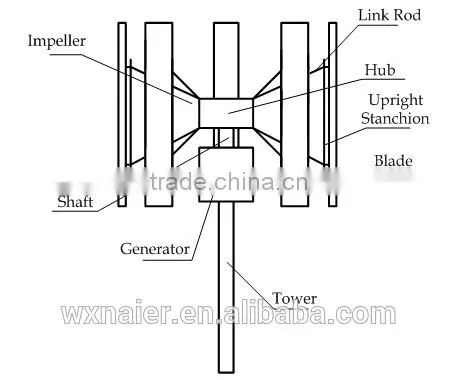

200w 12/24v windmill generator hybrid solar pictures:













About us:



Certification:
