1500w Wind Turbine Informationaa
1500w wind turbine parameters
Model |
NE-1500L |
Rated power |
1500W |
Maximum power |
1700W |
Rated voltage |
48/96V |
Start-up wind speed |
2.5m/s |
Rated wind speed |
10m/s |
Survival wind speed |
45m/s |
Top net weight |
48kg |
Wheel diameter |
3.2m |
Number of blades |
3 |
Blades material |
Reinforced glass fiber |
Generator type |
Three phase permanent magnet AC synchronous generator |
Magnet material |
NdFeB |
Generator case |
Casting aluminum alloy |
Control system |
Electromagnet/wind wheel yaw |
Speed regulation |
Tail furling |
Working temperature |
-40°C - 80°C |
Design life |
20 y |
Certificates |
CE, ISO14001, ISO9001, TUV |
1500w wind turbine features
1.Carbon steel body, compact, safe.
2.Reinforced glass fiber blades, matched with optimized aerodynamic shape and structure.
3.Patented permanent magnet ac generator with special stator,effectively reduce torque.
4.Tail adopts mechanical yaw technique, making it survive storm and run safely.
5.With epoxy zinc rich primer and polyurethane anti-corrosion treatment, be ultraviolet-proof, acid rain resistant, salt resistant.

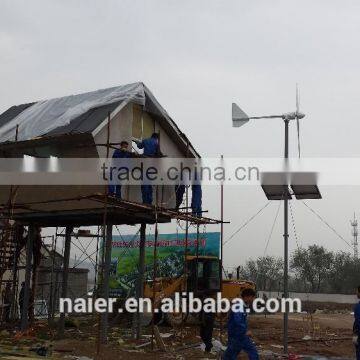

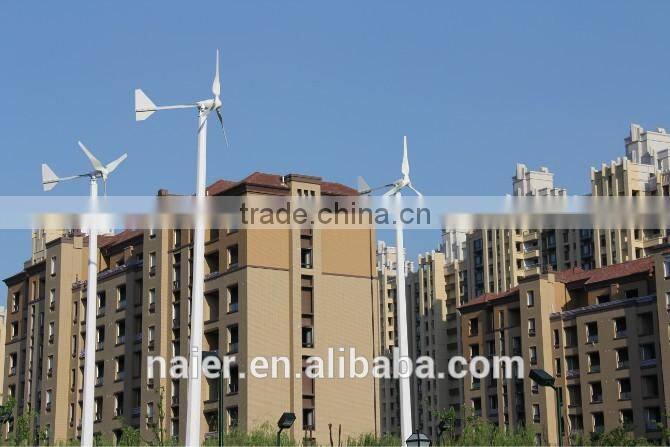

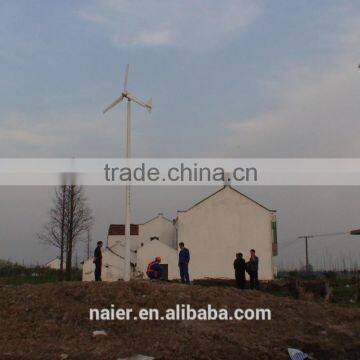

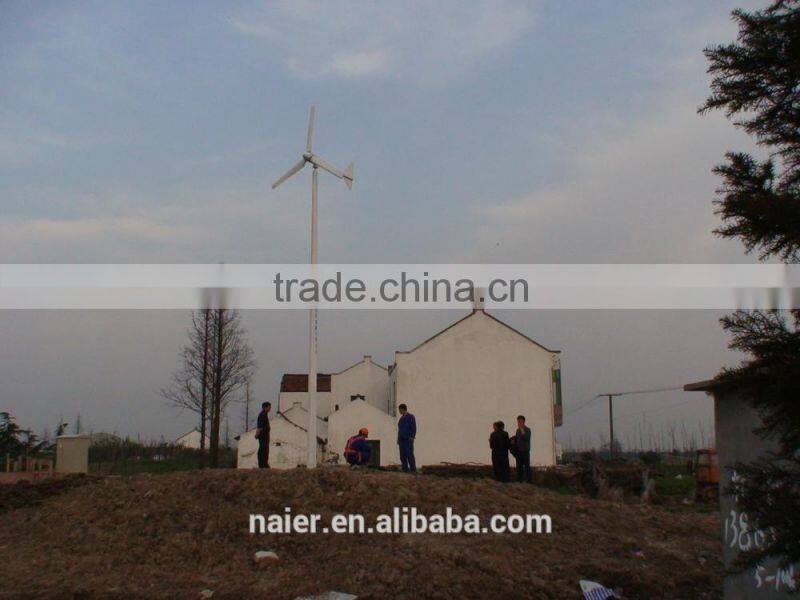

1500w wind turbine various fields projects

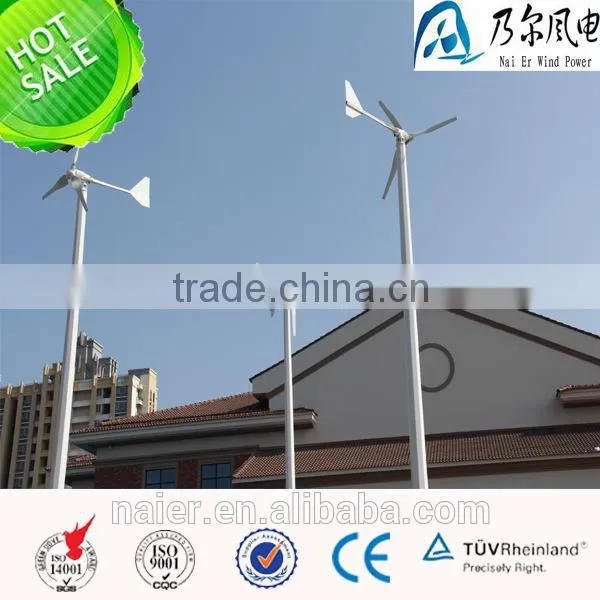

Wind turbine system display

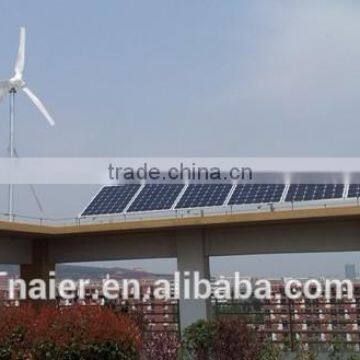

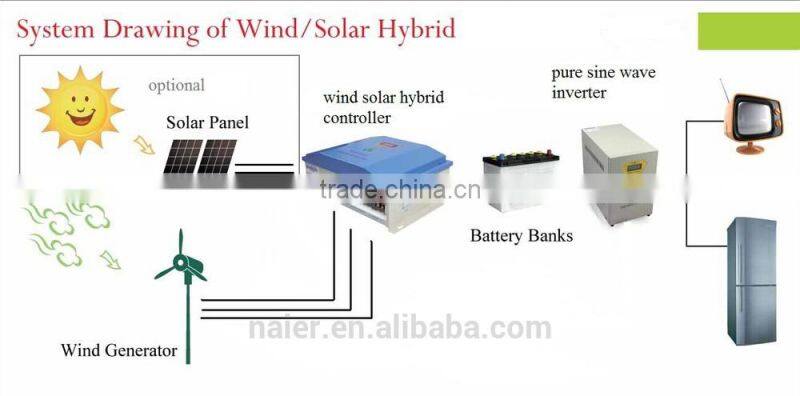

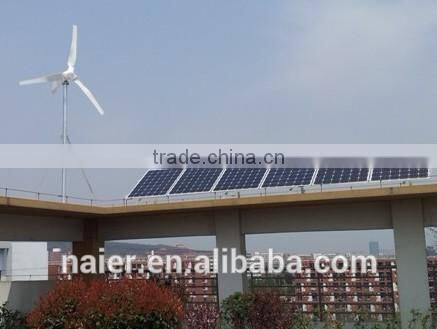

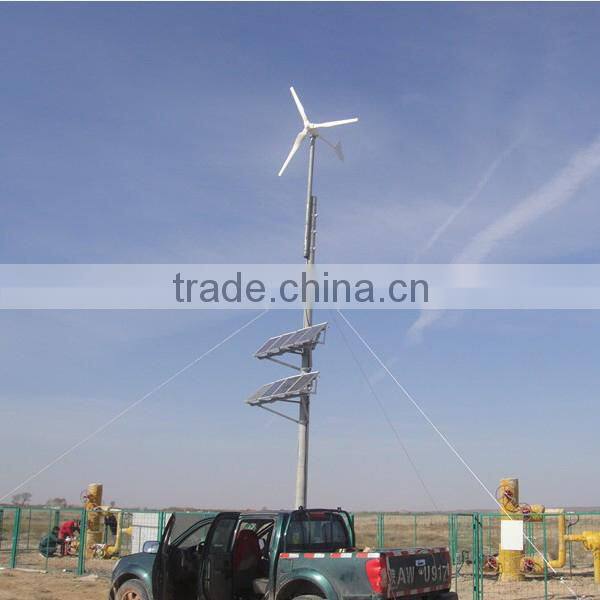

Wind solar system option
1500w wind turbine packing
Certificates guarantee
Co-operation around the world
Exhibition review
FAQ
1. Q: Does installation Easy ?
A: Very easy, every customer can do it by themselves, we will supply all the components for installation and
very details installation manual.
2. Q: Does our wind is enough for a wind generator ?
A: As our wind generator can start running at low wind speed2.5m/s. so your average annual wind speed is more
than 5m/s then you can use it .
3. Q: Which model wind generator is suitable for me?
A: Please contact our sales with following points :
1. What appliance do you want to running by the system? How many watts are they and their working time .
2. Your annual wind speed .
3. What kinds of system do you want ? On-grid or off-grid
4. Q: Can I only buy parts not whole system?
A: Yes,for example you can manufacture tower in local , we can supply you tower drawing .
Any other questions ,please feel free to contact us .
