5kw ac Function Generator / Permanent Magnet Generator Quality Choice

Name: 5kw ac Function Generator / Permanent Magnet Generator Quality Choice
Brand: NaiEr
SKU: 113303613
Availability: InStock

US$ 1,200 - 1,500 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

NaiEr

Model Number:

NE-5000P

Jiangsu Naier Wind Power Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name NaiEr

Model Number NE-5000P

Type Wind Power Generator

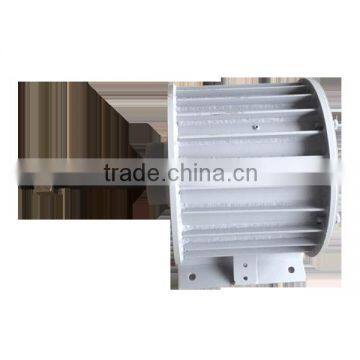

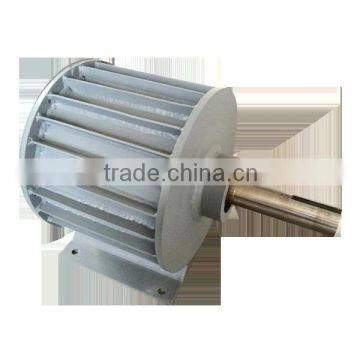

5kw ac function generator / permanent magnet generator pictures :

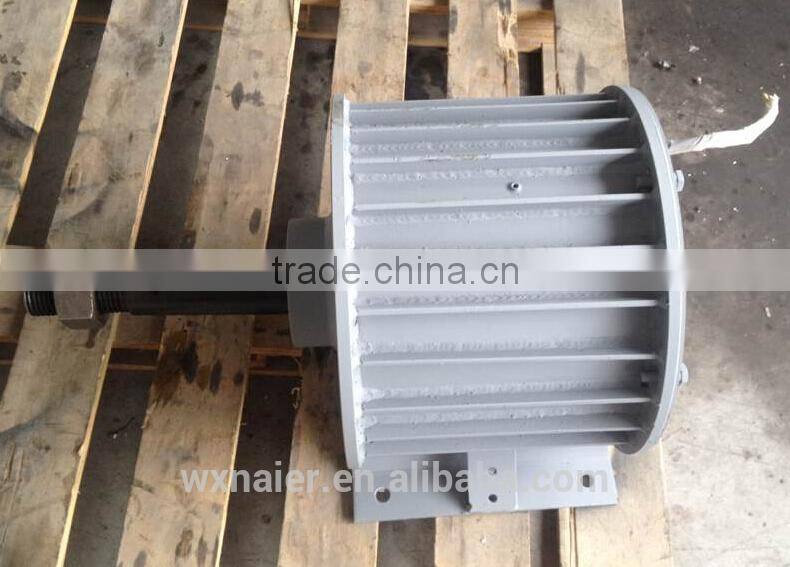

real picture:

5kw ac function generator / permanent magnet generator Features:

1.Gearless, direct drive, low RPM generator

2.Excellent heat dissipation due to the carbon steel outer frame and special internal structure.

3.permanent magnet generator rotor using patented alternator, together with the special stator design

5kw ac function generator / permanent magnet generator Tech Data:

Model	NE-5kw
Rated Power(w)	5000w
Max Power(w)	7000w
Rated Voltage(v)	96V/120V/220V
Rated rotated speed(r/m)	300r/m
Top net weight(kg)	85kg
Output Current	AC
generator	3 phase permanent magnet synchronous generator
Insulation Class:	F
Service Life:	More Than 20 years
Bearing	HRB or for your order
Shaft Material	Iron
Shell Material	Carbon Steel
Permanent Magnet Material	Rare Earth NdFeB
Protection Grade	IP54
Lubrication	Lubrication Grease
Working temperature	-40℃ - 80 ℃
