ac 3kw permanent magnet alternator

FOB Price

USD $850 - $1,100 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	NaiEr
Model Number	NE-3000P		Type	Wind Power Generator

ac 3kw permanent magnet alternator :

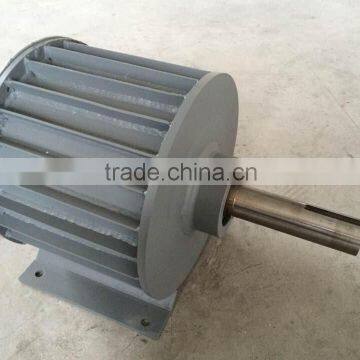

real picture:

features:

1.Gearless, direct drive, low RPM generator

2. Small size and light weight: Its size and weight are 30% less than those of conventional generators.

3.Excellent heat dissipation due to the carbon steel outer frame and special internal structure.

4.permanent magnet generator rotor using patented alternator, together with the special stator design

tech data:

Model	NE-3kw
Rated Power(w)	3000w
Max Power(w)	4800w
Rated Voltage(v)	96V/120V
Rated rotated speed(r/m)	300r/m
Top net weight(kg)	70kg
Output Current	AC
generator	3 phase permanent magnet synchronous generator
Insulation Class:	F
Service Life:	More Than 20 years
Bearing	HRB or for your order
Shaft Material	Iron
Shell Material	Carbon Steel
Permanent Magnet Material	Rare Earth NdFeB
Protection Grade	IP54
Lubrication	Lubrication Grease
Working temperature	-40℃ - 80 ℃

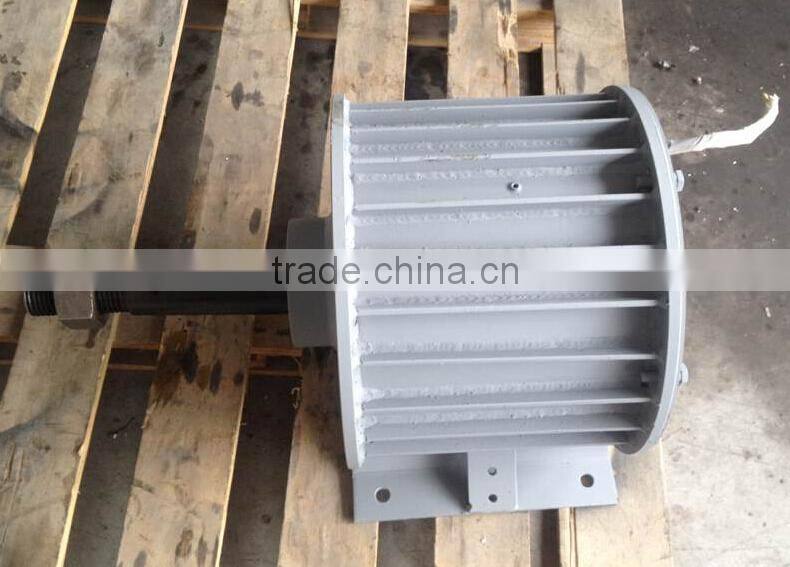

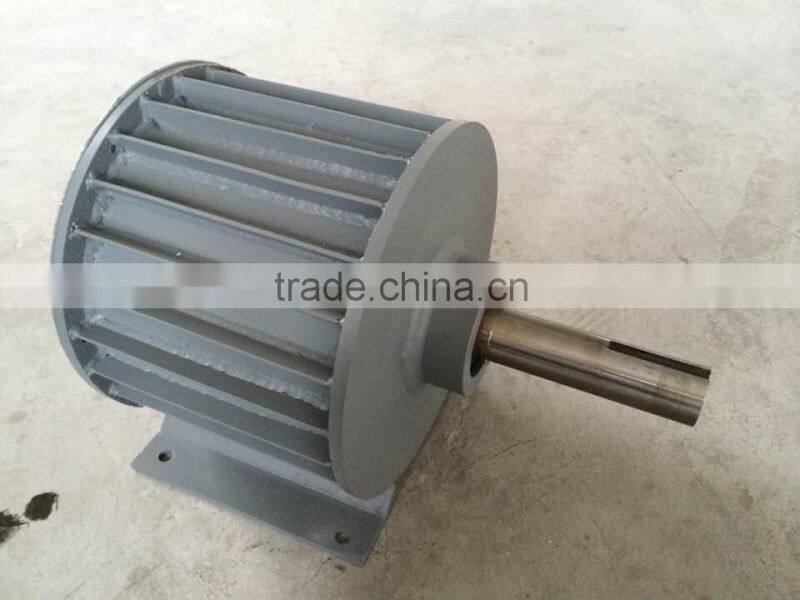

details:

two kinds shaft:

type one: type two:
