We Factory offer OEM Service. Tell me the rpm, voltage, herts of the generator you need. Please click here to contact Our Sales-Jessica Xu for details.
Features:
- Low start up speed;
- Low cogging torque
- 30kw low rpm permanent magnet generator
- Suitable for both Horizontal and Vertical Turbines
- Gearless, direct drive, low RPM generator.
- For use in all environments
- Excellent heat dissipation
- Designed for 20-year operation life.

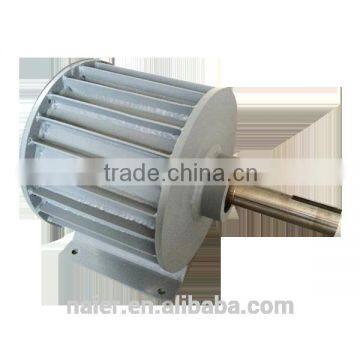

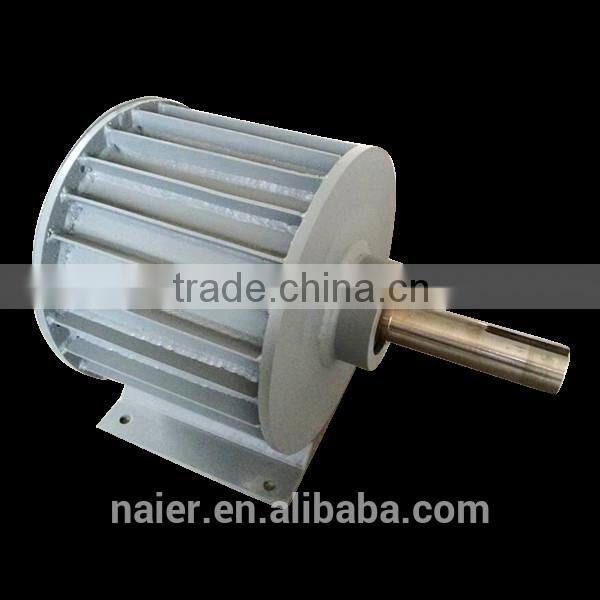

Product Image:

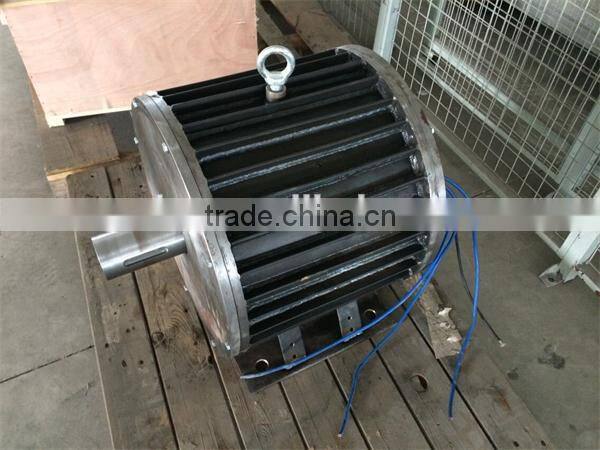

Half finished 30kw low rpm permanent magnet generator
Generator case making
Winding for 30kw low rpm permanent magnet generator
Technical data
Model | NE-30kw |
Rated Power(w) | 30kw |
Max Power(w) | 38kw |
Rated Voltage(v) | 220V/380V/420V |
Rated rotated speed(r/m) | 170r/m |
Top net weight(kg) | 380kg |
Output Current | AC |
Rated Torque(N*M): | 1685.3 Nm |
generator | 3 phase permanent magnet synchronous generator |
Insulation Class: | F |
Service Life: | More Than 20 years |
Bearing | HRB or for your order |
Shaft Material | Iron |
Shell Material | Carbon Steel |
Permanent Magnet Material | Rare Earth NdFeB |
Protection Grade | IP54 |
Lubrication | Lubrication Grease |
Working temperature | -40℃ - 80 ℃ |
Contact me for details by CLICK HERE:
Trade Show:

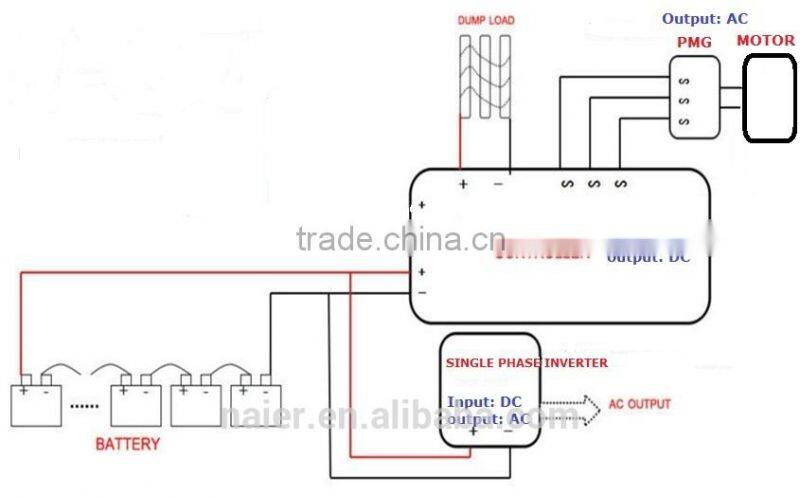

Motor-PMG- Home loads
