400w 12v Wind Solar Hybrid off Grid Controller for LED Use

400w 12v Wind Solar Hybrid off Grid Controller for LED Use thumbnail-1
400w 12v Wind Solar Hybrid off Grid Controller for LED Use photo-1
US$ 80 - 200 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Naier
Model Number:
NE04-12-N00D
Contact Supplier Request Quote Chat Now
Jiangsu Naier Wind Power Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Naier
Model Number NE04-12-N00D
Size 144*152*82mm
Weight 1.9kg
Output Voltage 12v
Type Other, AC/DC controller
Output Frequency 50HZ

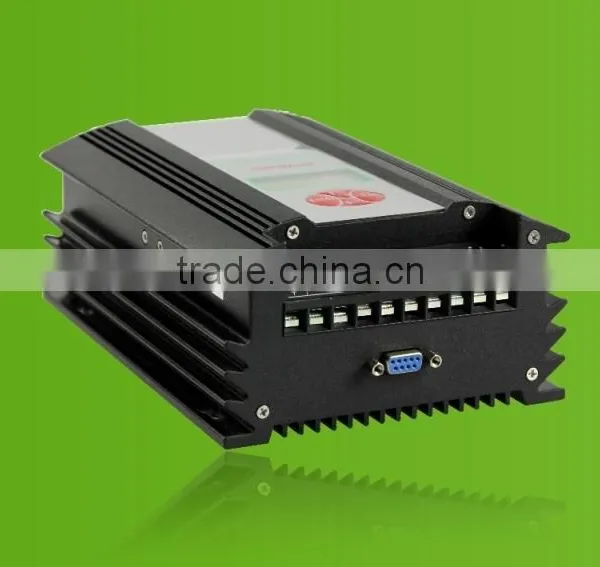

400w 12v wind solar hybrid off grid controller for LED use Pictures:



400w 12v wind solar hybrid off grid controller for LED use





 400w 12v wind solar hybrid off grid controller for LED use





400w 12v wind solar hybrid off grid controller for LED use  Technical Data:



Product Model

NE04-12-N00D

Rated battery voltage

12V

Rated wind turbine input voltage

400W

Maximum wind turbine input power

600W

Wind Turbine Brake Current

40A

Rated Solar Input Power

150W

Dumpload Start Voltage

13.5V

Complete discharge voltage

14.5V

Battery Under Voltage Shutoff

10.8V

Battery Under Voltage recovery

12V

Input over voltage shutoff

16V

Light Control On Voltage

1V

Light Control Off Voltage

1.5V

Rated Output Current of Load 1 and Load 2

10A

Load 1 Output Control Mode

Light Control On and Light Control Off

Load 2 Output Control Mode

Light Control On and Time Control 5 Hours Off

Dumpload Control Mode

PWM

Display Mode

LCD

Cooling

Aluminium alloy shell radiating

Protection Level

IP53(Indoor)

Quiescent Current

≤20 mA

Display Content

Battery Voltage, Wind Turbine Voltage, PV Voltage, Wind Turbine Current, PV Current, Wind Turbine Power, PV Power, Over Voltage, Under Voltage, Over Load, Short Circuit, Night etc status

Protection Functions

Solar reverse charge protection , Solar reverse connection protection,

Battery over charge protection, Battery over discharge protection,

Battery reverse connection protection, Over load protection, Short circuit protection, Lightning protection

Wind turbine current limiting, Wind turbine automatic brake and manual brake.

Ambient temperature

-20~+55℃

Ambient Humidity

0~93%, without condensing

Working Altitude

≤4000m

Dimension

144×152×82mm

Net weight

1.9kg









400w 12v wind solar hybrid off grid controller for LED use  Performance Features:

²        Superior military-grade components to ensure the product stability.

²        Superior military-grade components to ensure the product stability.

²        Check and set all operation parameters as requirement from LCD display.

²        Voltage limiting and current limiting charge mode ensures battery in the best charging status.

²        Two DC Load output, light control, time control, constant output, and multiple output control mode selections.

²        PWM stepless dumpload mode, which release the excess power into dump load, making the battery charging in best status.

²        Design of high quality aluminum alloy appearance, with small size and good cooling effect.



400w 12v wind solar hybrid off grid controller for LED use  Application Fields:



²        Stand alone wind/solar hybrid power station.

²        Stand alone domestic household wind/solar hybrid power system.

²        Mobile Communication base stations, expressway and other non-residential regions.

²        Coastal islands, remote mountainous, border posts for regions shortage of or without electricity.

²        Government demonstration projects, landscape lighting project, street light project etc.





400w 12v wind solar hybrid off grid controller for LED use  System Drawing:
