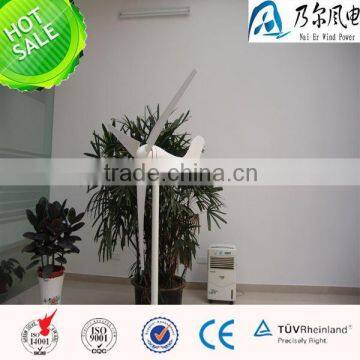

horizontal wind turbine details:
horizontal wind turbine Parameter:
Model | NE-300S |
Rated power | 300W |
Maximum power | 350W |
Rated voltage | 12/24V |
Start-up wind speed | 2.0m/s |
Rated wind speed | 10m/s |
Survival wind speed | 45m/s |
Top net weight | 10kg |
Wheel diameter | 1.5m |
Number of blades | 3/5 |
Blades material | Nylon fiber |
Generator type | Three phase permanent magnet AC synchronous generator |
Magnet material | NdFeB |
Generator case | Casting aluminum alloy |
Control system | Electromagnet/wind wheel yaw |
Speed regulation | Automatically adjust windward direction |
Working temperature | -40°C - 80°C |
Design life | 20 y |
Certificates | CE, ISO14001, TUV |
horizontal wind turbine Features:
1.Low start up speed, high wind energy utilization.
2.Easy installation, tube or flange connection optional.
3.New art of precision injection molding blades.
4.Body of casting aluminum alloy, with 2 bearings swivel.
5.Patented permanent magnet ac generator with special stator,effectively reduce torque.
horizontal wind turbine Applications:
