2kw wind turbine features:
1.Casting aluminum alloy body, compact, little vibration
2.Easy installation, tube or flange connection optional
3.Reinforced glass fiber blades,matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.
4.Tail adopts mechanical yaw technique, making it survive storm and run safely
5.Patented permanent magnet ac generator with special stator,effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.
6.Controller,inverter can be matched accroding to customers’ specific needs

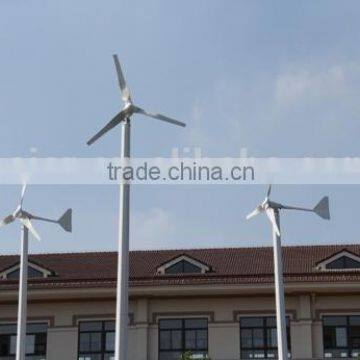

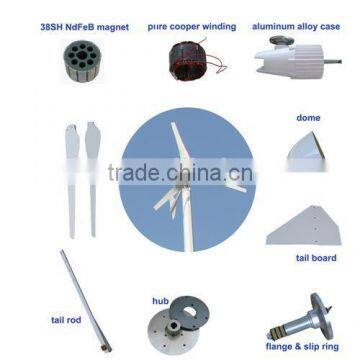

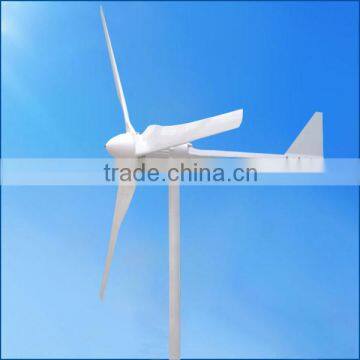

2kw wind turbine picture :
2kw wind turbine technical data:
Model | NE-2000L |
Rated power | 2000w |
Maximum power | 2200w |
Rated voltage | 48/96v |
Start-up wind speed | 3m/s |
Rated wind speed | 10m/s |
Survival wind speed | 45m/s |
Top net weight | 50kg |
Wheel diameter | 3.2m |
Number of blades | 3 |
Blades material | reinforced glass fiber |
Generator type | Three phase permanent magnet AC synchronous generator |
Magnet material | NdFeB |
Generator case | Casting aluminum alloy |
Control system | Electromagnet/wind wheel yaw |
Speed regulation | Tail furling |
Working temperature | -40°C - 80°C |
Design life | 20 y |
Gross weight | 52kg |
Certificates | CE, ISO14001,ISO 9001, TUV |
2kw wind turbine application:
for home, monitoring, landscape and so on
