Specifications
sorghum stalk crusher1. Large capacity
2. Widely used in wood
3. High performance
4. Capcity(kg): 2500

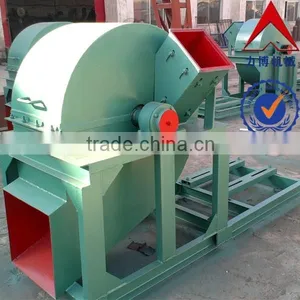

Sorghum Stalk Crusher
♦ Sorghum Stalk's Introduction And Applications :
1). Henan libo mining machinery produce's high efficient wood crusher is an energy saving wood crusher and is a new type wood crusher, new type wood crusher is a special equipment of producing wood powder or sawdust.
2). Wood chip crusher can crushing branches that 1 to 25 cm's branch, fork, can also be used for bamboo, straw, corn stalks, sorghum stalk fiber stem shape materials.
3).Widely used in paper making, edible fungus, mechanism charcoal, shaving board, sawdust board, high density board, MDF, etc.
♦ Sorghum Stalk Crusher's Components :
Wood chip crusher is component of the base, the feed inlet, cutter, chassis, chipper blades, crushing hammer, screen mesh ect.
♦ Sorghum Stalk Crusher's Features :
1.High efficient wood crusher(energy saving wood crusher) is an ideal machinery equipment before production of wood powder.
2.It can processed into wood chips once a time such as wood, branch fork into sawdust,
3.It has features of low investment, low energy consumption, high productivity, good economic, convenient to use and repair etc,
4.It is the special equipment for producing edible fungus production or shaving board, sawdust board high-density plate raw material.
♦ Sorghum Stalk Crusher's Working Principle :
Wood chip crusher are automatic processed wood into wood chips crushing equipment, Raw material from the inlet into the post, first by the blade, cutting into the crushing chamber, By the high-speed rotation of the hammer impact and shearing blades crush, Then the wind generated by the built-in blades after screen sent out of the mouth or the outer fan pumping discharge port, Our factory can also according to the customers requirements processing customized various models.
♦ Sorghum Stalk Crusher's Technical Parameters :
Specification |
400 type |
500 type |
600 type |
700 type |
800 type |
1000 type |
Cutter diameter(mm) |
400 |
500 |
600 |
700 |
800 |
1000 |
Blade number(piece) |
4 |
4 |
4 |
4 |
6 |
8 |
Feed diameter(mm) |
150×160 |
170×190 |
200×200 |
200×220 |
220×240 |
270×300 |
Rotation speed(r/min) |
2600 |
2600 |
2600 |
2300 |
2000 |
2000 |
Motor power(kw) |
11 |
15 |
22 |
30 |
45 |
75+7.5 |
Capacity(kg/h) |
500-800 |
600-1000 |
900-1200 |
1300-1800 |
2500 |
3000-4000 |
Discharging size(mm) |
According to the customers requirements,wood crusher can replace screen to adjust different fineness. |
|||||
♦ Sorghum Stalk Crusher's Finished Product :

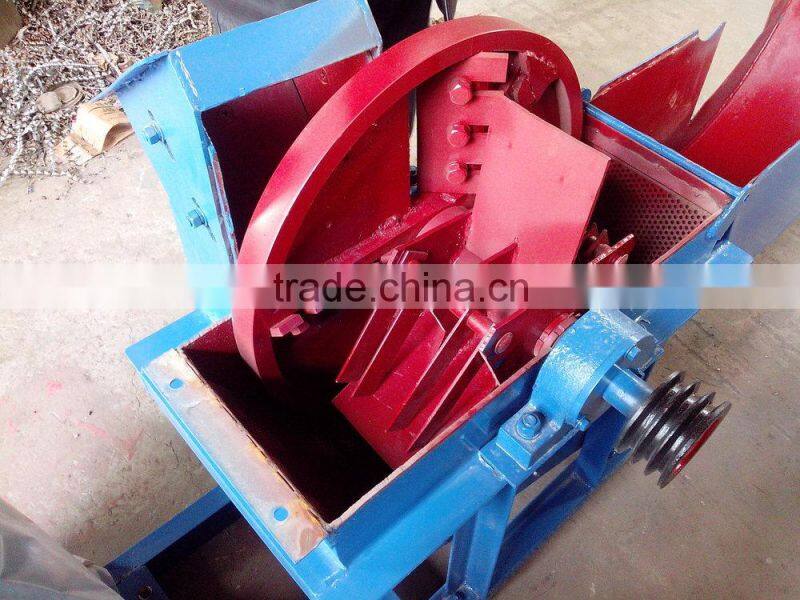

♦ Sorghum Stalk Crusher's Internal Structure :

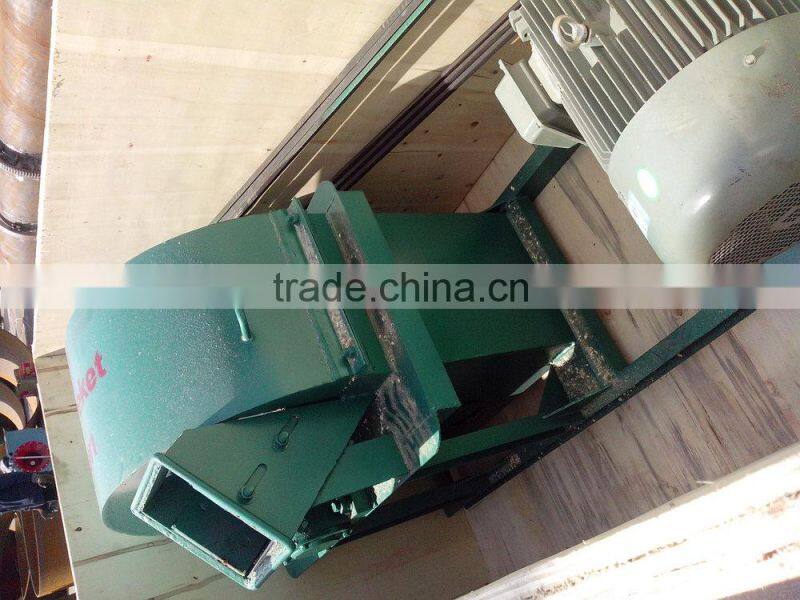

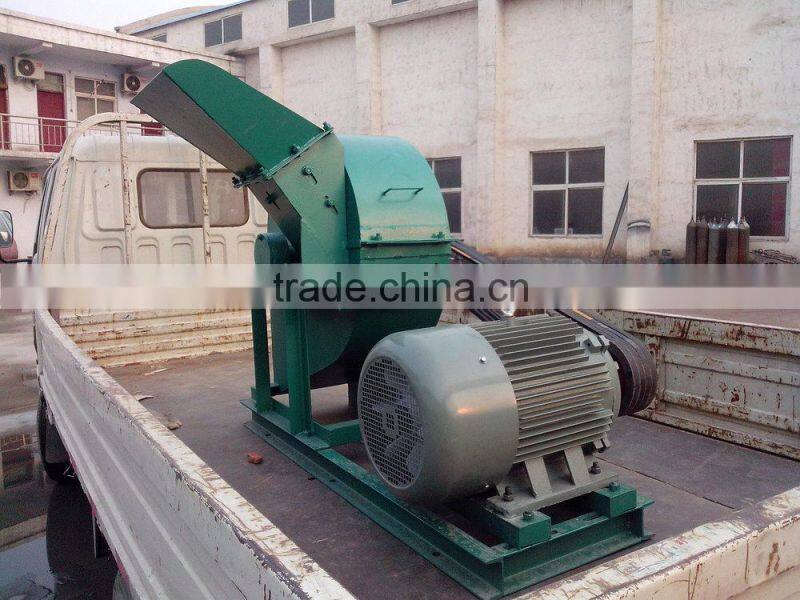

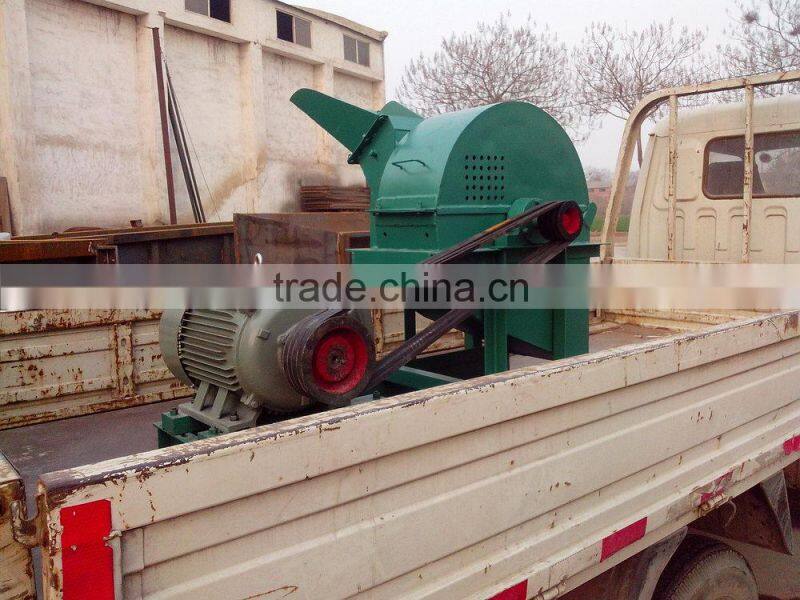

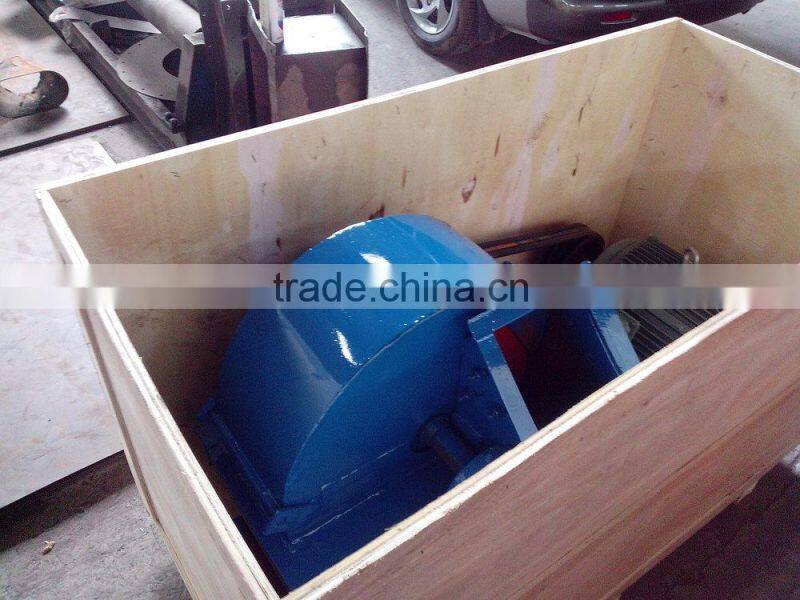

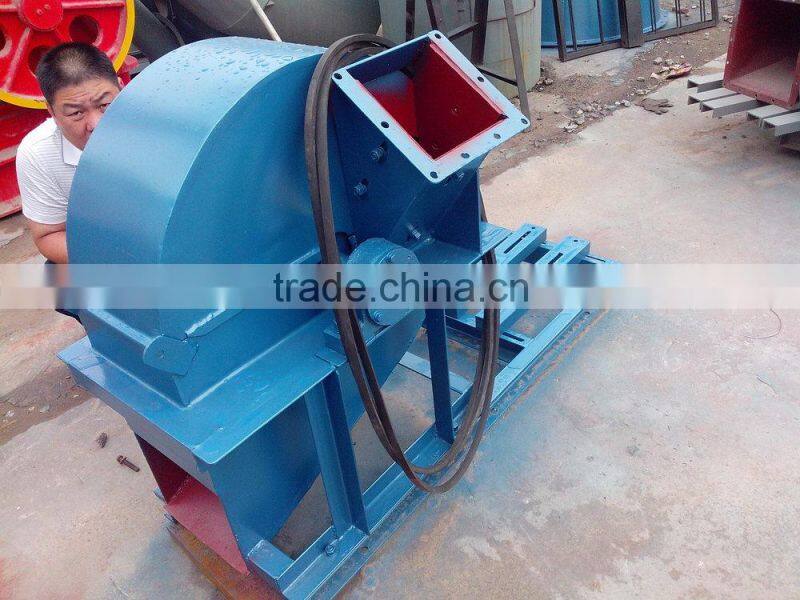

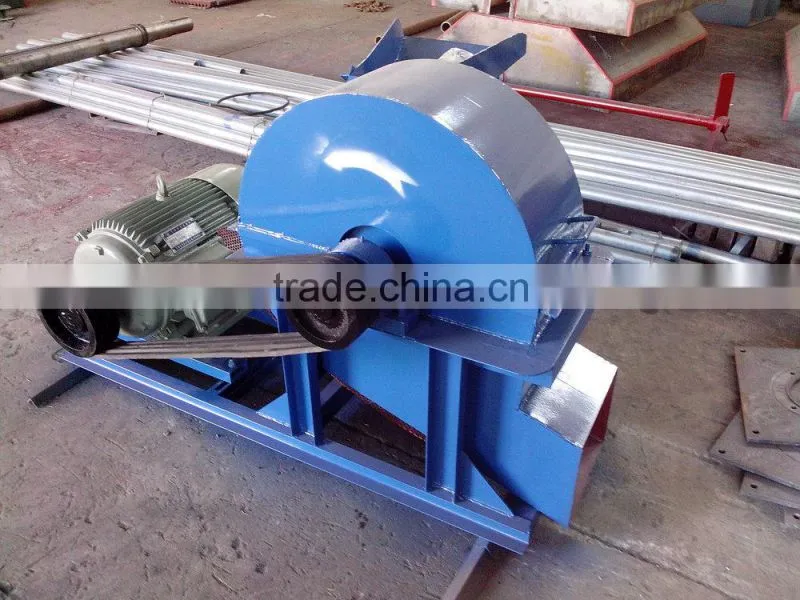

♦ Sorghum Stalk Crusher's Ex Factory Scene :
♦ Wood Chip Crusher Final Material Finished Product :
If You Are Interested In Our Product,Please Contact Me,Welcome To Visit Our Factory !
Name : Manli Wang.
Mobile : 86+ 13837135242.
Skype: isabel199063.
