wood working machine with new condition good quality 600 type high efficiency wood chip crusher

Specifications

high efficiency wood chip crusher
1. Small mini type
2. Widely used in wood
3. Easy operation
4. Capcity(kg): 900-1200

High Efficiency Wood Chip Crusher





♦ High Efficiency Wood Chip Crusher's Applications :



1).Henan libo mining machinery produce's high efficient wood crusher is an energy saving wood crusher, High efficient wood crusher.

is a new type wood crusher,new type wood crusher is a special equipment of  producing wood powder or sawdust.



2). Wood chip crusher can crushing branches that 1 to 25 cm's branch, fork, can also be used for bamboo, straw, corn stalks, sorghum stalk fiber stem shape materials.



3).Widely used in paper making, edible fungus, mechanism charcoal, shaving board, sawdust board, high density board, MDF, etc.





♦ High Efficiency Wood Chip Crusher's Components :



Wood chip crusher is component of the base, the feed inlet, cutter, chassis, chipper blades, crushing hammer, screen mesh ect.



♦ High Efficiency Wood Chip Crusher's Features :



1.High efficient wood crusher(energy saving wood crusher) is an ideal machinery equipment before production of wood powder.



2.It can processed into wood chips once a time such as wood, branch fork into sawdust,



3.It has features of low investment, low energy consumption, high productivity, good economic, convenient to use and repair etc,



4.It is the special equipment for producing edible fungus production or shaving board, sawdust board high-density plate raw material,



♦ High Efficiency Wood Chip Crusher's Working Principle :



 Wood chip crusher are automatic processed wood into wood chips crushing equipment, Raw material from the inlet into the post, first by the blade, cutting into the crushing chamber, By the high-speed rotation of the hammer impact and shearing blades crush, Then the wind generated by the built-in blades after screen sent out of the mouth or the outer fan pumping discharge port, Our factory can also according to the customers requirements processing customized various models.



♦ High Efficiency Wood Chip Crusher's Technical Parameters :





Specification	400 type	500 type	600 type	700 type	800 type	1000 type
Cutter diameter(mm)	400	500	600	700	800	1000
Blade number(piece)	4	4	4	4	6	8
Feed diameter(mm)	150×160	170×190	200×200	200×220	220×240	270×300
Rotation speed(r/min)	2600	2600	2600	2300	2000	2000
Motor power(kw)	11	15	22	30	45	75+7.5
Capacity(kg/h)	500-800	600-1000	900-1200	1300-1800	2500	3000-4000
Discharging size(mm)	According to the customers requirements,wood crusher can replace screen to adjust different fineness.

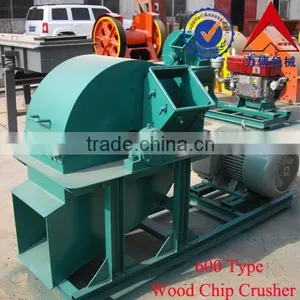

♦ 600 Type Wood Chip Crusher Finished Product :

♦ Wood Chip Crusher's Internal Structure :

♦ Wood Chip Crusher's Ex Factory Scene :

 ♦ Wood Chip Crusher Final Material Finished Product :
