Specifications
Crushing Equipment1.Customerized design
2.High efficiency & low cost
3.Standard component
4.Factory, welcome to visit
Usage and Application of Stone Crushing Equipment
This stone crushing equipment mainly consists of Vibrating Feeder, Jaw Crusher, Cone Crusher or Impact Crusher, Vibrating Screen, Belt Conveyor and Control System, etc. It is completely capable to crush and screen limestone, marble, granite, basalt, river gravel and other hard stone materials, and produce sand & gravels with various granularities for construction and building industry. We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most economical solutions according to customers' requirements on stone specifications, output, application, etc.
Working Principle of Stone Crushing Equipment
Large stone materials from the storage hopper are evenly and continuously fed into jaw crusher through vibrating feeder for primary crushing; the crushed materials are transported to cone crusher or impact crusher for fine crushing through belt conveyor; then the materials are transported to vibrating screen to be separated into different sizes. The end products with desired sizes will be transported to the final product pile and those with big sizes will return to the cone crusher or impact crusher for re-crushing. This forms closed and continuously automatic cycles. The plant can be equipped with dust removing facilities to protect environment according to customers' requests.
Stone Crushing Equipment Features
1.High degree of automatic operation; the entire production line requires almost no manual operation except for machine starting and stopping, routine maintenance.
2. High productivity, low investment, and good appreciation.
3. Regular end product granularity, good grain shape, and low powder output.
4. Adopting high advanced control system to ensure security and reliable operation of the entire production line.
Stone Crushing Equipment for Referance
20-30t/h stone crushing equipment configuration
No. |
Name |
Model |
Quantity(set) |
Power(kw) |
1 |
Vibrating feeder |
GZD750×2500 |
1 |
5.5 |
2 |
Jaw crusher |
PE250×400 |
1 |
18.5 |
3 |
Impact crusher |
PF0807 |
1 |
45 |
4 |
Vibrating feeder |
3YK1235 |
1 |
5.5 |
Belt conveyor
No. |
Name |
Specification |
Quantity(set) | Power(kw) |
1 |
belt conveyor |
B500×12/m |
1 |
4 |
2 |
belt conveyor |
B500×15/m |
1 |
4 |
3 |
belt conveyor |
B400×16/m |
1 |
4 |
4 |
belt conveyor |
B400×15/m |
3 |
3×3 |
Note: the belt conveyor may have slight changes according to the site situation.
30-50t/h stone crushing equipment configuration
No. |
Name |
Model |
Quantity(set) |
Power(kw) |
1 |
Vibrating feeder |
GZD850×3000 |
1 |
7.5 |
2 |
Jaw crusher |
PE400×600 |
1 |
30 |
3 |
Impact crusher |
PF1008 |
1 |
55 |
4 |
Vibrating feeder |
3YK1235 |
1 |
5.5 |
Belt conveyor
No. |
Name |
Specification |
Quantity(set) |
Power(kw) |
1 |
Belt conveyor |
B650×15/m |
1 |
5.5 |
2 |
Belt conveyor |
B650×12/m |
1 |
5.5 |
3 |
Belt conveyor |
B500×16/m |
1 |
4 |
4 |
Belt conveyor |
B500×15/m |
3 |
3×4 |
Note: the belt conveyor may have slight changes according to the site situation.
260-360t/h stone crushing equipment configuration
No. |
Name |
Model |
Quantity(set) |
Power(kw) |
1 |
Vibrating feeder |
GZD1100×4900 |
1 |
15 |
2 |
Jaw crusher |
PE750×1060 |
1 |
90 |
3 |
Impact crusher |
PF1214 |
2 |
160×2 |
4 |
Vibrating feeder |
3YK2160 |
1 |
30 |
Belt conveyor
No. |
Name |
Specification |
Quantity(set) |
Power(kw) |
1 |
Belt conveyor |
B1000×26/m |
1 |
11 |
2 |
Belt conveyor |
B1000×22/m |
2 |
11×2 |
3 |
Belt conveyor |
B800×30/m |
1 |
11 |
4 |
Belt conveyor |
B500×15/m |
3 |
3×4 |
Note: the belt conveyor may have slight changes according to the site situation.
There are more configurations of stone crushing equipment, 50-70t/h, 70-120t/h, 130-180t/h and 160-250t/h. Welcome your inqury.
Vibrating feeder

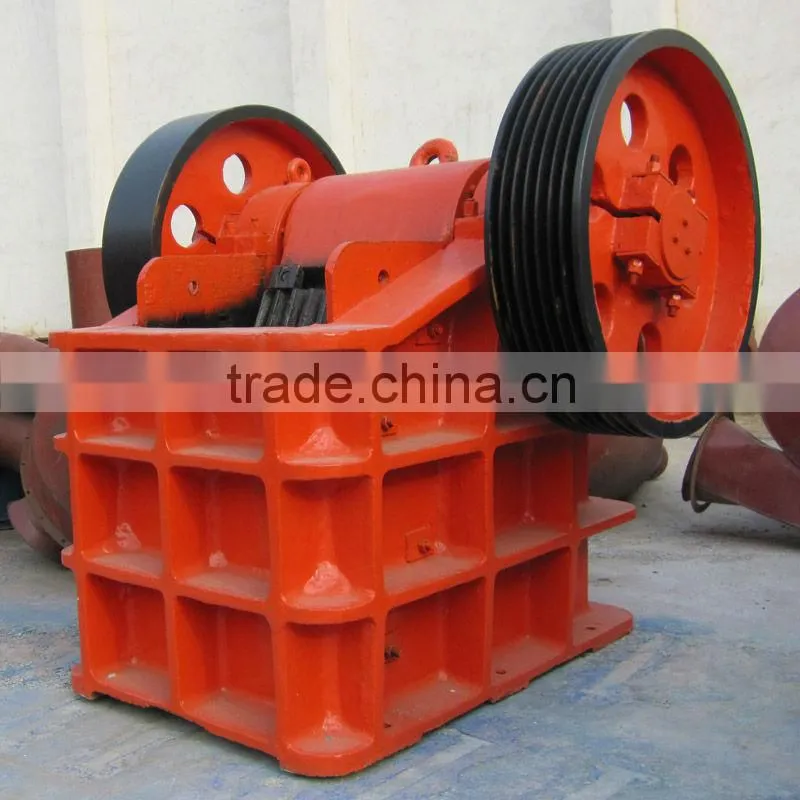

Jaw crusher

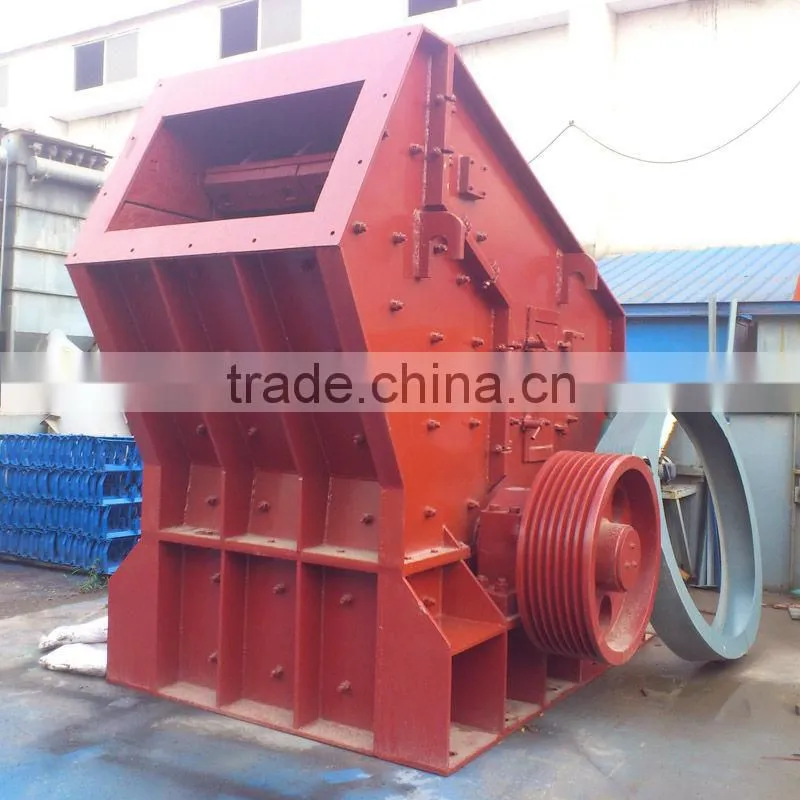

Impact crusher
I

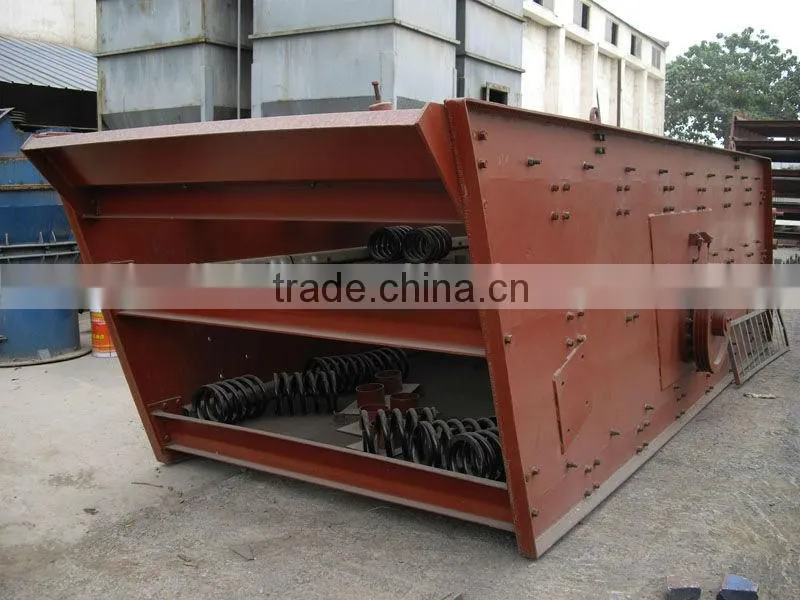

Vibrating screen

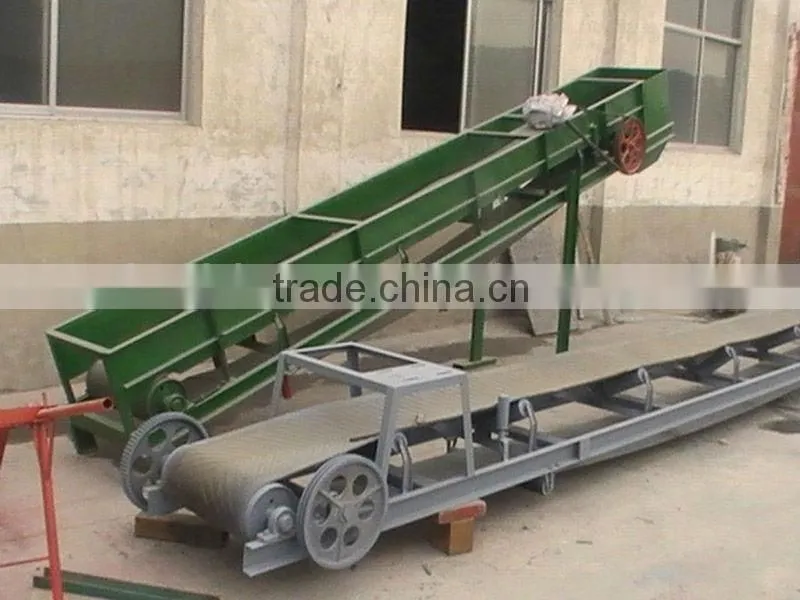

Belt conveyor
