Hydraulic Filter Press (solid and Liquid Separation Machine)

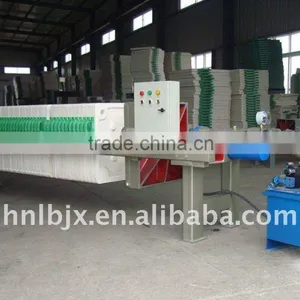

Hydraulic Filter Press (solid and Liquid Separation Machine) thumbnail-1

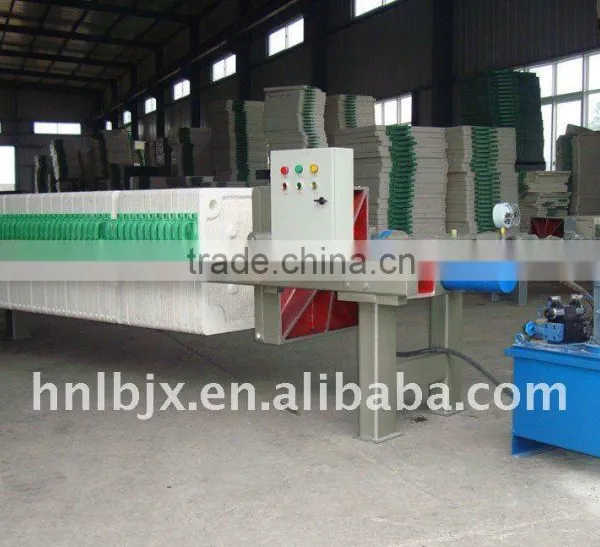

Hydraulic Filter Press (solid and Liquid Separation Machine) photo-1
US$ 10,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Libo
Model Number:
XAMY,XZMZ
Contact Supplier Request Quote Chat Now
Henan Libo Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name Libo
Model Number XAMY,XZMZ

Specifications

hydraulic filter press
1) PP filter plate
2) hydraulic closure
3) open filter plate manually
4)ISO9001

Hydraulic filter press (solid and liquid separation machine)Plate and Frame filter press
1) PP filter plate
2) hydraulic closure
3) open filter plate manually
4)ISO:9001
Charmber Filter Press is a common type of filter press,it is made of electrical control system and mainframe,and there are both overflow and underflow.It has functions of cylinder hydraulic compress,filter,release,wash,blow and so on.
charmber filter press characteristics:
1.polypropylene filter plate is corrosion resistant,nonpoisonous and tasteless.
2.cylinder hydraulic compress,pressure maintaining automatically.
3.simple operation,easier maintenance



technological parameter:





model filter area(m2) filter chamber volume(m3) filter chamber quantity(pcs) filter plate dimension(mm) filter cake thickness(mm) outside dimension(mm) filter pressure(Mpa) motor power(kw) whole weight(kg)
length(L) width(W) height(H)
XM(A)Y/630X630-U 15 0.19 19 720x720 25 2720 1100 1070

0.6

2.2

 3160
 20  0.25  26 3130 3320
 30 0.36  38 3850 3570
 40  0.19  49 4570 3880
XM(A)Y/800X800-U 40 0.6 32 900x900 30 4050 1350 1100 0.6 2.2 5190
50 0.8 39 4470 5460
60 0.95 47 5030 5710
80 1.2 63 6290 6230
XM(A)Y/1000X1000-U 40 0.6 24 1000x1000 30 4215 1600 1200 0.6 4 3870
50 0.75 30 4580 4160
60 0.9 36 4955 4900
80 1.2 48 5670 5560
100 1.5 59 6380 5980
120 1.8 72 7140 6375
XM(A)Y/1250X1250-U 80 1.2 30 1250x1250 30 4820 1760 1555 0.6 4 6195
100 1.5 38 5310 6885
120 1.8 46 5925 7575
150 2.25 57 6480 8460
180 2.7 68 7150 9590
200 3 76 7610 10980
XM(A)Y/1500X1500-U 200 3 51 1500x1500 30 6430 2125 1750 0.6 4 13760
240 3.6 62 7080 15600
250 3.75 65 7200 16650
300 4.5 76 8140 17650
340 5.1 88 8760 2410 2050 19160
400 6 102 10220 20980
450 6.75 116 11210 21900
500 7.5 130 11450 24660
