High Quality Ball Mill Equipment Price for Sale
Specifications
1. 11-year factory, 7-year gold supplier
2. Best price,BV
3. Save 15~30% energy
4. Full service from pre-sales and after-sales support

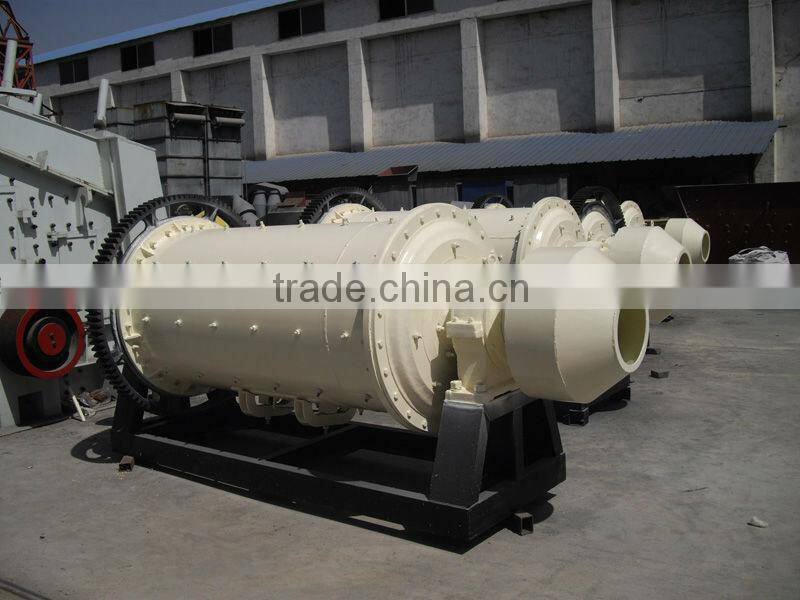

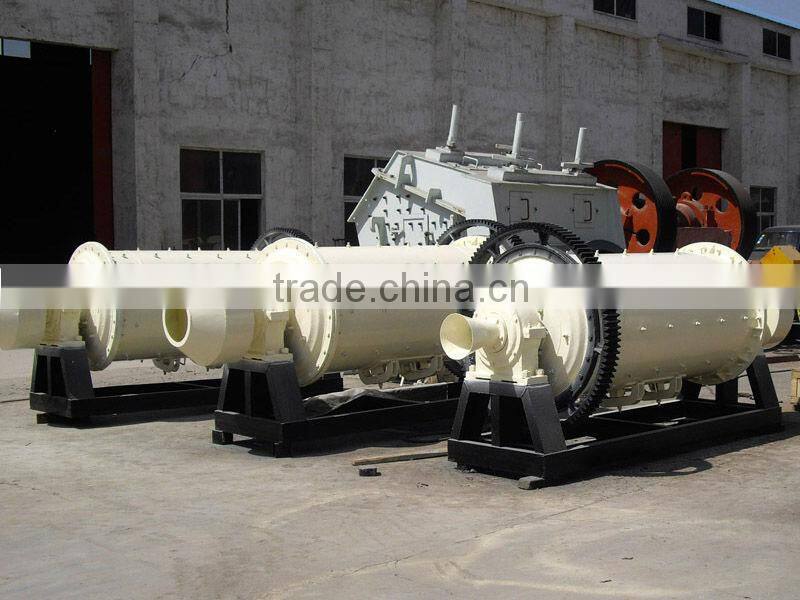

Hot Sale High Quality Ball Mill Equipment Price for Sale with Full Service

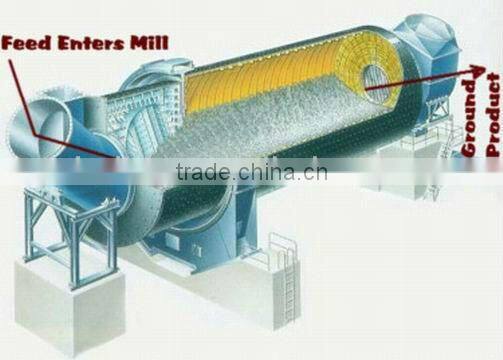

Working Principle of Ball Mill Equipment
The mainbody of the Ball Mill Equipment is a low-speed rotary cylinder mounted on two large bearings horizontally. The Ball Mill Equipment's rotary part is driven at reducing speed by motor through speed reducer and gearweheel or by low-speed synchronous motor through gearwheel. Inside the cylinder feed proper grinding medium-steel balls. The medium will be lifted to certain height under the action of centrifugal force and friction and drop or fall. The material to grind is fed to the cylinder in succession and crushed by grinding medium, then discharged through overflow and continual feeding force, and enter the next procedure.
Features of Ball Mill Equipment
1) The Ball Mill Equipment is an efficient tool for grinding many materials into fine powder.
2) Ball Mill Equipment is widely used in building material, and chemical industry.
3) There are two ways of grinding: the dry way and the wet way.
4) Ball Mill Equipment can be divided into tabular type and flowing type according to differentexpelling mine
5) To use the Ball Mill Equipment, the material to be ground is loaded into the neoprene barrel that contains grinding media.
6) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
7) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the Ball Mill Equipment runs.

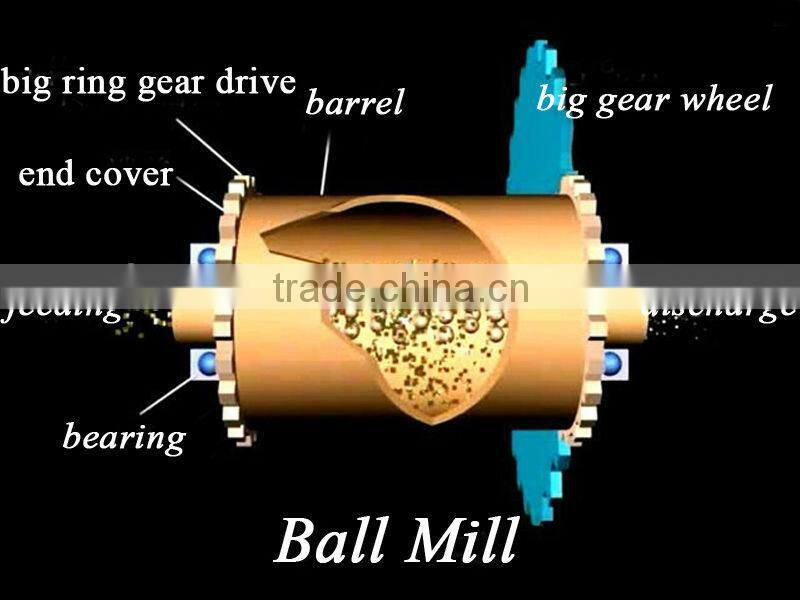

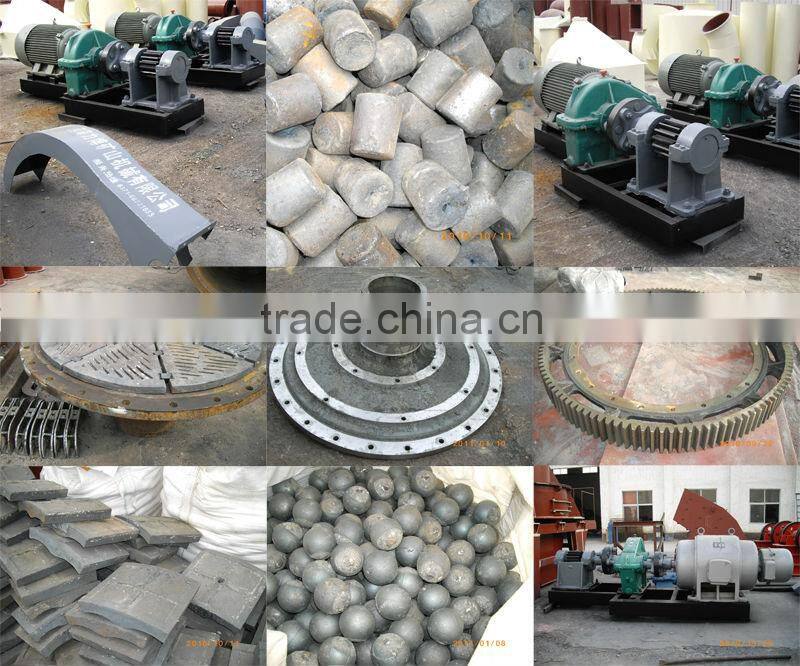

Structures of Ball Mill Equipment
To achieve a reasonable efficiency with Ball Mill Equipments, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from Ball Mill Equipments. Ball Mill Equipment is an efficient tool for grinding many materials into fine powder.
Main Technical Parameters of Ball Mill Equipment
| certification and type | rotational speed(r/min) | put the ball to heavy(t) | material-in size(mm) | material-out size(mm) | yield(t/h) | motor power(kw) | weight(t) |
| Φ900*1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
| Φ900*3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.5 |
| Φ1200*2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 11.5 |
| Φ1200*4500 | 32 | 7 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| Φ1500*3000 | 27 | 8 | ≤25 | 0.074-0.4 | 2.0-5.0 | 90 | 17 |
| Φ1500*4500 | 27 | 14 | ≤25 | 0.074-0.4 | 3.0-7.0 | 110 | 21 |
| Φ1500*5700 | 27 | 15 | ≤25 | 0.074-0.4 | 3.5-8 | 132 | 24.7 |
| Φ1830*3000 | 24 | 18 | ≤25 | 0.074-0.4 | 4.0-10 | 180 | 28 |
| Φ1830*7000 | 24 | 25 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
| Φ2200*5500 | 21 | 30 | ≤25 | 0.074-0.4 | 10.0-22 | 370 | 48.5 |
| Φ2200*6500 | 21 | 31 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| Φ2200*7500 | 21 | 33 | ≤25 | 0.074-0.4 | 16-29 | 380 | 56 |
| Φ2400*4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| Φ2700*3600 | 20.6 | 39 | ≤25 | 0.074-0.4 | 12-70 | 400 | 91.3 |
| Φ2700*4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 400 | 94 |
| Φ2700*4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
| Φ3200*4500 | 18 | 65 | ≤25 | 0.074-0.4 | according to process conditions | 800 | 137 |
Henan Libo Mining Machinery Co.,Ltd. provides complete pre-sales and after sales support both home and abroad for our customers across all products lines through a comprehensive, multilingual technical support service.
Quality:
Henan Libo Mining Machinery Co.,Ltd. enforces the strictest in quality standard products , ensuring the highest level of operation and service from product design and manufacture to customer delivery and after sales services.
Ball Mill Equipment Price And Manufacturers?
Ball Mill Equipment in different areas has the different price and the price of different Ball Mill Equipment models is also different. Libo is a professional manufacturer of mining equipment, we have different types of grinding machines and the price is very reasonable.There is always a right for you.
If you intersted or have some questions in our product, please don't hesitate tell me.We will do our best to help you.
Skype: zerozzed
Wechat: b0b0b0
QQ: 2816737070
Mobile phone: +86 13526691930
