FSVLF-30 Portable VLF High Voltage Tester 0.1Hz Very Low Frequency HV Generator

Name: FSVLF-30 Portable VLF High Voltage Tester 0.1Hz Very Low Frequency HV Generator
Brand: FSHV
SKU: 113287387

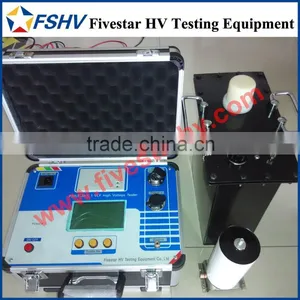

FSVLF-30 Portable VLF High Voltage Tester 0.1Hz Very Low Frequency HV Generator thumbnail-1

FSVLF-30 Portable VLF High Voltage Tester 0.1Hz Very Low Frequency HV Generator photo-1

US$ 9,000 - 20,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

FSHV

Model Number:

FSVLF

Contact Supplier Request Quote Chat Now

Xiamen Fivestar Electric Test Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name FSHV

Model Number FSVLF

Power Electronic

Usage Other, VLF HV Test

FSVLF-30 Portable VLF High Voltage Tester 0.1Hz Very Low Frequency HV Generator, mainly used for voltage test of 10kV cables and generators.

Demo operation video of FSVLF-30: /watch?v=9-Bm7ArbNMU (copy the link, and open in new windows)

Introduction

VLF HV testers are the new generation of AC hipot testers but with an output frequency of 0.1 Hz or lower rather than 50/60Hz. Although the frequency is very low, it is still an alternating current with polarity reversals every half cycle. At 0.1 Hz output, rather than 50Hz, it takes 500 times less current and power to apply an AC voltage to a capacitive load, like a long cable. There is no better way to verify the AC integrity of a cable than to hipot it with AC voltage.

Now very Low Frequency (VLF) testing is internationally accepted as a safe and effective method for testing high voltage facilities. Not only for cable testing, but also spreading rapidly to others where similar benefits are evident, such as transformers, generators and etc.

VLF HV tester are used to provide a go/no-go, or pass/fail, AC voltage withstand test. It can also be used as the voltage source for diagnostic cable testing.

FSVLF series VLF HV testers are microprocessor controlled, have automatic functions for stepping-up, stepping-down, measuring and protecting. They are portable, light weight and small volume. Output waveform is clearly displayed on the large LCD and test report can be printed by built-in thermal printer.


30kV	50kV	80kV

Technical parameters

1. Rated output voltage / current: See Details as following table.

2. Output frequency: 0.1Hz, 0.05Hz, 0.02Hz

3. Measurement accuracy: ±3%

4. Positive and negative voltage peak errors: ≤ 3%

5. Voltage wave form distortion: ≤ 5%

6. Use condition: indoor and outdoor, temperature: -10℃ ~ +40℃, humidity: ≤ 85%

7. Input power: AC 50Hz, 220V ±5% (this can be customized as requested)

8. Power supply fuse tube: See Details as following table

Model No.	Rated Voltage/current	Load Capacitance	Fuse	Configuration/weight
FSVLF-30	30kV/20mA (Peak)	≤1.1µF at 0.1Hz	5A	Controller: 4kg 30kV Booster: 25 kg
		≤2.2µF at 0.05Hz
		≤5.5µF at 0.02Hz
FSVLF-50	50kV/30mA (Peak)	≤1.1µF at 0.1Hz	15A	Controller: 4 kg 50kV Booster: 50 kg
		≤2.2µF at 0.05Hz
		≤5.5µF at 0.02Hz
FSVLF-60	60kV/30mA (Peak)	≤0.5µF at 0.1Hz	15A	Controller: 4 kg Booster 1 (30kV): 25 kg Booster 2 (30kV): 25 kg
		≤1µF at 0.05Hz
		≤2.5µF at 0.02Hz
FSVLF-80	80kV/30mA (Peak)	≤0.5µF at 0.1Hz	20A	Controller: 4 kg Booster 1 (30kV): 25 kg Booster 2 (50kV): 50 kg
		≤1µF at 0.05Hz
		≤2.5µF at 0.02Hz

Features

1. Data of current, voltage, waveform are directly sampled at high voltage side, so the data is real and accurate.

2. Overvoltage protection: If output exceeds the set limit of voltage, the instrument will shut-down to protect itself, the actuation time is less than 20ms.

3. Overcurrent protection: it is high-low voltage dual protection in the design, the accurate shut-down protection can be made according to the set value at high voltage side; If the current on low voltage side exceeds the rated current, the instrument will take shut-down protection, the actuation time are both less than 20ms.

4. A high voltage output protective resistor is provided in the voltage boost body in the design and this eliminates the need of additional protective resistor connected outside.

Accessories

1.Connecting cables and wires

2.Power supply fuse tubes

3.Discharging rod

4.50nF Compensation capacitor

5.Print paper

6.Factory test report

7.Instruction manual

Calibration

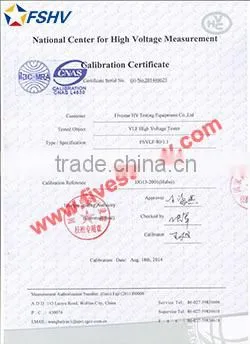

Following is the calibration certificate from 3rd party authority institute (National Center for High Voltage Measurement)
