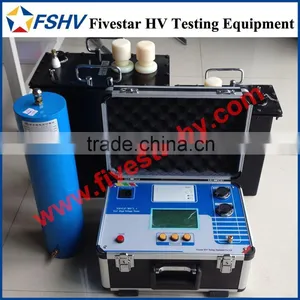

VLF High Voltage Testers HV Generator for 0.1Hz AC Hipot Test
US$ 7,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
FSHV
Model Number:
FSVLF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Portable VLF High Voltage Tester AC Hipot Test SetUS$ 9,000 - 20,000MOQ: 1 Set -
FSVLF-80 VLF AC Hipot Tester High Voltage Generator for 35kV Cable HV TestUS$ 9,000 - 20,000MOQ: 1 Set
-
FSVLF-50 Very Low Frequency VLF High Voltage Tester for Cable Generator AC Voltage TestUS$ 9,000 - 20,000MOQ: 1 Set
-
FSVLF-30 Portable VLF High Voltage Tester 0.1Hz Very Low Frequency HV GeneratorUS$ 9,000 - 20,000MOQ: 1 Set
-
High Voltage Generator Test SystemsUS$ 20,000 - 500,000MOQ: 1 Set
Place of Origin
China
Brand Name
FSHV
Model Number
FSVLF
Power
Electronic
Usage
Other, AC HV Test
Introduction
VLF HV testers are the new generation of AC hipot testers but with an output frequency of 0.1 Hz or lower rather than 50/60Hz. Although the frequency is very low, it is still an alternating current with polarity reversals every half cycle. At 0.1 Hz output, rather than 50Hz, it takes 500 times less current and power to apply an AC voltage to a capacitive load, like a long cable. There is no better way to verify the AC integrity of a cable than to hipot it with AC voltage.
Now very Low Frequency (VLF) testing is internationally accepted as a safe and effective method for testing high voltage facilities. Not only for cable testing, but also spreading rapidly to others where similar benefits are evident, such as transformers, generators and etc.
VLF HV tester are used to provide a go/no-go, or pass/fail, AC voltage withstand test. It can also be used as the voltage source for diagnostic cable testing.

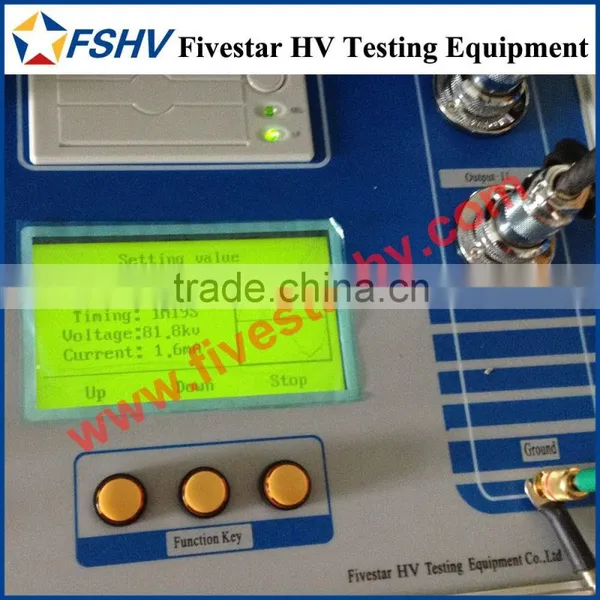

FSVLF series VLF HV testers are microprocessor controlled, have automatic functions for stepping-up, stepping-down, measuring and protecting. They are portable, light weight and small volume. Output waveform is clearly displayed on the large LCD and test report can be printed by built-in thermal printer.
|
|
|
| 30kV | 50kV | 80kV |
Technical parameters
1. Rated output voltage / current: See Details as following table.
2. Output frequency: 0.1Hz, 0.05Hz, 0.02Hz
3. Measurement accuracy: ±3%
4. Positive and negative voltage peak errors: ≤ 3%
5. Voltage wave form distortion: ≤ 5%
6. Use condition: indoor and outdoor, temperature: -10℃ ~ +40℃, humidity: ≤ 85%
7. Input power: AC 50Hz, 220V ±5% (this can be customized as requested)
8. Power supply fuse tube: See Details as following table
| Model No. | Rated Voltage/current | Load Capacitance | Fuse | Configuration/weight |
| FSVLF-30 |
30kV/20mA (Peak) |
≤1.1µF at 0.1Hz | 5A |
Controller: 4kg 30kV Booster: 25 kg |
| ≤2.2µF at 0.05Hz | ||||
| ≤5.5µF at 0.02Hz | ||||
| FSVLF-50 |
50kV/30mA (Peak) |
≤1.1µF at 0.1Hz | 15A |
Controller: 4 kg 50kV Booster: 50 kg |
| ≤2.2µF at 0.05Hz | ||||
| ≤5.5µF at 0.02Hz | ||||
| FSVLF-60 |
60kV/30mA (Peak) |
≤0.5µF at 0.1Hz | 15A |

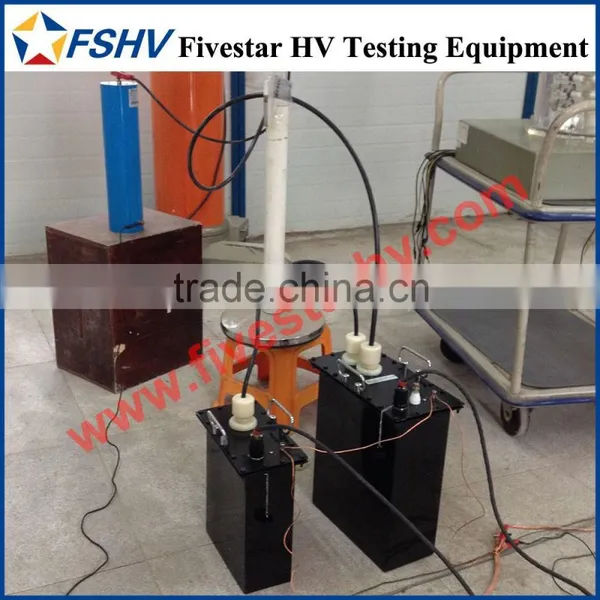

Controller: 4 kg Booster 1 (30kV): 25 kg Booster 2 (30kV): 25 kg |
| ≤1µF at 0.05Hz | ||||
| ≤2.5µF at 0.02Hz | ||||
| FSVLF-80 |
80kV/30mA (Peak) |
≤0.5µF at 0.1Hz | 20A |
Controller: 4 kg Booster 1 (30kV): 25 kg Booster 2 (50kV): 50 kg |
| ≤1µF at 0.05Hz | ||||
| ≤2.5µF at 0.02Hz |
Features
1. Data of current, voltage, waveform are directly sampled at high voltage side, so the data is real and accurate.
2. Overvoltage protection: If output exceeds the set limit of voltage, the instrument will shut-down to protect itself, the actuation time is less than 20ms.
3. Overcurrent protection: it is high-low voltage dual protection in the design, the accurate shut-down protection can be made according to the set value at high voltage side; If the current on low voltage side exceeds the rated current, the instrument will take shut-down protection, the actuation time are both less than 20ms.
4. A high voltage output protective resistor is provided in the voltage boost body in the design and this eliminates the need of additional protective resistor connected outside.
Accessories
1.Connecting cables and wires
2.Power supply fuse tubes
3.Discharging rod
4.50nF Compensation capacitor
5.Print paper
6.Factory test report
7.Instruction manual
Calibration

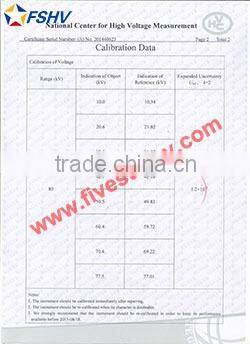

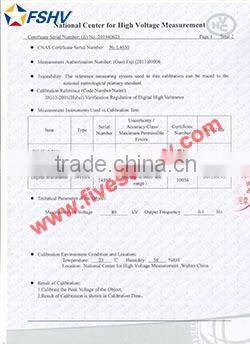

Following is the calibration certificate from 3rd party authority institute (National Center for High Voltage Measurement)
|
|
|
Contact us
|
Contact person: Roger Chen
Tel: 0086-159-8099 8097
Email: sales#
Website:
|
Send Inquiry to This Supplier
Mr. Roger Chen
Export Manager
Xiamen Fivestar Electric Test Equipment Co., Ltd.
