AAC Block Production Line

AAC Block Production Line thumbnail-1
AAC Block Production Line photo-1
US$ 10,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Hollow Block Making Machine
Brick Raw Material:
Other, Cement, Flyash, Lime, Sand, Gypsum, Aluminium powder, Water
Processing:
Brick Production Line
Contact Supplier Request Quote Chat Now
Henan Libo Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Hollow Block Making Machine
Brick Raw Material Other, Cement, Flyash, Lime, Sand, Gypsum, Aluminium powder, Water
Processing Brick Production Line
Method Other, Cutting and autoclave
Automatic Yes
Capacity 20000m3~350000m3 annually
Place of Origin Henan, China
Brand Name LIBO
Model Number (AAC brick machine) autoclaved aerated concrete blcok making machine

Specifications

AAC Block Production Line
1)Productivity: 20000m3~350000m3/year
2)Certification: ISO 9001:2000
3)Warranty period: one year

AAC Block Production Line



Equipment list:

The equipment will be divided into two parts: specialized equipment and universal equipment.

Specialized equipment includes:

1.Cutting equipment: tilting crane, cutter.  .

2.Proportioning equipment: electronic measuring scale, slurry beating machine, slurry storage tank, slurry mixer.

3.Pouring and autoclave equipment: aluminum powder mixer. pouring mixer, mould, side plate, autoclave truck, carrier car.

4.Conveying equipment: semi-product crane, end product crane.



Universal equipment includes:

1.Pressure vessel equipment: boiler, autoclave.

2.Crushing equipment: ball miller, crusher.

3.Transportation equipment: crane, lifting machine, feeder, belt conveyor, slurry pump, screw conveyor.

4.Enviornment protect equpment: dust remover.



other relative equipment as follows:

(1) cutting machine:

(2) tilting hanger, mould, side plate, hardening cart, mould frame, mould bottom, casting machine,    hoist,

(3) autoclave, horizontal installation steam boiler



Whole prodution procession:

The raw materials store in the material storehouse (or stores the pot) after dealing with reserve such as lime, cement, gypsum

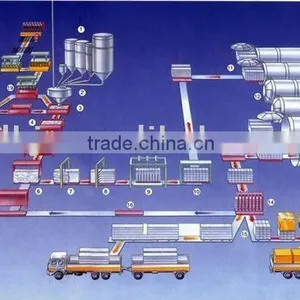

The aerocrete produces the technological process:
1. The raw materials store in the material storehouse (or stores the pot) after dealing with reserve such as lime, cement, gypsum, sand (or fly ash)
2. Aluminum powder or aluminum lotion is through dealing with the reserve material for use
3. Raw materials measure according to certain matching by electron balance measure, aluminum powder, water put into aluminum powder mixer is it is it suspend the liquid to make to mix after measuring
4. The batching water (cold water or hot water pitcher hot water) is measured by the electronic water balance
5. Put into and pour among the mixers in certain order after, raw materials, aluminum powder suspend the liquid is measured, pour and enter the mould after mixing evenly (panel should be put network slice of reinforcing bar in advance in the mould)
6. Quiet to is it raise in advance to park through certain temperature and time, is it transport to the cutting machine to hang from upset hoist upset 90° after the base body reaches certain intensity, the drawing of patterns is cut
a. The base body carries on the side and cuts and mills the trough vertically at first
b. Then carry on the vertical level to cut
c. Cut horizontally finally
d. Cut good base body, raises to cauldron car go on one yard of shelves organize into groups to steam to transport to hang to drive a vehicle to load
7. Raise products well, produce after the cauldron breaking the board off with the fingers and thumb by the board breaking off with the fingers and thumb machine to steam
8. Pile from finished product hoist or forklift to finished product field pile the buttress according to specification to carry
9. Steaming and raising the car and side board and entering the next board of circulation and returning after, the finished product is unloaded, with upset hoist mould frame association that drawing of patterns get off, restore 90°
return to pour mixer pour again after clearing up



Services:plant design, equipments installation, technical instruction, personal training



Application of AAC Product

The new building material has been used in various kinds of buildings, such as public facilities, industrial constructions, civil housing, hospitals, hotels, schools, stores, supermarkets etc. As one of the earliest and most widely used materials, they are more and more popular in the world and they will replace the traditional precast concrete very well.



Main Features of AAC Product

A. Light weight

B. Keeping temperature

C. Raw material available widely

D. Saving land and energy

E.The feature of Plasticity
