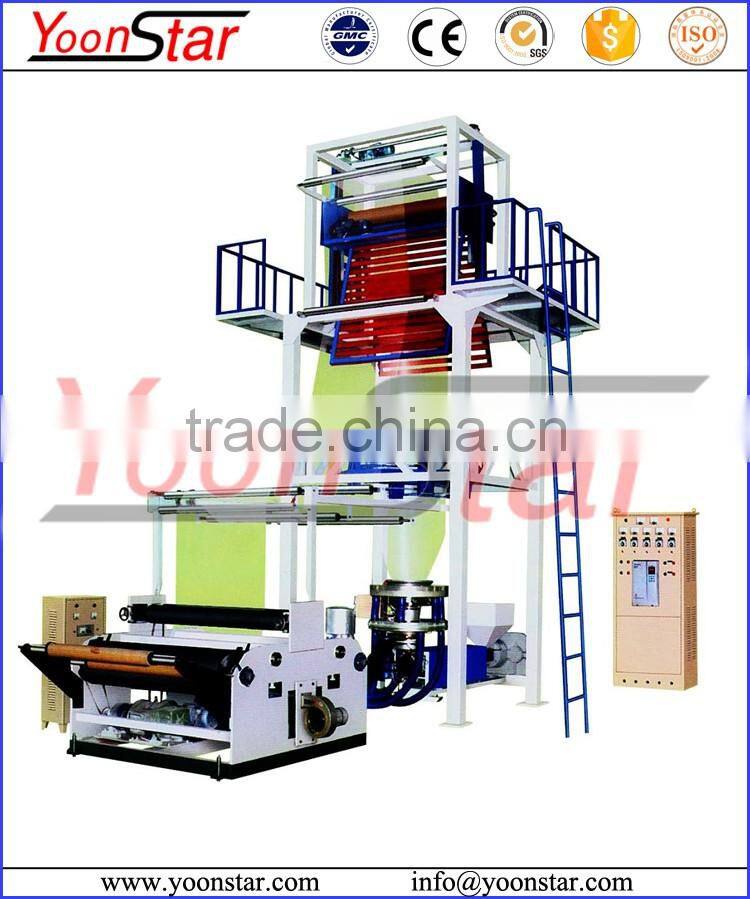

Single layer Plastic film blowing machine/printing machine with high speed
Machine Performance and Characteristics:
this extruder, cylinder and screw rods are made of quality alloy steel that have been notarized and processed in a precision way. hence it is sound in hardness, durable in corrosion resistance. the specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. it is applied to blowing the plastic films like low density polyethylene (LDPE), high density SJ-A60/1000 Single Layer Film Blowing Machine with High Quality and Competitive Price and linear low density SJ-A60/1000 Single Layer Film Blowing Machine with High Quality and Competitive Price. it is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Main Technical Parameters
| Model | A50 | A55 | A65 | A65-1 |
| Diameter of Screw | Φ50 | Φ55 | Φ60 | Φ65 |
| Reduced Diameter of Film (mm) | 100-600 | 200-800 | 300-1000 | 400-1200 |
| Single-face Thickness of Film (mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
| Max.Output (kg/h) | 35 | 50 | 65 | 80 |
| L/D | 28:1 | 28:1 | 28:1 | 28:1 |
| Power of Main Motor (kw) | 7.5-11 | 11-15 | 18.5-22 | 22 |
| Power of Traction Motor(kw) | 1.1 | 1.1 | 1.5 | 1.5 |
| Heating Power (kw) | 11 | 13 | 19 | 21 |
| Outline Diameter (LxWxH) (mm) | 4800x1900x3500 | 5500x2100x3800 | 6500x2300x4200 | 6500x2500x4600 |
| Weight (TON) | 1.5T | 2T | 2.3T | 2.6T |

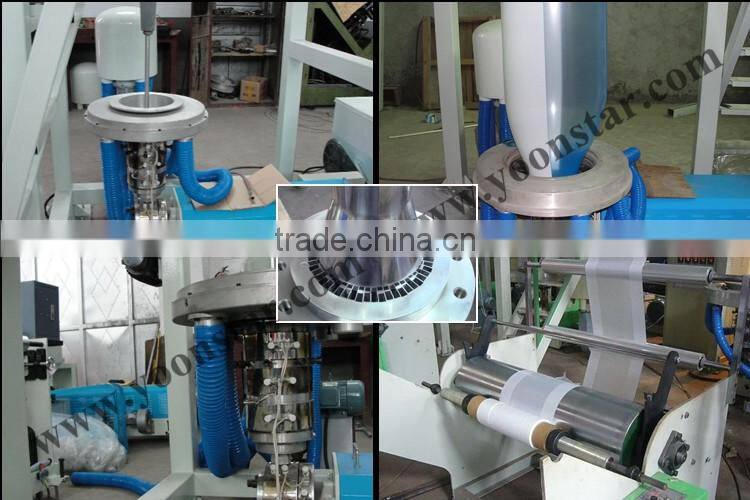

Main Constructions of Film Blowing Machine:
1. Extrusion Machine
2. Three Way Connecter
3. Die Set
4. Cooling Ring
5. Down Frame
6. Traction System
7. Winder

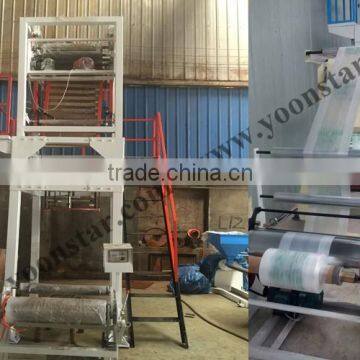

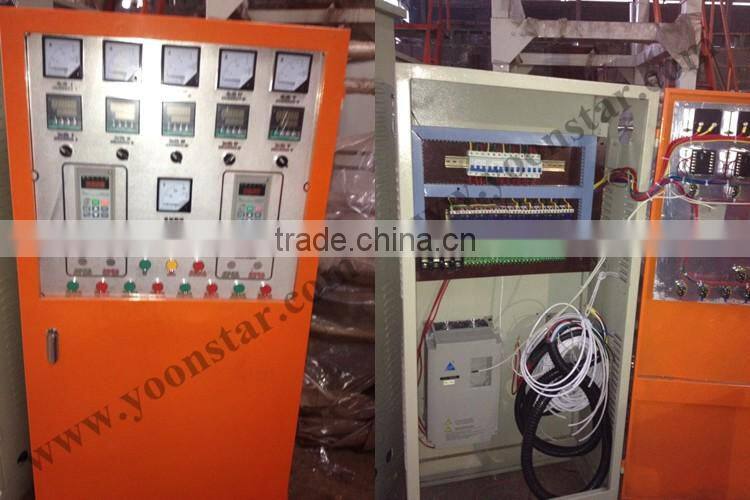

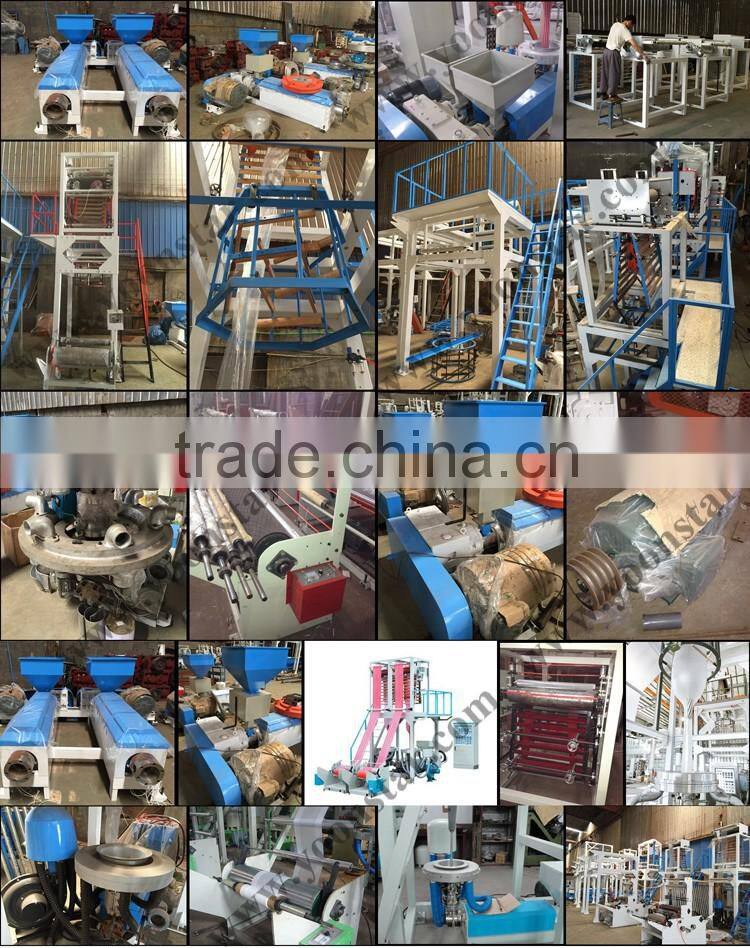

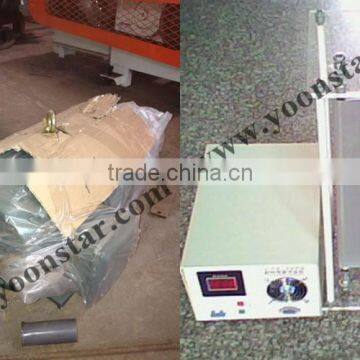

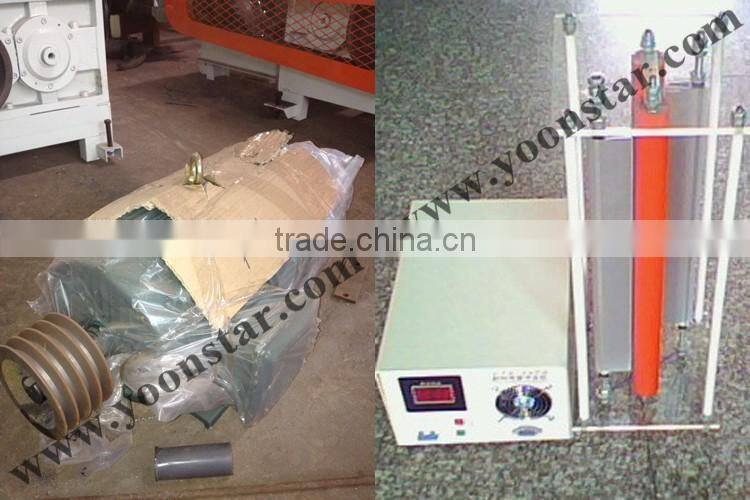

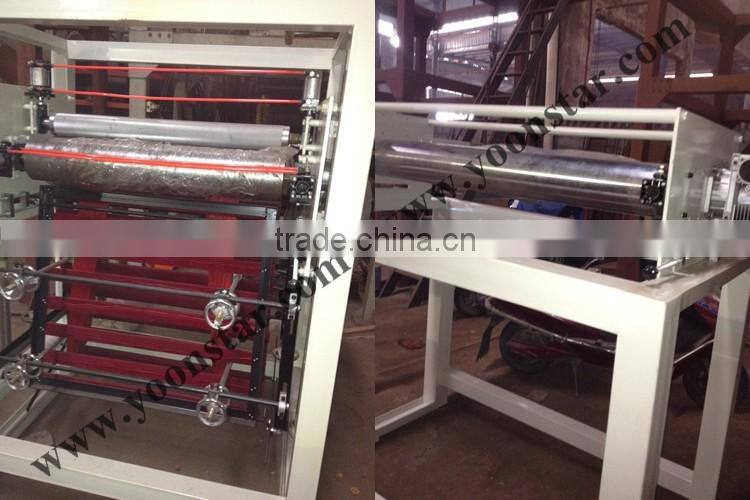

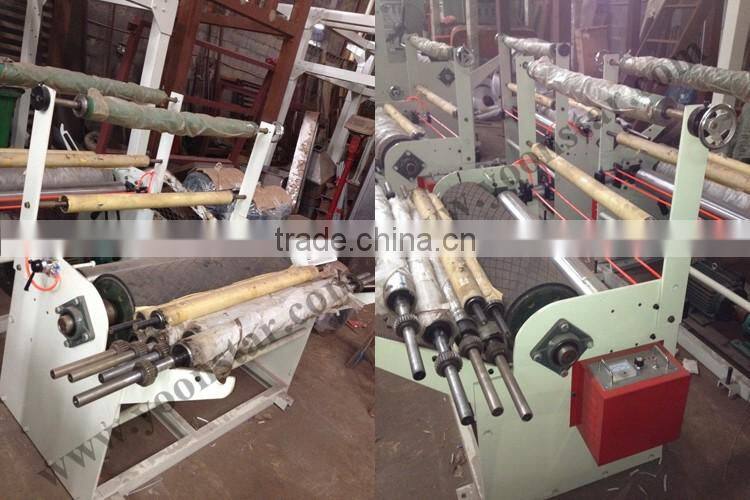

Detailed Pictures

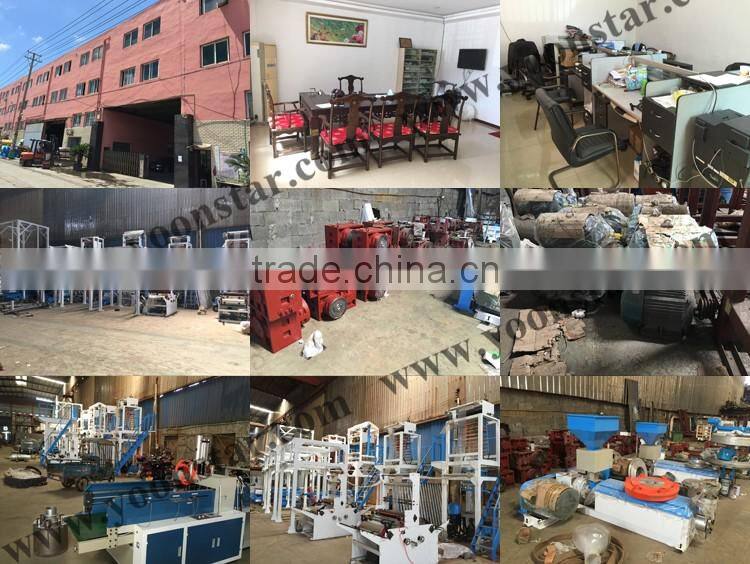

Niingbo Yoonstar Imp. and Exp. Co.,Ltd. is a professional manufacturer of plastic machinery company.
Main Product: multi-layer coextrusion machine,film blowing machine,printing machine and bag making machine and other accerrory machinery.
We work on the quality of the first faith-based service of customer focus,production according to the customers requires,highly praised in the world,we have the right of imports and exports,the products have been sold all of the world.Known in the world,Reliavle by the customer.
Yoonstar is willing the coorperation with you making briliant future.
