SJ-GS Series Multi Layers Co-extrusion Mulch PEFilm Blowing Machine with competitve price
Performance and Characteristics:
This machine set is to satisfy the customer's requirements of high quality,high output film blowing equipment.It adopts the extruder with force feeding function.Precision type ceramic heater,precision type double vents air ring,horizontal type rotary traction system,fully automstic surface friction type double cut double winders,computer concentrate control system etc.advanced technique and equipments.Compare with kindred equitment,it has the advantages such as more compact structure,higher output,better produce quality,less energy consume,easier operation.It can be widely used into various kind of high transparence packing film manufacture,and createthe considerable economic benefit for you.
Main Technical Parameters
| Model | SJ55-GS1300 | SJ60-GS1500 |
SJ65-GS1800 |
SJ70-GS2300 |
| Max.Lay Fat Width(mm) | 1200 | 1400 | 1700 | 2100 |
| Film Layer(s) | 3 | 3 | 3 | 3 |
| Film Thickness (mm) | 0.02-0.12 | 0.02-0.12 |
0.02-0.12 |
0.02-0.12 |
| Max.Output (kg/h) | 200 | 250 | 300 | 400 |
| Raw Material | LLDPE/LDPE/EVA | |||
| Screw Diameter(mm) | Φ45/ Φ55/ Φ45 | Φ50/ Φ60/ Φ50 | Φ60/ Φ70/ Φ60 | Φ75/ Φ90/ Φ75 |
| Screw L/D | 30:1 | 30:1 | 30:1 | 30:1 |
| Screw Max.Speed(r/min) | 100 | 100 | 100 | 100 |
| Extruder Driving Power(kw) | 18.5/30/18.5 | 22/37/22 | 30/45/30 | 55/90/55 |
| Die Structure | IBC Film Tube Inner Cooling System | |||
| Air-ring Structure | Double Vents Ring | |||
| Reversting Haul-Off System | Horizontal ±180° | |||
| Take-off Wide-up Speed(r/min) | 45-120 | |||
| Total Power(kw) | 150 | 280 | 280 | 350 |
| Overall Dimensions(mm) | According to actual packages | |||
| Weight(TON) | ||||
Main Constructions of Film Blowing Machine:
1. Extrusion Machine
2. Three Way Connecter
3. Die Set
4. Cooling Ring
5. Down Frame
6. Traction System
7. Winder

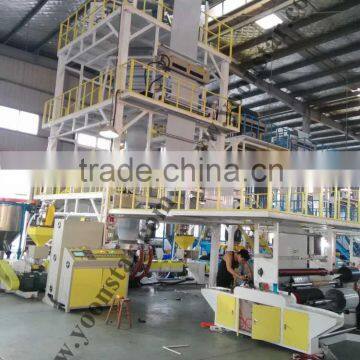

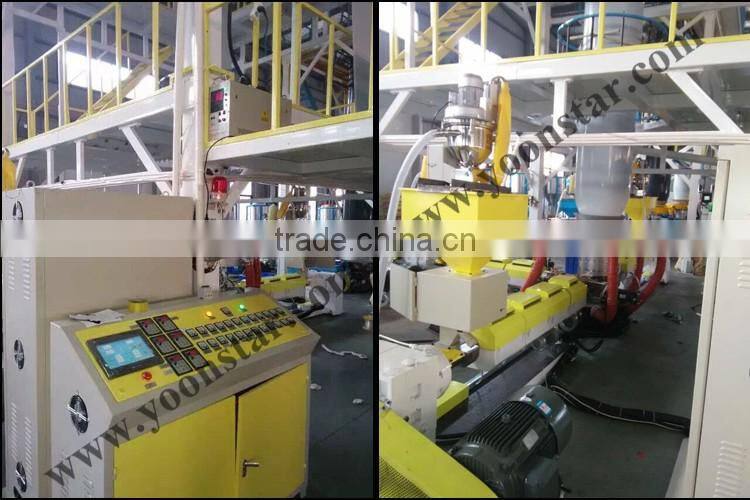

Detailed Pictures
Niingbo Yoonstar Imp. and Exp. Co.,Ltd. is a professional manufacturer of plastic machinery company.
Main Product: multi-layer coextrusion machine,film blowing machine,printing machine and bag making machine and other accerrory machinery.
We work on the quality of the first faith-based service of customer focus,production according to the customers requires,highly praised in the world,we have the right of imports and exports,the products have been sold all of the world.Known in the world,Reliavle by the customer.
Yoonstar is willing the coorperation with you making briliant future.
