Special design twin screw snack extruder, extrision food machine,grain puffing machine with CE sertificate
1.Introduction
(1). Grain puffing machine with CE sertificate can be directly extruded from the extruder, dryer and flavoring machine. We can produce all kinds of snacks and different shapes by adjusting the dies from extruder. Corn snack making machine can take corn, rice, wheat, oat, rye and other grains as materials to produce extruded snacks, with crispy taste and lively shape, corn snack making machine is designed according to market demand. It includes cheese balls, corn curls, corn sticks, coco pops, cereal, kurkure and pellets.
(2).The Machinery and Equipment for Puffing Food CE sertificate is characterized by unique technique, rational configuration, high automation and stable performance. It can finish steaming .extrusion and shaping in one step without boiler.
2.Features
(1).The grain puffing machine with CE sertificate has the advantage of rational design, high automatic degree and accuracy control.
(2).The main body material is stainless steel, which is easy to be cleaned.
(3).The screws material is 38CrMnAl, which is wear-resisting.
(4).Our project is turn-key. We will send our engineer to your factory, install and debug the equipments, and train your operators.
(5).The temperature and rotating speed can be controlled and adjusted.
3.Voltage
In China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ local voltage according to different countries.
4.Machines information

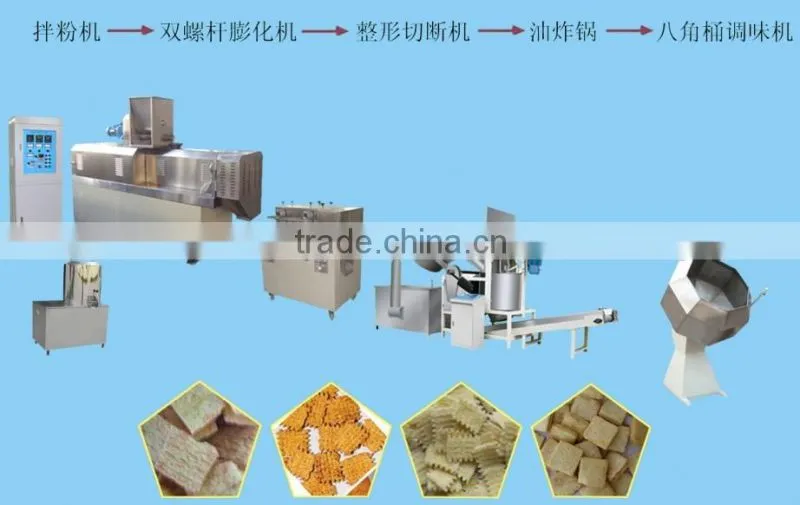

(1)Production process
Raw material→flour mixing →extruding → drying →conveying→ hoisting → flavoring→(packing )
(2)Device configuration
mixer→screw conveyor → extruder→air conveyor→dryer→flavoring machine→roller→(packing )
5.Technical Parameters:
Model Number |
DXY65-III |
DXY70-III |
DXY85-III |
Voltage |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Installed Capacity |
35kw |
45kw |
35kw |
Power Consumption |
25kw |
30kw |
25kw |
Throughput |
120-150kg/h |
150-200kg/h |
120-150kg/h |
Dimension (L*W*H) |
2.5*0.8*1.8m |
2.5*0.8*1.8m |
2.5*0.8*1.8m |
Packing: inside plastic bag, outside wooden case for Twin screws pet food extruder (Based on the customers' need adopt the wooden case or wooden pellets, etc.)
Transportation: shipping, train, express or what the client need
a. Per-market sale of after-sale question answer;
b. Provide detailed after-sale instruction;
c. Provide the in-door installation, equipment debugging, technical training service;
d. 1 Year complete warranty and life-time maintenance service.
Shandong Dongxuya Machinery and Equipment Co., Ltd is a company specialized in producing twin-screw food extruder, single screw extruder, microwave roasting and sterilization equipments, etc. While based upon domestic market, the company opens and exploits market abroad positively. Until now, our products have been exported many counties and regions, including Russia, Europe, Africa, Korea, Indonesia, UZ (Uzbekistan) and the market share increases gradually year by year. Dongxuya will continue to be aggressive, creative and make a contribution to our country’s food industry development with peers home and abroad.
