China supplier RC One Way Clutch Needle Roller Bearing RC040708

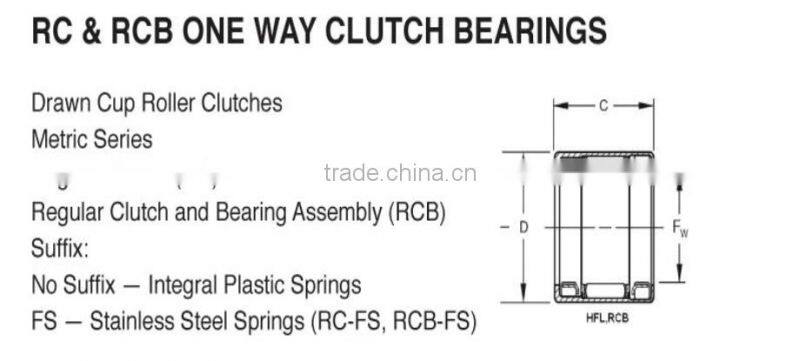

Drawn Cup Roller Clutch
Overview: Drawn cup needle roller cluches are similar to drawn cup needle roller bearingsin design; however they allow free lotation in one direction. These designs use the same small radial section as drawn cup needle roller bearings and are offered as clutch-only units or as clutch and bearing assemblies.
* Size: 3.2mm--35mm (0.125in--1.378in)bore
* Markets: Office equipment, paper-towel dispensers, exercise equipment, appliances and two-speed gearboxes
* Features: Compact, lightweight and operate directly on a hardened shaft
* Benefits: Installation is easily accomplished with a simple press fit
CHANGZHOU UBT RC ONE WAY CLUTCH DESCRIPTION
| RC ONE WAY CLUTCH | ||||
| DIMENSIONS | PART NUMBER | TORQUE(N.m) | SHAFT(RPM) | WEIGHT(g) |
| INCH | ||||
| 0.1250 x 0.2810 x 0.2500 | RC02 | 0.323 | 34000 | 1.00 |
| 0.2500 x 0.4375 x 0.5000 | RC040708 | 3.02 | 20000 | 3.32 |
| 0.3750 x 0.6250 x 0.5000 | RC061008 | 5.45 | 18000 | 7.23 |
| 0.3750 x 0.6250 x 0.5000 | RC061008-FS | 5.45 | 18000 | 7.09 |
| 0.5000 x 0.7500 x 0.5000 | RC081208 | 8.85 | 17000 | 9.60 |
| 0.5000 x 0.7500 x 0.5000 | RC081208-FS | 8.85 | 17000 | 9.36 |
| 0.6250 x 0.8750 x 0.6250 | RC101410 | 16.80 | 14000 | 13.14 |
| 0.6250 x 0.8750 x 0.6250 | RC101410-FS | 16.80 | 14000 | 14.62 |
| 0.7500 x 1.0000 x 0.6250 | RC121610 | 23.30 | 12000 | 16.52 |
| 0.7500 x 1.0000 x 0.6250 | RC121610-FS | 23.30 | 12000 | 15.72 |
| 1.0000 x 1.3100 x 0.6250 | RC162110 | 49.60 | 8700 | 25.62 |
| 1.0000 x 1.3130 x 0.6250 | RC162110-FS | 49.60 | 8700 | 26.00 |
CHANGZHOU UBT RC ONE WAY CLUTCH
CHANGZHOU UBT RC ONE WAY CLUTCH
1.Neutral packing (neutral plastic bag+ neutral carton+ Plywood/Iron pallets)
2.Custom packing (with logo or barcode according to clients’ requirement)
CHANGZHOU UBT RC ONE WAY CLUTCH
Q: I have a urgent order , and want to find a good supplier in short time ,what should i do ?A: Please send your inquiry to me ,and tell me ,the model ,quantity ,material ,package ,precision ,you need ,i will give you a quick response.
Q: How can i get a price with a discount ?A: Discount according to orders .Bigger order ,less money every bearing will cost ,then discount will be bigger .
Q: I have a trial order ,the quantity is little ,could you manufacturing it for me ?A: Please contact me ,i will tell you the MOQ.If you also need we design the single box for you ,we could make it for you ,and the extra cost of the order will return you by next official order.
Q: I don’t know your factory before ,could you tell me which company you are cooperating now ? I want to get to know more about your factory?A: Sorry ,this is our company regulation :we should not let the information of our customer out ,in the same time ,we also keep your information confidential.If you want to know more information ,you could get some free sample from our factory or visit factory if you have the time .
Q: Does your company could accept D/P or D/A payment terms?A: The payment terms of our company is :30% deposit by T/T or West Union ,70 % balance against the copy of B/L.
Q:Now i have a important order ,the quality must be good ,and my customer will test the goods when receive it ,the quality must be good ,can i trust you ?
A:Our manufacturing factory was founded over 10 years. With so many year professional experience, if you need some certificate to show for your customer, pls inform us. We belive could help u to enlarge your market!
CHANGZHOU UBT RC ONE WAY CLUTCH
CHANGZHOU UBT RC ONE WAY CLUTCH
